Digital Multi-Phase Buck Controller
CHL8102/03/04/13
FEATURES
Dual output 2/3/4+1-phase PWM Controller
(CHL8102/03/04) and single output 3-phase PWM
Controller (CHL8113)
Easiest layout and fewest pins in the industry
Footprint compatible with CHL8325A/B (CHL8103/4)
Fully supports Intel® VR12 (CHL8103/04/13) and
AMD® SVI with dual OCP & programmable
addressing (CHL8103/04)
I2C interface for configuration & telemetry
Pin programmable I2C address (CHL8103/04/13)
Overclocking support with I2C voltage override and
Vmax setting
Flexible I2C bus security features
I2C security enable pin (CHL8103/04/13)
Independent loop switching frequencies from
200kHz to 1.2MHz per phase
IR Efficiency Shaping with Dynamic Phase Control
(DPC)
1-phase & Active Diode Emulation modes for light
load efficiency
IR Adaptive Transient Algorithm (ATA) on both loops
minimizes output bulk capacitors and system cost
Per-Loop Fault Protection: OVP, UVP, OCP
Thermal Protection (OTP) and VRHOT# flag
(CHL8103/04/13)
Multiple time programmable (MTP) memory for
custom configuration
Compatible with IR ATL and 3.3V tri-state Drivers
3.3V +10%/-15% supply voltage; 0ºC to 85ºC
operation
Pb-Free, RoHS, QFN packages
DESCRIPTION
The CHL8102/03/04 are dual-loop, digital multi-phase
buck controllers designed for CPU voltage regulation.
The CHL8113 is a single-loop, digital multiphase buck
controller ideal for Server DDR memory voltage regulation.
They are fully compliant with the Intel® VR12 and AMD®
SVI (CHL8103/04) specifications.
The CHL8102/03/04/13 includes IR Efficiency Shaping
Technology to deliver exceptional efficiency at minimum
cost across the entire load range. IR Dynamic Phase Control
adds/drops active phases based upon load current and can
be configured to enter 1-phase operation and diode
emulation mode automatically or by command.
IR’s unique Adaptive Transient Algorithm (ATA), based on
proprietary non-linear digital PWM algorithms, minimizes
output bulk capacitors and Multiple Time Programmable
(MTP) storage saves pins and enables a small package size.
Device configuration and fault parameters are easily
defined using the IR Digital Power Design Center (DPDC)
GUI and stored in on-chip MTP.
The CHL8102/03/04/13 provides extensive OVP, UVP, OCP
and OTP fault protection and the CHL8103/04/13 includes
thermistor based temperature sensing with VRHOT signal.
The CHL8102/03/04/13 includes numerous features like
register diagnostics for fast design cycles and platform
differentiation, truly simplifying VRD design and enabling
fastest time-to-market (TTM) with “set-and-forget”
methodology.
PIN DIAGRAM
IRTN4 (CHL8104)/
NC (CHL8103)
ISEN4 (CHL8104)/
NC (CHL8103)
IRTN_L2
32
IRTN 1
ISEN 1
IRTN 2
ISEN 2
IRTN 3
40
RCSP
RCSM
1
2
3
4
5
6
7
8
9
10
11
1
39
38
37
36
35
ISEN 3
34
33
31
30
29
28
27
RCSP_L2
RCSM_L2
VCC
VSEN_L2
VRTN_L2
PWM_L2
PWM4 (CHL8104)/
NC (CHL8103)
PWM3
PWM2
PWM1
APPLICATIONS
Intel® VR12 & AMD® SVI based systems
High Performance Desktops CPU VRs
Value Servers CPU & DDR Memory VRs
VPGM2
VSEN
VRTN
RRES
TSEN1
V18A
VR_READY
1
/
PWRGD
2
VR_READY_L2
1
/
PWROK
2
CHL8103/4
40 Pin 6x6 QFN
Top View
ISEN_L2
26
25
24
23
22
21
20
Intel Mode
2
AMD Mode
41
GND
12
13
14
15
16
17
18
19
SV_ALERT
1
/NC
2
SV_DAT
1
/SVD
2
SMB_DAT
ADDR/PROT/EN_L2
SV_CLK
1
/SVC
2
SMB_CLK
VR_HOT#
ENABLE

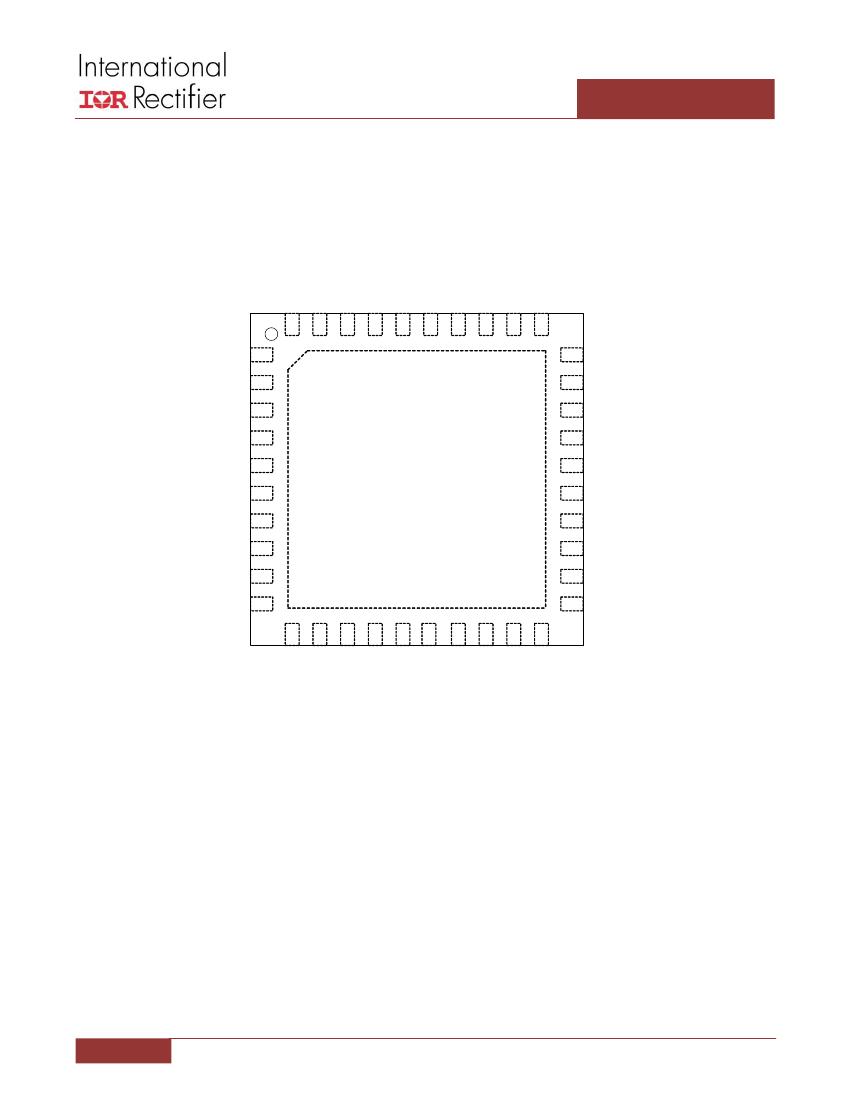

Figure 1: CHL8103/04 Package Top View
1
August 28, 2013 | FINAL | V1.09
VINSEN
TSEN2
