Dual Output Digital Multi-Phase Controller
IR3567A
FEATURES
Dual output 6+2 phase PWM Controller
Easiest layout and fewest pins in the industry
Fully supports AMD® SVI1 & SVI2 with dual
OCP and Intel® VR12
Overclocking & Gaming Mode
Switching frequency from 200kHz to 2MHz
per phase
IR Efficiency Shaping Features including
Dynamic Phase Control and Automatic Power
State Switching
Programmable 1-phase operation for Light
Loads and Active Diode Emulation for Very
Light Loads
IR Adaptive Transient Algorithm (ATA) on both
loops minimizes output bulk capacitors and
system cost
Auto-Phase Detection with auto-compensation
Per-Loop Fault Protection: OVP, UVP, OCP,
OTP, CFP
I2C/SMBus/PMBus system interface for
telemetry of Temperature, Voltage, Current &
Power for
both loops
Multiple Time Programming (MTP) with
integrated charge pump for easy custom
configuration
Compatible with IR ATL and 3.3V tri-state
Drivers
+3.3V supply voltage; -40°C to 85°C ambient
operation
Pb-Free, RoHS, 7x7mm, 56-pin, 0.4mm pitch
QFN

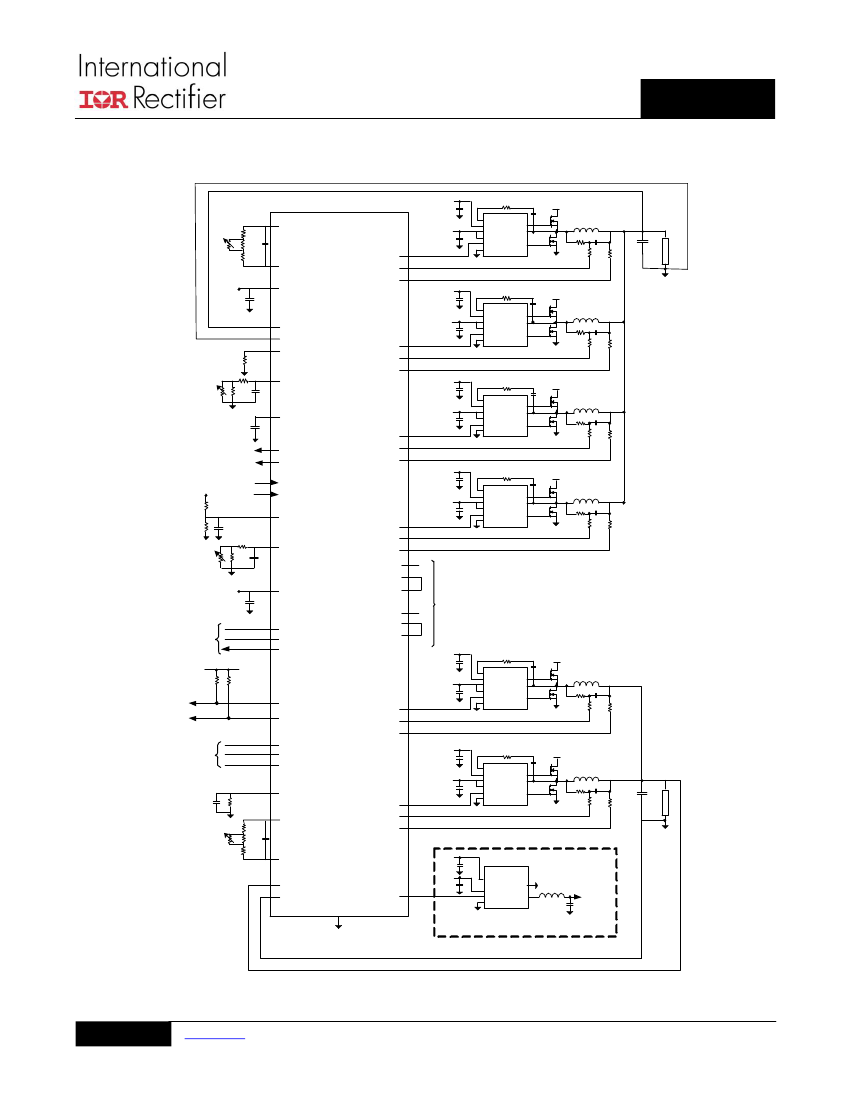

DESCRIPTION
The IR3567A is a dual-loop digital multi-phase buck
controller designed for CPU voltage regulation and is
fully compliant with AMD® SVI1 & SVI2 and Intel
©
VR12 specifications.
The IR3567A includes IR’s Efficiency Shaping
Technology to deliver exceptional efficiency at
minimum cost across the entire load range. IR Variable
Gate Drive optimizes the MOSFET gate drive voltage
based on real-time load current. IR’s Dynamic Phase
Control adds/drops active phases based upon load
current and can be configured to enter 1-phase
operation and diode emulation mode automatically or
by command.
IR’s unique Adaptive Transient Algorithm (ATA), based
on proprietary non-linear digital PWM algorithms,
minimizes output bulk capacitors and Multiple Time
Programmable (MTP) storage saves pins and enables
a small package size. Device configuration and fault
parameters are easily defined using the IR Digital
Power Design Center (DPDC) GUI and stored in on-
chip MTP.
The IR3567A provides extensive OVP, UVP, OCP and
OTP fault protection and includes thermistor based
temperature sensing with VRHOT signal.
The IR3567A includes numerous features like register
diagnostics for fast design cycles and platform
differentiation, simplifying VRD design and enabling
fastest time-to-market (TTM) with “set-and-forget”
methodology.
APPLICATIONS
AMD® SVI1 & SVI2, Intel® VR12 based systems
Desktop & Notebook CPU VRs
High Performance Graphics Processors

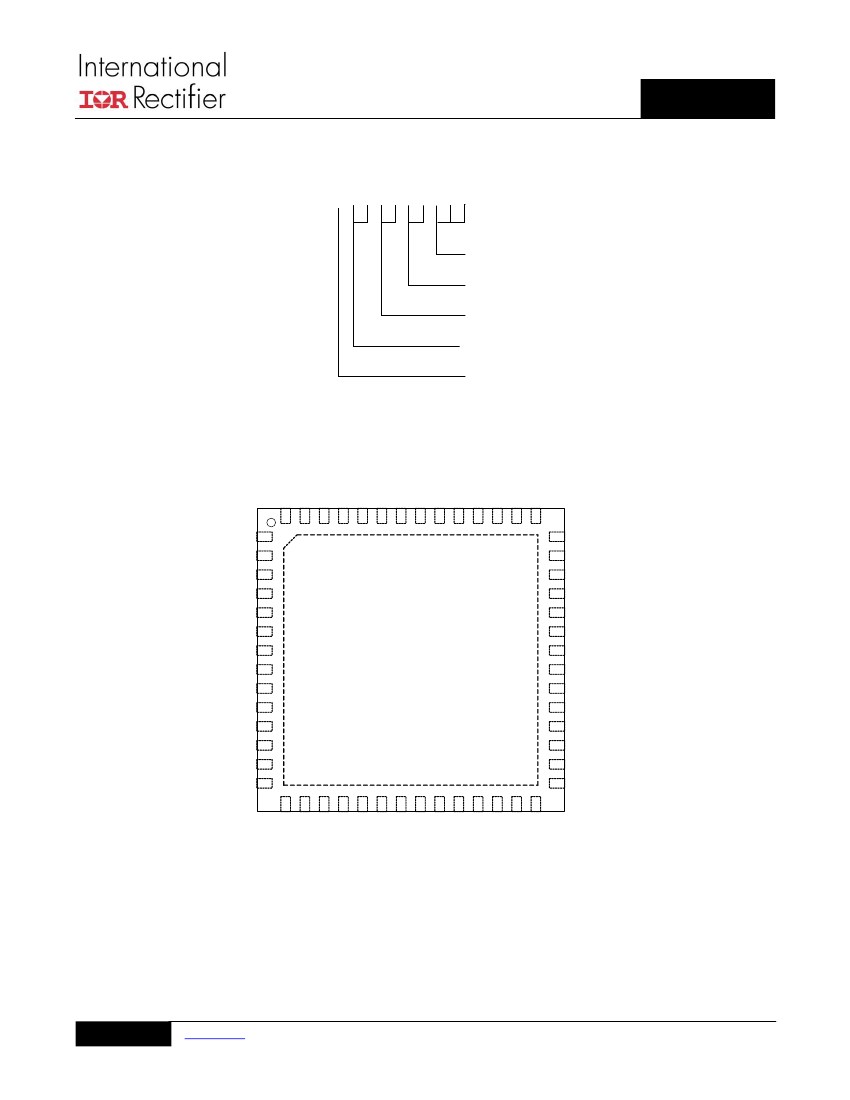

ORDERING INFORMATION
Base Part
Number
IR3567A
IR3567A
IR3567A
Package Type
Form
QFN 7 mm x 7 mm
QFN 7 mm x 7 mm
QFN 7 mm x 7 mm
Tape and Reel
Tape and Reel
Tray
Standard Pack
Quantity
3000
3000
2600
Orderable
Part Number
IR3567AMxxyyTRP
IR3567AMTRPBF
IR3567AMTYPBF
1
Notes:
1.
Customer Specific Configuration File, where xx = Customer ID and yy = Configuration File (Codes assigned by IR Marketing).
1
www.irf.com
| © 2013 International Rectifier | Product Brief |
October 1, 2013 | V3.04
