1SSA237104R3100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1SSA237104R3100

1SSA237104R3100: DescriptionRectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Socket; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric Compare View All

1SSA237104R3100 Overview

Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Socket

1SSA237104R3100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1SSA
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

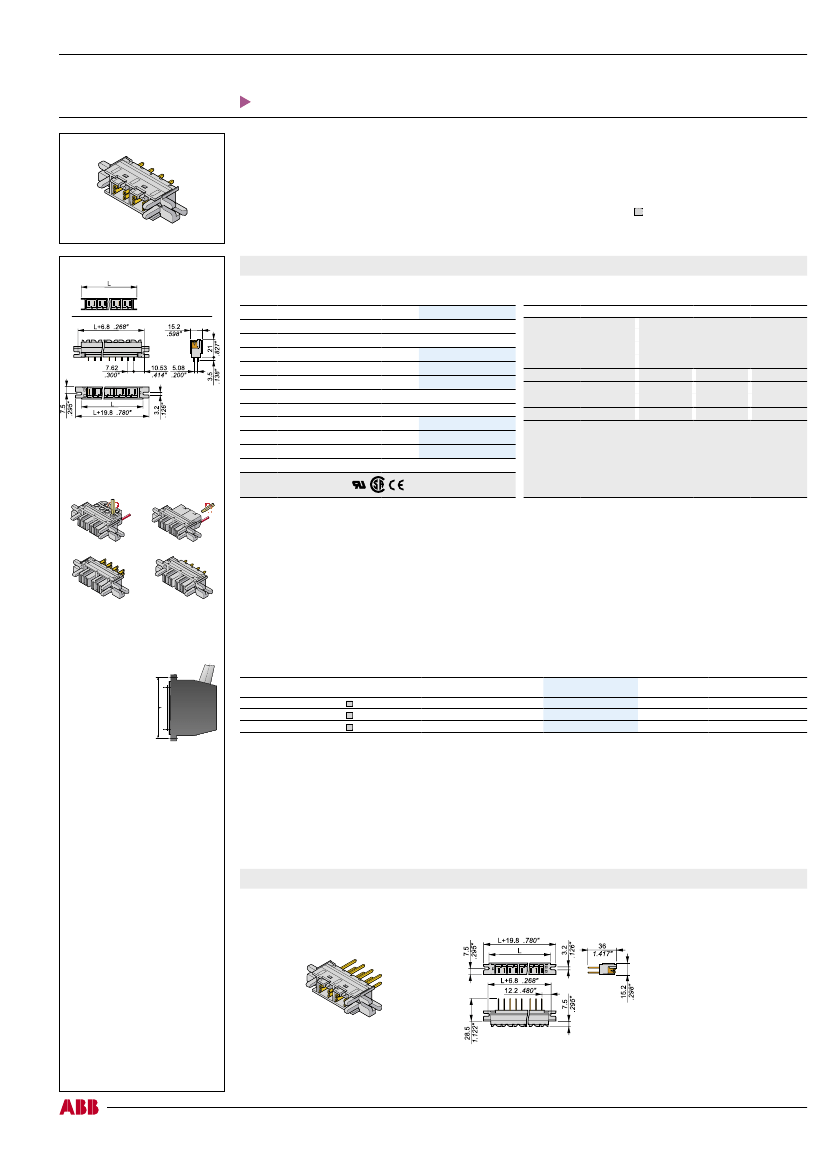

L 237 100

Expert Range

Power connectors

0.8 x 1 x 3.5 mm

.031" x .039" x .138"

Male socket.

Plug soldered on P.C.B.

Modular mounting (panel or through panel mounting).

P.C.B. thickness ≤ 2.4 mm

.094"

P.C.B. holes Ø 1.5 mm

.059"

Body : UL94 V0 - PC

Grey

Spacing 7.62 mm

.300"

without ﬂange

Ordering details

N. Poles

Weight kg

Packaging

L. mm

Order code

Without ﬂange :

0.0083

39.90

0.0136

55.10

0.0210

70.40

Other numbers of poles, consult us

With ﬂanges :

0.0105

59.70

0.0190

74.90

0.0245

90.20

Other numbers of poles, consult us

Technical data

IEC

Wire size

CSA

1SSA

237 104

R0100

1SSA

237 106

R0100

1SSA

237 108

R0100

with ﬂanges

1SSA

237 104

R3100

1SSA

237 106

R3100

1SSA

237 108

R3100

Socket L 237 100

compatible with :

Rated voltage

Rated current

Short-circuit current

Rated wire size / Gauge

Storage temperature range

Insulation resistance

Wire stripping length

Recommended screwdriver

Recommended torque

Protection

380 V

25 A

300 V

15 A

300 V

20 A

-20 ~ +80 °C

≥ 10

Ω

L 207 200

L 207 400

L 217 200

L 237 200

Accessories

Rep.

Description

Housing

grey

4 poles

6 poles

8 poles

Type

Order code

1SSA

299 004

R0100

1SSA

299 004

R0200

1SSA

299 004

R0300

L. mm

50.30 mm

65.50 mm

80.80 mm

Packaging

Weight kg

Other versions, please consult us :

Male plug. Wire Wrapping.

L 227 100

with ﬂanges

P200081

1SSA237104R3100 Related Products

	1SSA237104R3100	1SSA237106R3100	1SSA237108R0100	1SSA237108R3100	1SSA237104R0100	1SSA237106R0100
Description	Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Socket	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Socket	Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal, Socket	Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal, Socket	Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Socket	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Socket
Reach Compliance Code	compli	compli	compli	compli	compli	compli
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	1SSA	1SSA	1SSA	1SSA	1SSA	1SSA
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	6	8	8	4	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
