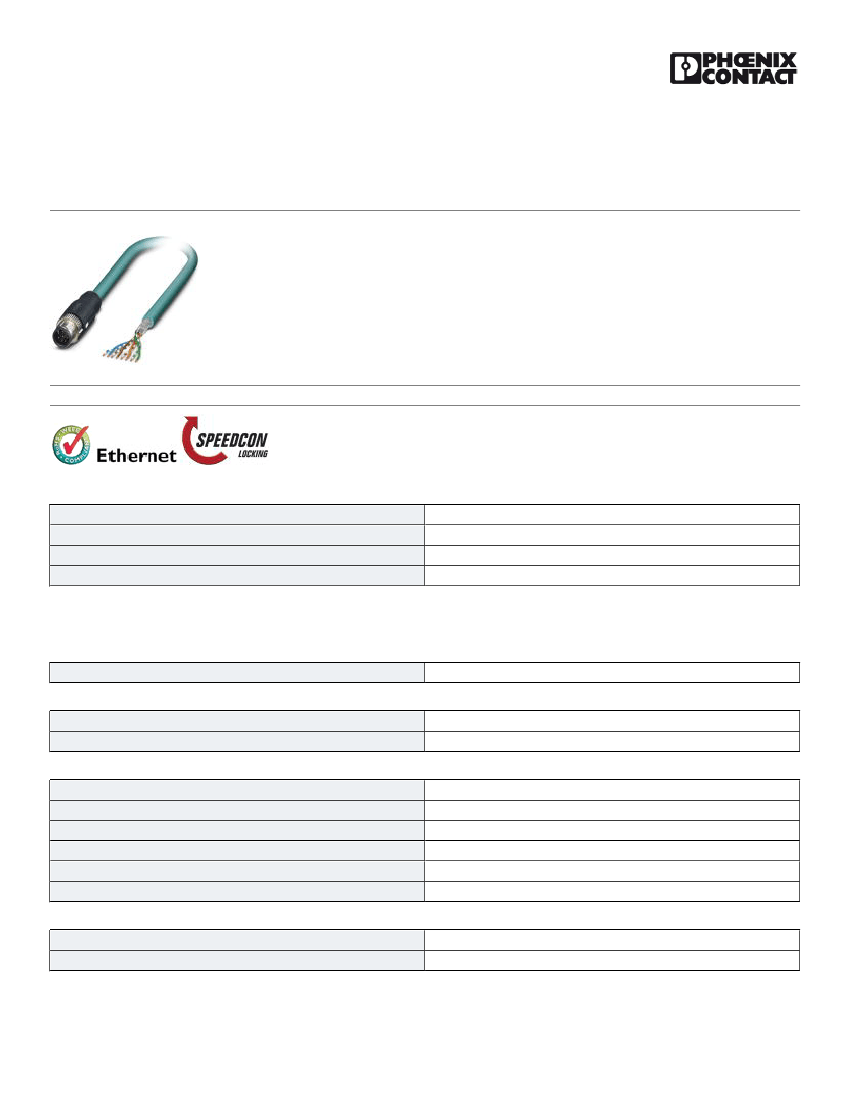

Network cable - NBC-MS/10,0-94B SCO - 1407407
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Network cable, Ethernet CAT5 (1 Gbps), Ethernet CAT5e (1 Gbps), 8-position, PUR, water blue RAL 5021,
shielded, Plug Straight M12 SPEEDCON / IP67, Coding: A, on Free cable end, Cable length: 10 m
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
500.0 GRM
85444210
Poland
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Degree of protection
IP65
IP67
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
2A
30 V
8
Ethernet CAT5 (IEC 11801:2002), 1 Gbps
Ethernet CAT5e (TIA 568B:2001), 1 Gbps
M12 connector IEC 61076-2-101
Characteristics head 1
Head design
No. of positions (pin connector pattern)
Plug Straight M12 SPEEDCON / IP67
8
2/14/14 Page 1 / 7
https://www.phoenixcontact.com/us/products/1407407
Network cable - NBC-MS/10,0-94B SCO - 1407407
Technical data
Characteristics head 1
Coding
Color
Material (component)
A (Standard)
black
CuZn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Contact resistance
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
≤ 5 mΩ
≥ 100 MΩ
≥ 100
0.4 Nm
-25 °C ... 90 °C
Characteristics head 2
Head design
Free cable end
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Twisted pairs
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Ethernet, flexible, CAT5e
94B
20963 (80 °C / 60 V)
Ethernet CAT5 (IEC 11801:2002), 1 Gbps
Ethernet CAT5e (TIA 568B:2001), 1 Gbps
4x2xAWG26/7; SF/UTP
4x 2x 0.14 mm²
26
7x 0.16 mm
0.98 mm
0.25 mm
white/blue-blue, white/orange-orange, white/green-green, white/brown-
brown
2 cores to the pair
4 pairs
Aluminum-coated foil, tinned copper braided shield
70 %
water blue RAL 5021
1 mm
6.4 mm ± 0.2 mm
25.6 mm
51.2 mm
2/14/14 Page 2 / 7
https://www.phoenixcontact.com/us/products/1407407
Network cable - NBC-MS/10,0-94B SCO - 1407407
Technical data
Cable
Tensile strength short-term/long-term
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Working capacitance
Wave impedance
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
≤ 100 N
47 kg/km
PUR
PE
Bare Cu litz wires
≥ 500 MΩ*km
≤ 290 Ω (per kilometer)
48 nF (At 1 kHz)
100 Ω ± 5 Ω (At 100 MHz)
5.3 ns/m
≤ 100.00 mΩ/m (At 10 MHz)
≤ 100 V
300 V (Outer cable sheath)
700 V (50 Hz, 1 min.)
700 V (50 Hz, 1 min.)
IEC 60332-1-2
According to IEC 60754-1
in accordance with DIN EN 60811-2-1
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
-20 °C ... 80 °C
-20 °C ... 80 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
EC001855
EC001855
2/14/14 Page 3 / 7
https://www.phoenixcontact.com/us/products/1407407
Network cable - NBC-MS/10,0-94B SCO - 1407407
Classifications
ETIM
ETIM 5.0
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501

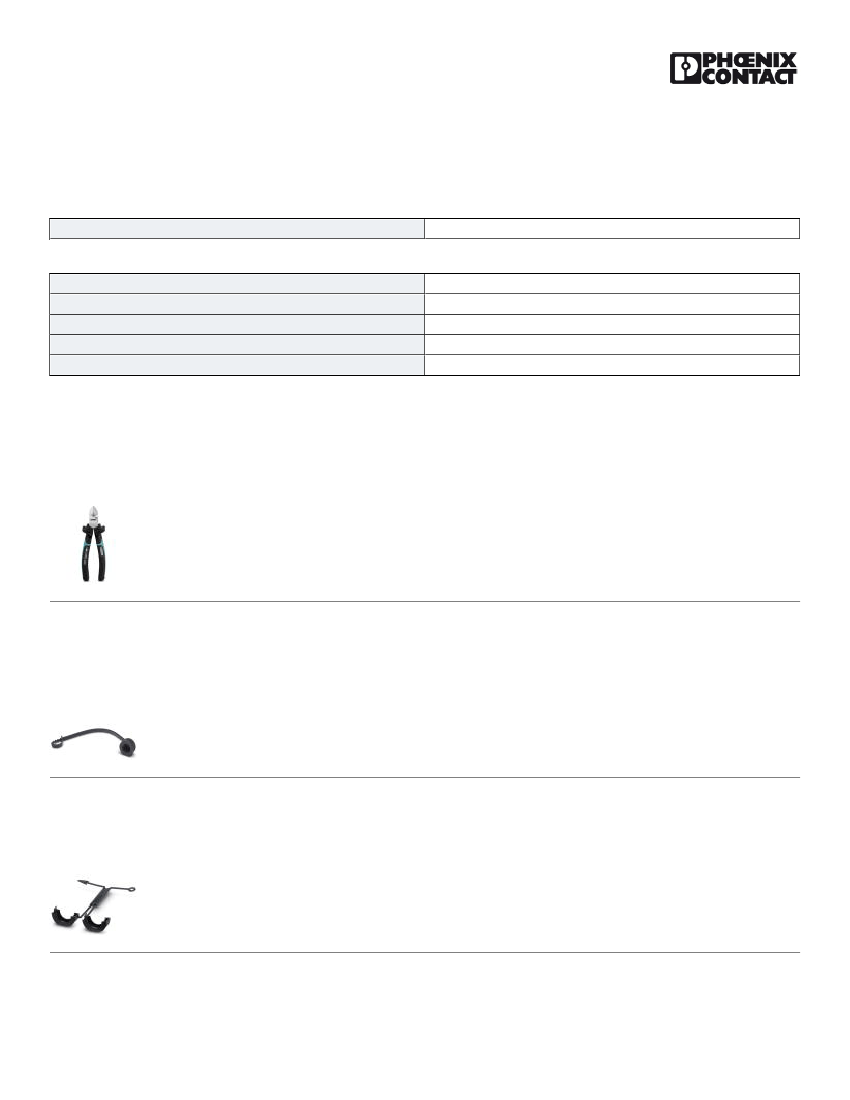

Accessories
Accessories
Cutting tools
Cable-cutting tool - CUTFOX-S VDE - 1212207
Diagonal cutter for copper and aluminum conductors, VDE-tested
Protective cap
Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 sockets
Safety locking
Fuse clip - SAC-M12-EXCLIP-M - 1558988
Fuse clip for the pin side of various M12 sensor/actuator connectors prevents plug-in connections being interrupted
without using a tool
2/14/14 Page 4 / 7
https://www.phoenixcontact.com/us/products/1407407
Network cable - NBC-MS/10,0-94B SCO - 1407407

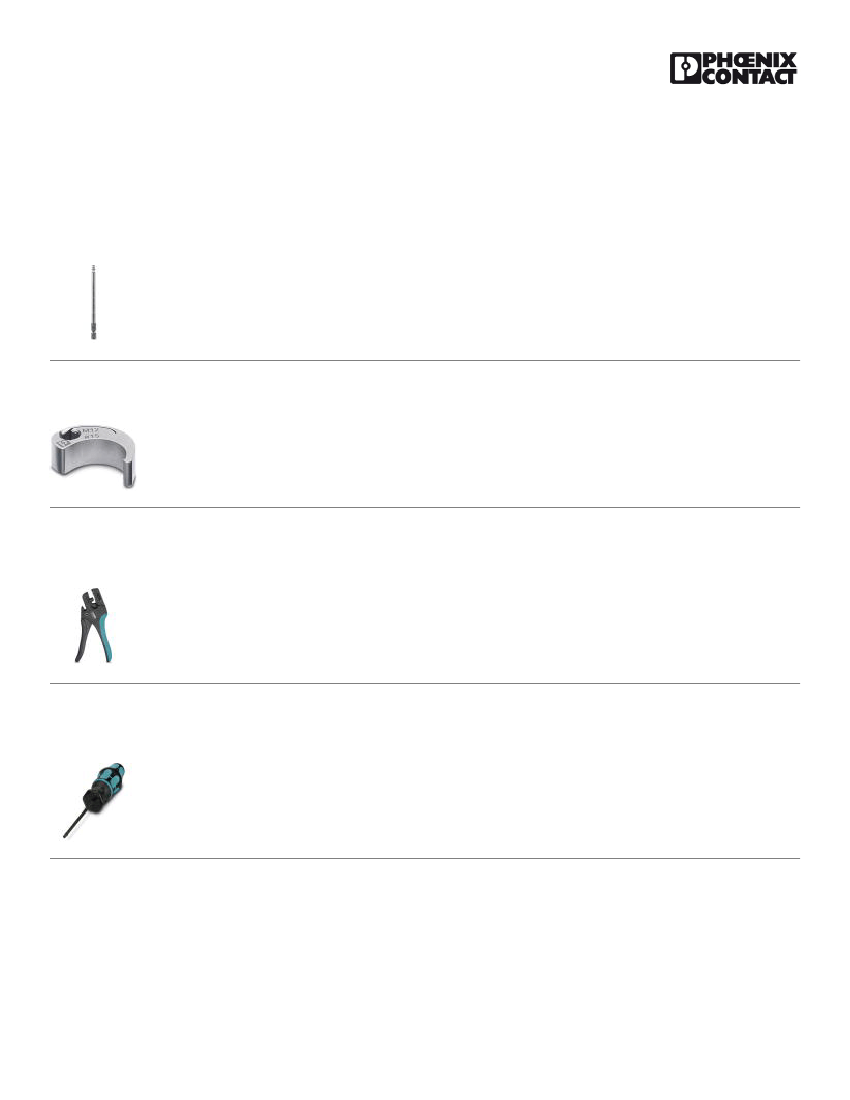

Accessories
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and for M12 connectors with QUICKON fast connection
technology, for 4 mm hexagonal drive
Stripping tool
Stripping tool - WIREFOX 10 - 1212150
Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting
capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
