5 GHz Terrace Diversity Antenna
IDD5250
5 GHz DIrectIonal In-BuIlDInG terrace DIversIty antenna
The widespread use of cellular phones and wireless network applications inside buildings has
increased the need for antenna systems that can provide considerable gain over traditional dipole
antennas.
Laird Technologies’ in-building wireless antennas are particularly applicable in environments
where aesthetics and wide angle coverage are necessary for successful wireless deployment. Their
surprisingly small size allow the antennas to be hidden almost anywhere, providing an invisible
solution for most applications.

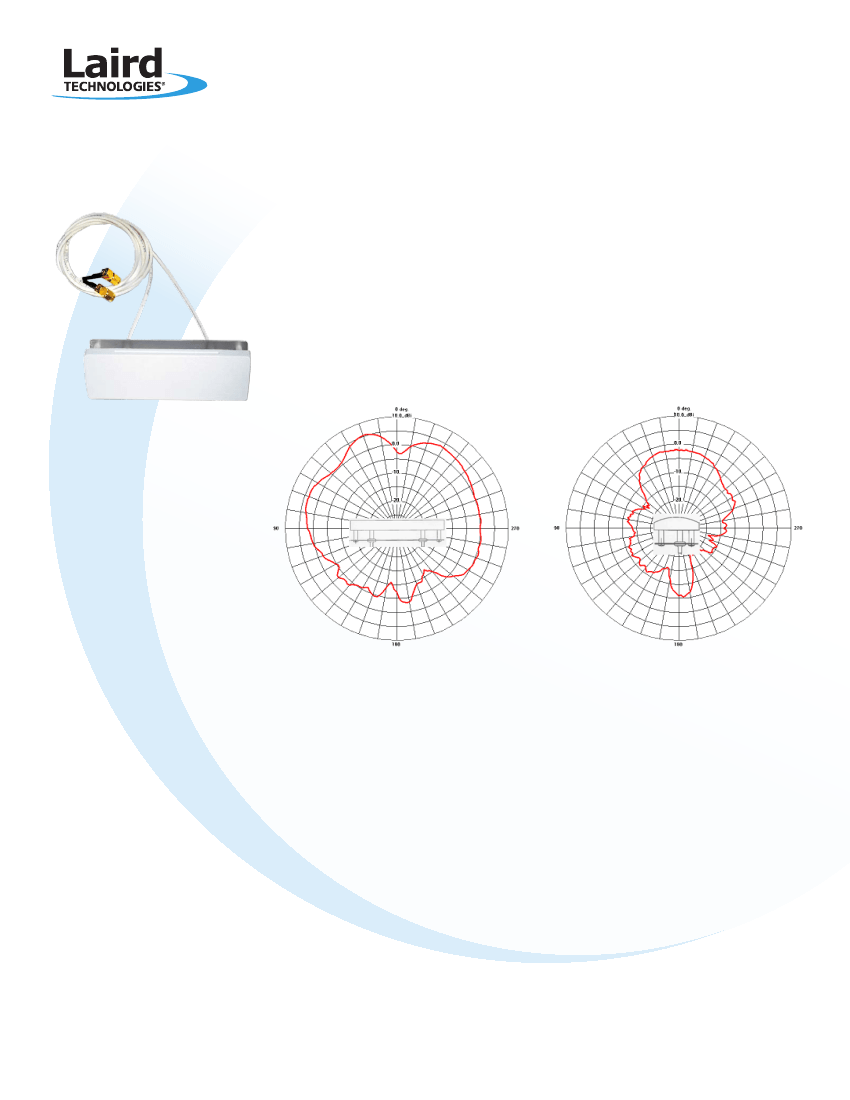

Azimuth Plane
5.57 GHz
Elevation Plane
5.57 GHz
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
5 GHz Terrace Diversity Antenna
Innovative
Technology
for a
Connected
World
IDD5250
MoDeL #
IDD5250-RS36
IDD5250-RSRa36
RefeRence #
caf94585
caf94649
pLenuM RaTeD coax
36" White RG-316
36" White RG-316
connecToR
Rp-SMa x 2
Rp-SMa R.a. x 2
SpecIfIcaTIonS
element Type
frequency Range
peak Gain
polarization
Impedance
Maximum Input power
VSWR (Min. performance)
Dimensions (L x W x H)
Housing
operating/Storage Temperature
1
Microstrip
4.9 – 6 GHz
5 dBi
Linear
50 ohms
50 watts
2.0:1
12.2 x 4.3 x 2.7 cm
aBS
-40º to +70ºc
MountInG optIons
• Wall-mount bracket and screws, Dual-Lock
®
, and L-bracket included
• Indoor Optional Brackets: 2” Indoor Pan/Tilt Mount (IMI-02C)
and 5” Indoor Pan/Tilt Mount (IMI-05C)
IMI-02D
IMI-05D
ANT-DS-IDD5250 0609
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies
materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness,
merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or
consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time,
a copy of which will be furnished upon request. © Copyright 2009 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and
other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third
parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
