PI3HDMI413AE: Description4-Differential Channel, 3:1 Mux/DeMux, DVI/HDMI Compliant Signal Switch based on TMDS Signaling Standard; Categorylogic logic; File Size1MB，8 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI3HDMI413AE Overview

4-Differential Channel, 3:1 Mux/DeMux, DVI/HDMI Compliant Signal Switch based on TMDS Signaling Standard

PI3HDMI413AE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	64
Reach Compliance Code	compli
ECCN code	EAR99
series	3HDMI
JESD-30 code	R-PDSO-G64
JESD-609 code	e3
length	17 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Humidity sensitivity level	1
Number of functions	1
Number of entries	8
Output times	24
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	6.1 mm

Preview

Download Datasheet

View All

PI3HDMI413

4-Differential Channel, 3:1 Mux/DeMux, DVI/HDMI Compliant

Signal Switch based on TMDS Signaling Standard

Features

•

4-Differential Channel 3:1 Mux/DeMux

TMDS Signaling

Data Rate: 1.65Gbps

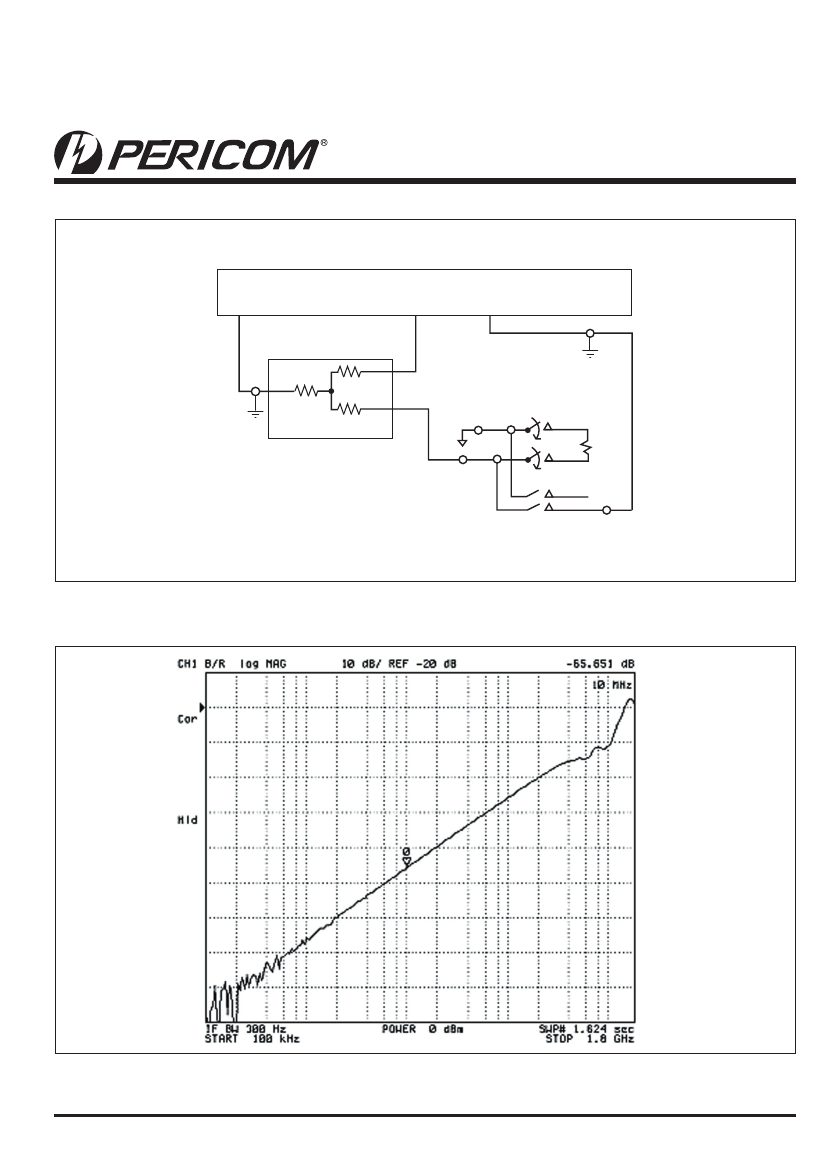

Crosstalk: -30dB@1.65Gbps

Switching speed: 4ns

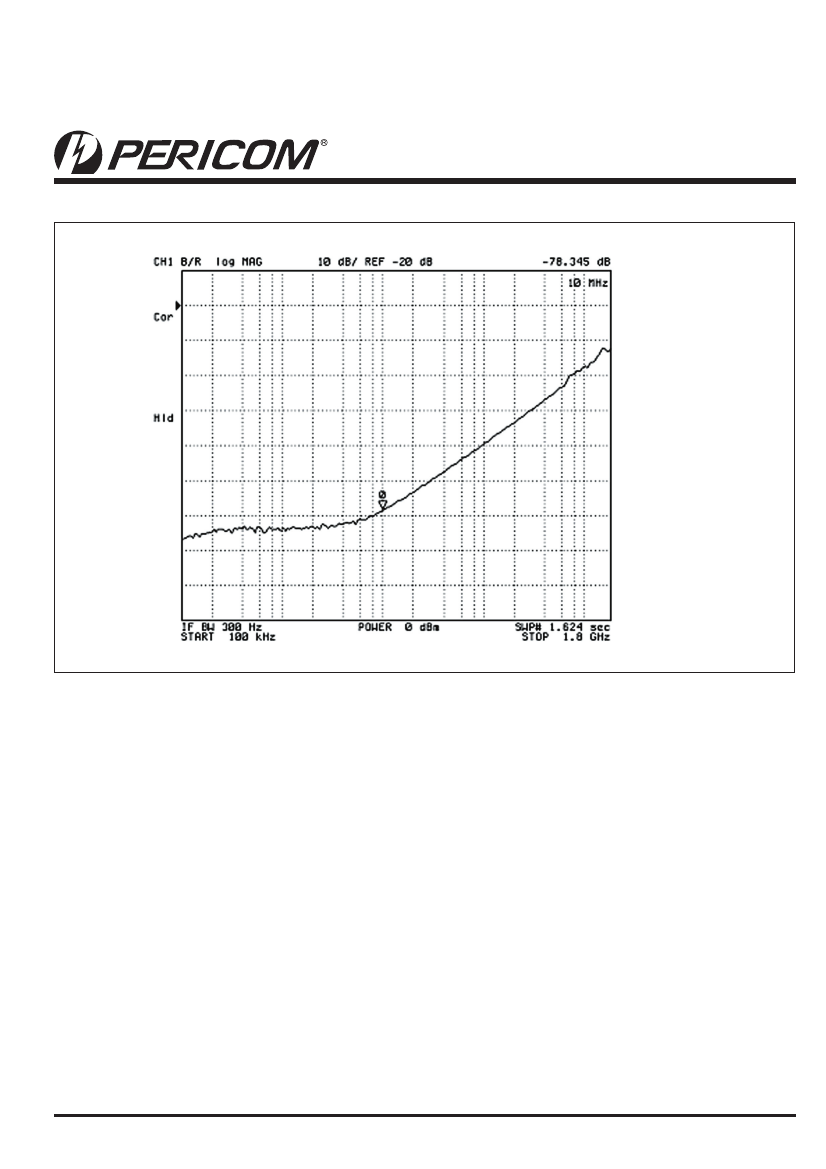

Isolation: -35dB@1.65Gbps

ESD: Data bits @ 8kV HBM, select bit @ 2 kV HBM

Near-Zero Prop Delay: 250ps max.

Low bit-to-bit skew

Hot insertion capable

Enable/Disable Time: 9ns

Bidirectional

Packaging (Pb-free & Green):

64-pin TSSOP (A)

Description

Pericom Semiconductor’s PI3HDMI series of switch circuits are

targeted for high-resolution video networks that are based on DVI/

HDMI standards, and TMDS signal processing. The PI3HDMI413

is a 12- to 4-Differential Channel Mux/DeMux Switch. The device

multiplexes differential signals to one of three corresponding out-

puts. The switch is bidirectional and offers little or no attenuation

of the high-speed signals at the outputs. It is designed for low bit-

to-bit skew and high channel-to-channel noise isolation.

The maximum DVI/HDMI data rate of 1.65Gbps provides the reso-

lution required by the next generation HDTV and PC graphics.

Because of its passive bidirectional feature, this switch can be

used either at the video drivers side or at the receiver side. For PC

graphics applications, the device sits at the drivers side to switch

between multiple display units such as PC LCD monitor, projector,

TV, etc. For consumer video applications, the device sits at the

receiver end to switch between the source components such as

DVD, D-VHS, STB, etc.

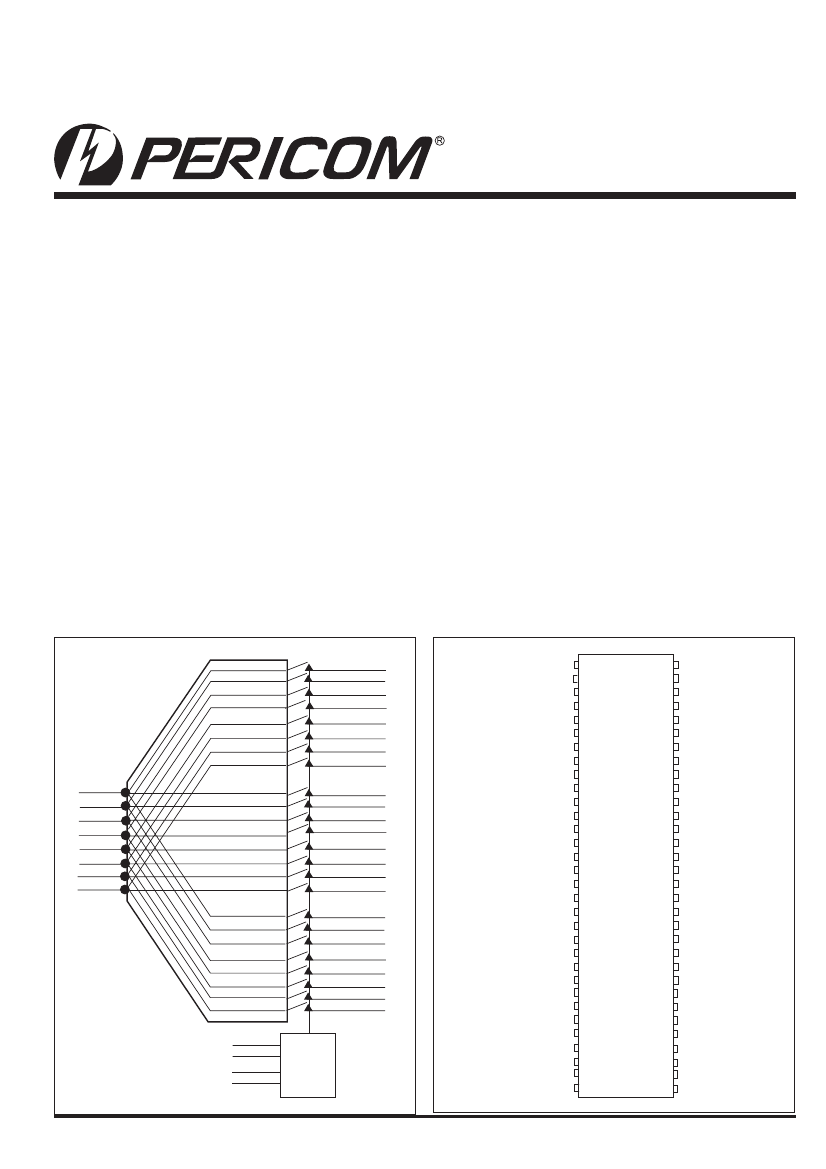

Block Diagram

Pin Description

½½

½½½½½½½

½½½½½

½½

PS8796

11/14/05
