LFXTAL059596REEL datasheet, PDF

Datasheet> All Categories > Passive components> LFXTAL059596REEL

LFXTAL059596REEL: DescriptionCRYSTAL 30.0MHZ 10PF SMD; CategoryPassive components; File Size172KB，1 Pages; ManufacturerIQD; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL059596REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL059596REEL	-	-	View	Buy Now

LFXTAL059596REEL Overview

CRYSTAL 30.0MHZ 10PF SMD

LFXTAL059596REEL Parametric

Parameter Name	Attribute value
type	MHz crystal
frequency	30MHz
frequency stability	±10ppm
frequency tolerance	±15ppm
load capacitance	10pF
ESR (equivalent series resistance)	80 Ohms
Operating mode	basic harmony
Operating temperature	-40°C ~ 85°C
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.079" long x 0.063" wide (2.00mm x 1.60mm)
Height - Installation (maximum)	0.020"（0.50mm）

Preview

Download Datasheet

View All

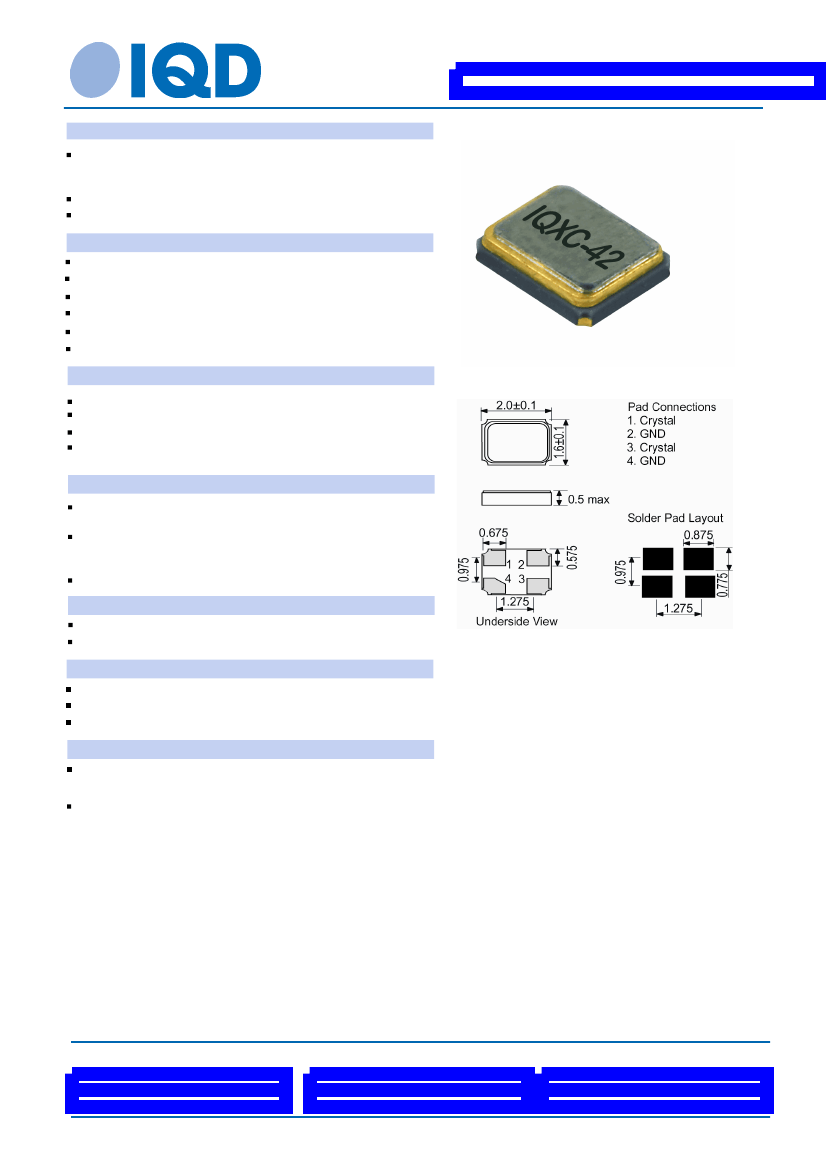

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL059596Reel

Description

2 x 1.6mm SMD crystal

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

IQXC-42

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

30.0MHz

±15.00ppm

±20.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

10.00pF

3pF max

100µW max

80.00Ω max

Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3

mutually perpendicular planes

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 23 May 18 8:37 using Part Data Sheet V1.00015
