LFXTAL059528REEL

Description
CRYSTAL 16.3840MHZ 18PF SMD
CategoryPassive components
File Size277KB,1 Pages
ManufacturerIQD
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL059528REEL Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL059528REEL - - View Buy Now

LFXTAL059528REEL Overview

CRYSTAL 16.3840MHZ 18PF SMD

LFXTAL059528REEL Parametric

Parameter NameAttribute value
typeMHz crystal
frequency16.384MHz
frequency stability±30ppm
frequency tolerance±20ppm
load capacitance18pF
ESR (equivalent series resistance)50 Ohms
Operating modebasic harmony
Operating temperature-40°C ~ 85°C
grade-
Installation typesurface mount
Package/casing4-SMD, no leads
size/dimensions0.197" long x 0.126" wide (5.00mm x 3.20mm)
Height - Installation (maximum)0.039"(1.00mm)

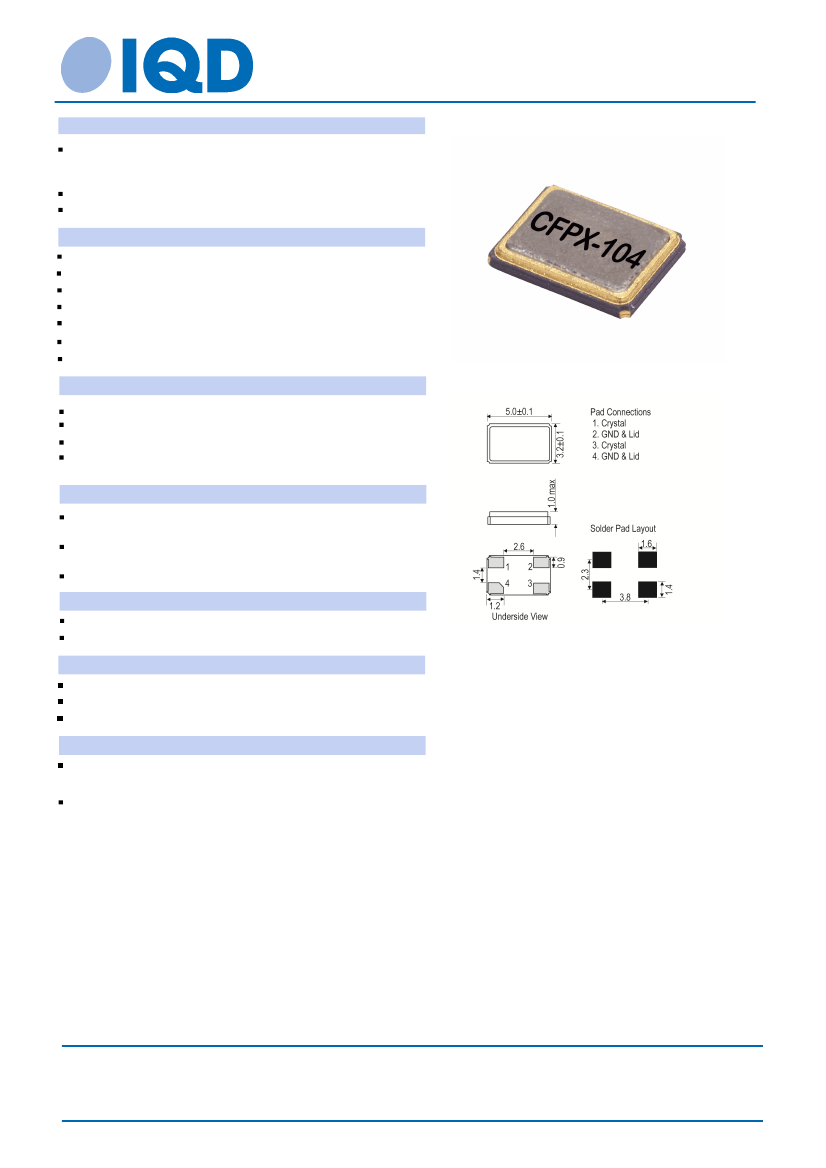

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL059528Reel
Description
Standard 5x3.2mm SMD crystal with four pads.
Ceramic package with a seam sealed metal lid, hermetically
sealed.
Model
CFPX-104
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
16.3840MHz
±20.00ppm
@ 25°C
±
30.00ppm
-40.00 to 85.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
18.00pF
7pF max
100µW max
50.00Ω max
Shock: 1500G, 0.5ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in
3 mutually perpendicular planes, 4 cycles
Storage Temperature Range: -55 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
Au 0.3um~1.0um
260degC 3s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 19 Oct 17 16:37 using Part Data Sheet V1.00015
