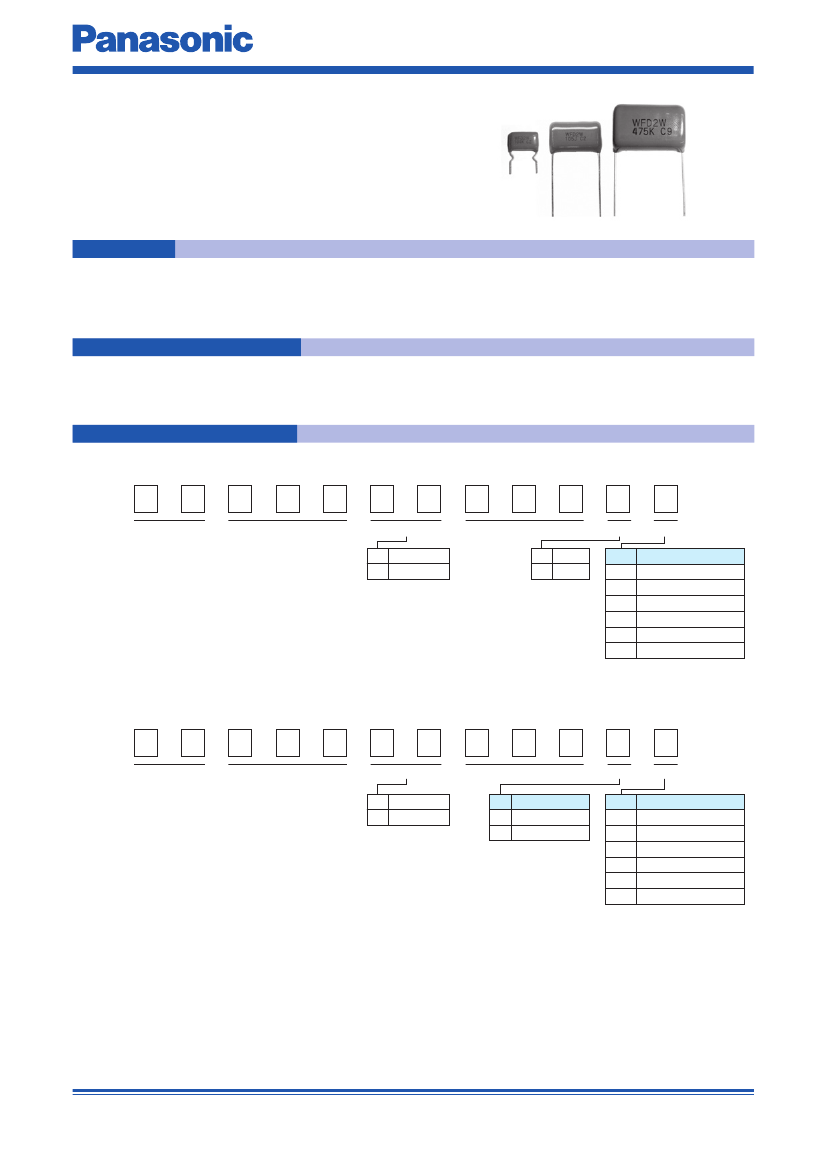

Plastic Film Capacitors
Metallized Polypropylene
Film Capacitor
Type :
ECWFD
Non-inductive construction using metalized Polypropylene
film with flame retardant epoxy resin coating.
Features
●
Small size
●
Low loss
●
Low Hum Sound
●
●
●
Noise
Excellent frequency characteristics
Flame-retardant epoxy resin coating
RoHS directive compliant
Recommended applications
●
Active filter circuit
●
High frequency circuit
Explanation of part number
●
Standard
product
1
2
3
4
5
6
7
8
9
10
11
12
E
C
W
F
Dielectric &
construction
D
Rated voltage
2W
2J
450 V.DC
630 V.DC
Capacitance
J
K
±5 %
±10 %
Cap. Tol.
Code
Blank
B
Q
C
3
4
Suffix
Lead Form
Straight
Crimped lead
Crimped lead
Cut lead
Crimped taping (Ammo)
Odd size taping
Product code
●
Short
lead space product 450 V.DC (0.47 μF, 0.68 μF, 1.0 μF), 630 V.DC (1.0 μF)
1
2
3
4
5
6
7
8
9
10
11
12
E
C
W
F
Dielectric &
construction
D
Rated voltage
2W
2J
450 V.DC
630 V.DC
Capacitance
Code
P
Q
Cap. Tol.
±5 %(J)
±10 %(K)
Suffix 1
Code
1
B
Q
C
3
4
Suffix 2
Lead Form
Straight
Crimped lead
Crimped lead
Cut lead
Crimped taping (Ammo)
Odd size taping
Product code
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Sep. 2017
Plastic Film Capacitors
Specifications
Category temp. range
(Including temperature-rise on unit surface)
450 V.DC
– 40 °C to +110 °C
630 V.DC
– 40 °C to +105 °C
450 V.DC (Derating of rated voltage by 0.62%/°C at more than 85°C Peak to peak
voltage applied on the capacitor should be less than 240 Vp-p, and zero to peak
voltage should be less than 450 Vo-p.
630 V.DC (Derating of rated voltage by 1.0%/°C at more than 85°C Peak to peak
voltage applied on the capacitor should be less than 400 Vp-p, and zero to peak
voltage should be less than 630 Vo-p.
450 V.DC
0.1 μF to 4.7 μF
630 V.DC
0.047 μF to 4.7 μF
±5 %(J), ±10 %(K)
tan
d
<
0.1 % ( 20 °C, 1 kHz )
Between terminals:Rated voltage (V.DC)×150 %, 60 s
C
<
0.33 μF : IR
>
30000 MΩ
450 V.DC
C > 0.33 μF : IR
>
10000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)
C
<
0.33 μF : IR
>
9000 MΩ
630 V.DC
C > 0.33 μF : IR
>
3000 MΩ ∙ μF (20 °C, 500 V.DC, 60 s)
Rated voltage
Capacitance range
Capacitance tolerance
Dissipation factor (tan
d)
Withstand voltage
Insulation resistance (IR)
½
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Dimensions
Straight
T max.
L max.
H max.
Crimped lead
(Suffix B)
L max.
Crimped lead
(Suffix Q)
L max.
Cut lead
(Suffix C)
H max.
H max.
Marking
G max.
F±1.0
Marking
Marking
Marking
4.5±0.5
Unit : mm
Style F
P
H
1
H
0
F
P
0
25 min.
0d±0.05
Copper-clad
steel-wire
4.5±0.5
S±0.8
Type B
S±0.8
Type D
Packaging specifications for bulk package
●
Packing
quantity : 100 pcs./bag
Taping specifications for automatic insertion
●
Taping
style
Style AB
P
Style E
P
H
1
H
1
H
0
F
H
0
F
P
0
P
0
½
Refer to the page of taping specifications.
●
Taping
4.5±0.5
style
Rated
voltage
(V.DC)
Capacitance range
(μF)
0.10 to 0.39
0.47, 0.68, 1.0
0.10 to 0.39
0.47, 0.68, 1.0
0.47 to 2.2
0.047 to 0.22
0.27 to 0.82
1.0
Taping style
AD AS AB B
◯
◯
◯
◯
◯
◯
◯
◯
●
Lead
spacing
Lead spacing
5.0 mm
7.5 mm
7.5 mm
Type
C
D
E
F
Packing
suffix
3
P3/Q3
4
P4/Q4
4
4
4
P4/Q4
Style
AB
E
F
450
ECWFD
630
Ammo
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Sep. 2017
Plastic Film Capacitors
Rating · Dimensions · Quantity
●
Rated
voltage : 450 V.DC, Capacitance tolerance : ±5 %(J), ± 10 %(K),
Dimensions (mm)
H max.
S
Crimped Crimped F Crimped Crimped G
lead
lead
lead max.
Straight lead
(Suffix B) (Suffix Q)
(Suffix B) (Suffix Q)
13.9 13.9
7.5 10.0
14.0 14.0
7.5 10.0
14.1 14.1
7.5 10.0
14.3 14.3
7.5 10.0
–
–
–
14.6 14.6
7.5 10.0
15.0 15.0
7.5 10.0
15.4 15.4
7.5 10.0
15.7 15.7
7.5 10.0
11.2
9.0
9.4
12.4
9.9
10.4
13.9
11.0
11.6
12.5
13.3
14.3
13.7
14.6
15.4
16.4
16.2
14.0
14.4
17.4
14.9
15.4
18.9
16.0
16.6
17.5
18.3
19.3
18.7
19.6
20.4
21.4
16.2
16.0
16.4
17.4
16.9
17.4
18.9
18.0
18.6
19.5
20.3
21.3
20.7
21.6
22.4
23.4
10.0
15.0
15.0
10.0
15.0
15.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
15.0
15.0
15.0
15.0
10.0
15.0
15.0
10.0
15.0
15.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Min. order Q'ty
Taping
Bulk
fd
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.6
0.8
0.8
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
5.0 mm 7.5 mm Straight
Crimped
lead
Part No.
Cap.
(μF)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.47
0.56
0.68
0.68
0.82
1.0
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
L
max.
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
17.5
17.5
12.6
17.5
17.5
12.6
17.5
17.5
17.5
17.5
17.5
25.3
25.3
25.3
25.3
T
max.
4.5
4.6
4.6
4.8
5.0
5.3
5.6
6.0
6.5
5.8
6.2
7.7
6.7
7.2
9.2
7.8
8.5
9.3
10.1
11.1
9.0
9.8
10.7
11.7
ECWFD2W104◻( )
ECWFD2W124◻( )
ECWFD2W154◻( )
ECWFD2W184◻( )
ECWFD2W224◻( )
ECWFD2W274◻( )
ECWFD2W334◻( )
ECWFD2W394◻( )
ECWFD2W474P( )
★
ECWFD2W474Q( )
ECWFD2W474◻( )
ECWFD2W564◻( )
ECWFD2W684P( )
★
ECWFD2W684Q( )
ECWFD2W684◻( )
ECWFD2W824◻( )
ECWFD2W105P( )
★
ECWFD2W105Q( )
ECWFD2W105◻( )
ECWFD2W125◻( )
ECWFD2W155◻( )
ECWFD2W185◻( )
ECWFD2W225◻( )
ECWFD2W275◻( )
ECWFD2W335◻( )
ECWFD2W395◻( )
ECWFD2W475◻( )
1500
1400
1300
1200
1100
1000
900
500
700
400
1000
600
400
300
1000
1400
1300
1200
1100
1000
–
–
800
–
–
700
–
–
200
–
800
600
600
½
◻
: Capacitance tolerance code
( ) : Suffix for lead crimped
Note) Part Number marked with
★
is Short Lead Space Product.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Sep. 2017
Plastic Film Capacitors
Rating · Dimensions · Quantity
●
Rated
voltage : 630 V.DC, Capacitance tolerance : ±5 %(J), ± 10 %(K),
Dimensions (mm)
H max.
S
G
Crimped Crimped
Crimped Crimped
F
max.
lead
lead
lead
lead
(Suffix B) (Suffix Q)
(Suffix B) (Suffix Q)
12.8
12.8
7.5
10.0
13.1
13.1
7.5
10.0
13.4
13.4
7.5
10.0
13.7
13.7
7.5
10.0
14.2
14.2
7.5
10.0
–
–
14.6
14.6
7.5
10.0
15.2
15.2
7.5
10.0
15.7
15.7
7.5
10.0
16.4
16.4
7.5
10.0
16.0
18.0 15.0
7.5
15.0
1.5
16.5
18.5 15.0
7.5
15.0
1.5
17.0
19.0 15.0
7.5
15.0
1.5
17.7
19.7 15.0
7.5
15.0
1.5
18.3
20.3 15.0
7.5
15.0
1.5
19.2
21.2 15.0
7.5
15.0
1.5
20.1
22.1 15.0
7.5
15.0
1.5
21.1
18.5
19.3
20.5
21.5
22.7
24.2
25.7
27.1
28.9
23.1
20.5
21.3
22.5
23.5
24.7
26.2
27.7
29.1
30.9
15.0
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
7.5
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Min. order Q'ty
Taping
Bulk
fd
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
7.5 mm
1300
1200
1000
900
700
500
1000
400
Straight
Crimped
lead
Part No.
Cap.
(μF)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
L
max.
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
17.8
17.8
17.8
17.8
17.8
17.8
17.8
17.8
25.3
25.3
25.3
25.3
25.3
25.3
25.3
25.3
25.3
T
max. Straight
4.4
4.7
5.0
5.4
5.8
6.2
6.8
7.4
8.1
6.0
6.6
7.1
7.8
8.4
9.3
10.2
11.2
8.4
9.2
10.3
11.2
12.4
13.8
15.3
16.6
18.3
ECWFD2J473◻(
ECWFD2J563◻(
ECWFD2J683◻(
ECWFD2J823◻(
ECWFD2J104◻(
ECWFD2J124◻(
ECWFD2J154◻(
ECWFD2J184◻(
ECWFD2J224◻(
ECWFD2J274◻(
ECWFD2J334◻(
ECWFD2J394◻(
ECWFD2J474◻(
ECWFD2J564◻(
ECWFD2J684◻(
ECWFD2J824◻(
ECWFD2J105P(
★
ECWFD2J105Q(
ECWFD2J105◻(
ECWFD2J125◻(
ECWFD2J155◻(
ECWFD2J185◻(
ECWFD2J225◻(
ECWFD2J275◻(
ECWFD2J335◻(
ECWFD2J395◻(
ECWFD2J475◻(
–
–
11.0
11.5
12.0
12.7
13.3
14.2
15.1
16.1
13.5
14.3
15.5
16.5
17.7
19.2
20.7
22.1
23.9
300
200
1000
800
–
600
500
400
300
900
800
700
600
500
400
½
◻
: Capacitance tolerance code
( ) : Suffix for lead crimped
Note) Part Number marked with
★
is Short Lead Space Product.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Sep. 2017
