0192210408 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0192210408

0192210408: DescriptionCONN RING FLAT 8AWG #10 CRIMP; CategoryThe connector; File Size27KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0192210408 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0192210408	-	-	View	Buy Now

0192210408 Overview

CONN RING FLAT 8AWG #10 CRIMP

0192210408 Parametric

Parameter Name	Attribute value
Terminal type	Flat side, tubular (battery lug)
Stud/Tab Dimensions	10 binding posts
thickness	0.070"（1.78mm）
Width - outer edge	0.438"（11.13mm）
Length - total	1.187"（30.15mm）
Installation type	free hanging
Termination	crimp
Wire gauge	8 AWG
insulation	non-insulated
characteristic	high load
color	-
Contact material	copper
Contact plating	-
Insulation layer diameter	-
Material - Insulation	-

Preview

Download Datasheet

View All

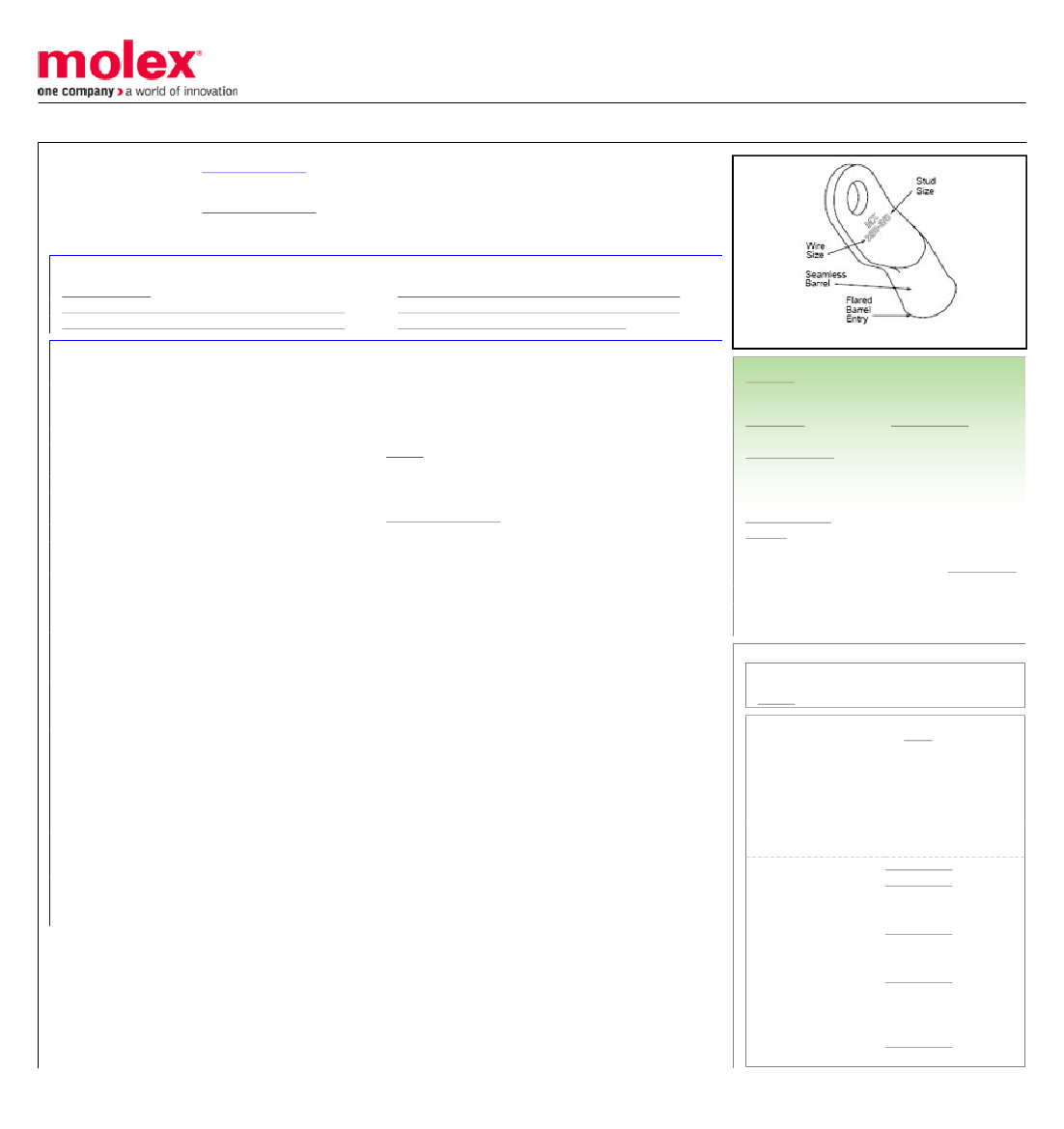

This document was generated on 11/23/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0192210408

Active

Battery Cable Lugs

Compression Style Ring tongue Terminal for 8 AWG Wire, Stud Size 10 (M5), Un-

plated

Documents:

Drawing (PDF)

Product Specification PS-19901-017-001 (PDF)

Product Specification PS-19902-011-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Overview

Product Name

Type

UPC

Physical

Barrel Type

Insulation

Material - Plating Mating

Net Weight

Packaging Type

Stud Size

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-19902-013-001 (PDF)

Product Specification PS-19902-017-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR18689

E32244

Ring and Spade Terminals

19221

Heavy Duty

Yes

N/A

Battery Cable Lugs

Battery Cable Lug

Ring

800753064928

Closed

None

Tin

5.189/g

Bag

10 (M5)

Crimp or Compression

N/A

6.60-10.50

N/A

BCL-810

PS-19901-017-001, PS-19902-011-001,

PS-19902-013-001, PS-19902-017-001

SD-19221-001

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

19221 Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

192840034

Manual Putt Pump 192860117

Hydraulic System,

Die set required

Die Set (large) for

192900001

the HHLS Hydraulic

Crimper

Manual tool for

192940008

Crimping non-

insulated 8AWG thru

4/0 Terminals

Square “DIN” style 640037670

dies for 8 AWG
