31020102 datasheet, PDF - EEWORLD Datasheet

31020102: DescriptionSHROUDED HEADER, VERTICAL, PCB,; CategoryThe connector; File Size271KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31020102 Overview

SHROUDED HEADER, VERTICAL, PCB,

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	2
Number of pins per level	2
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	0.205"（5.21mm）
Insulation height	0.480"（12.20mm）

Data Sheet

PT045xxVBBN

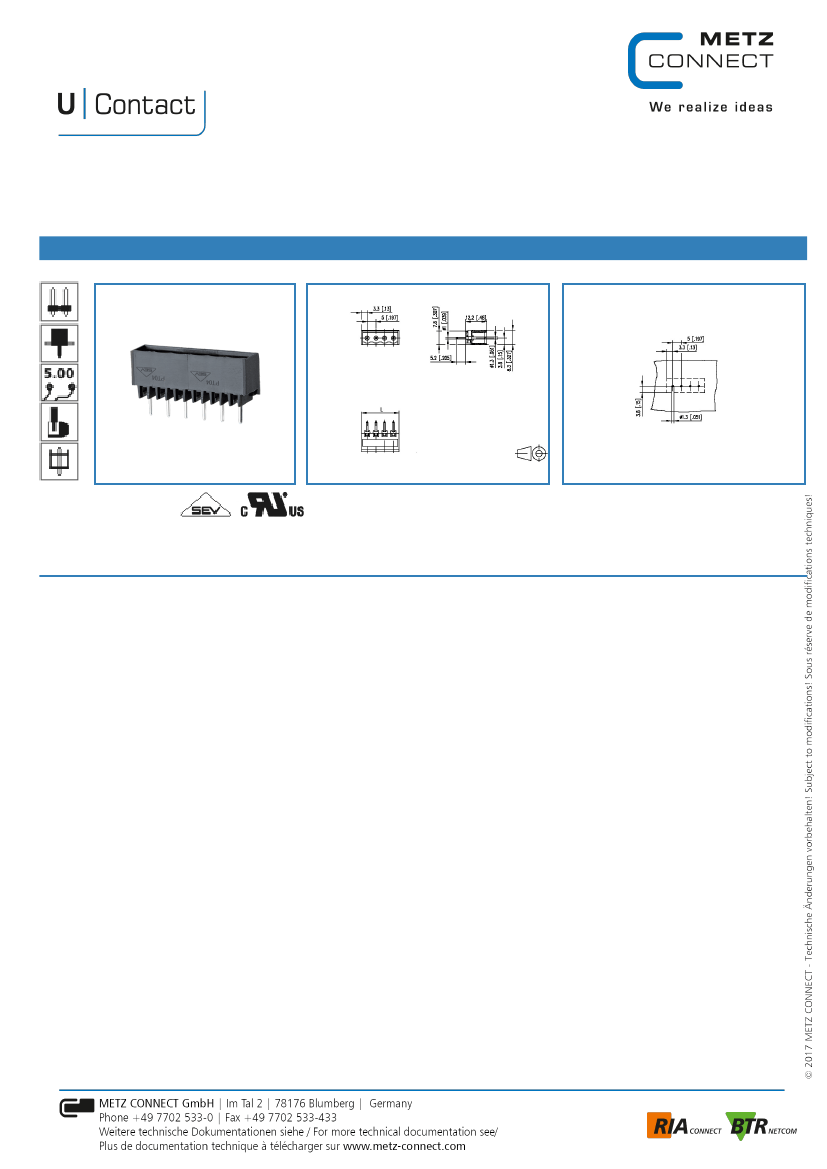

Illustration

Page 1/5

P/N

310201xx

xx=number of poles

2017/05/04

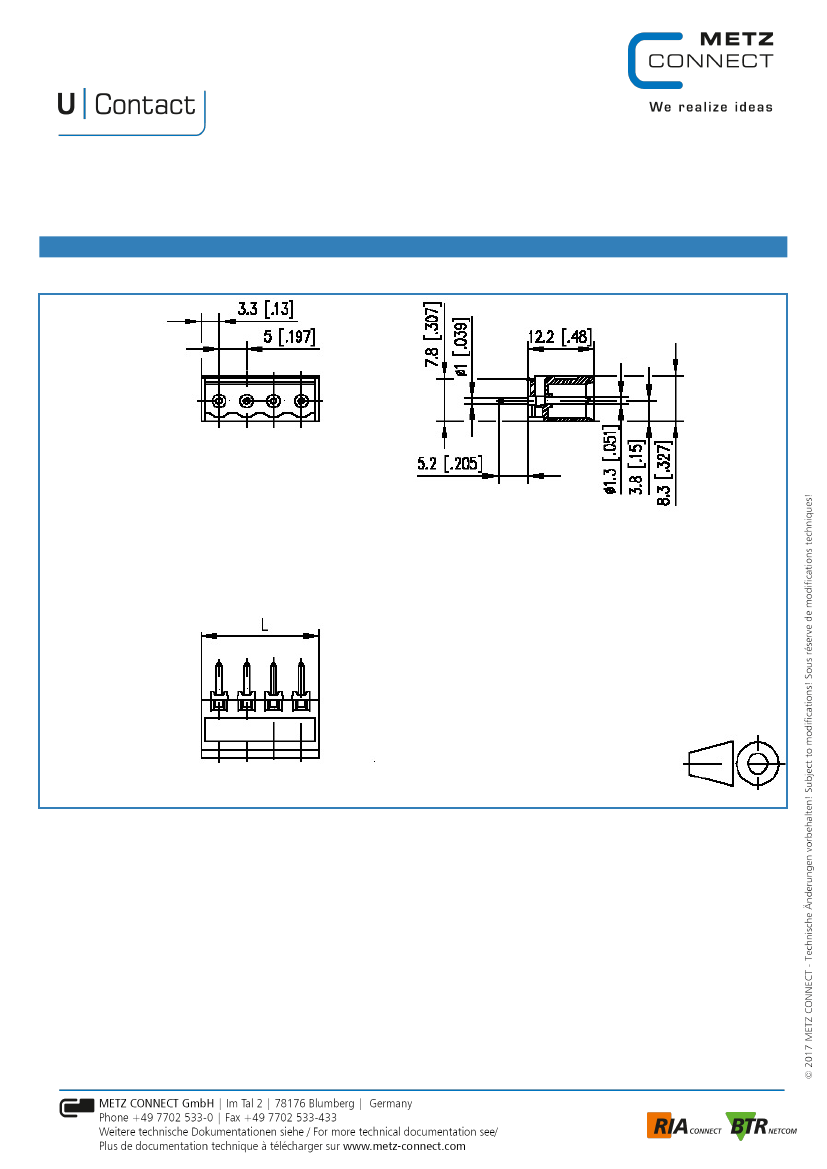

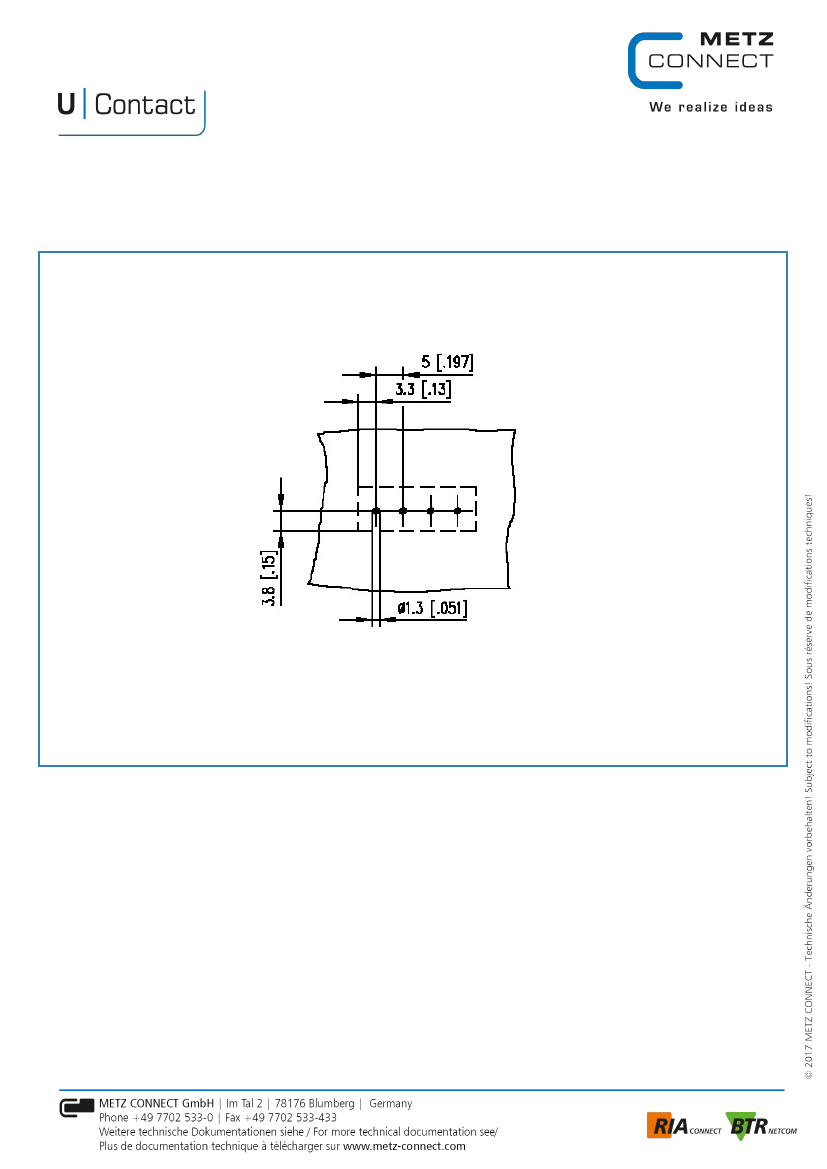

see enlarged drawing at the end of the document

Product specification

• pin header, solderable

• centerline 5.00 mm, direction of connection vertical 0°

• closed ends

• color black

	31020102	31020103	31020104	31020106
Description	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	2	3	4	6
Number of pins per level	2	3	4	6
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Needle seat direction	Vertical	Vertical	Vertical	Vertical
Terminal type	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole
Current - UL	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	Beryllium copper	Beryllium copper	Beryllium copper	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact tail length	0.205"（5.21mm）	0.205"（5.21mm）	0.205"（5.21mm）	0.205"（5.21mm）
Insulation height	0.480"（12.20mm）	0.480"（12.20mm）	0.480"（12.20mm）	0.480"（12.20mm）
