BM28B0.6-58DP/2-0.35V(53) datasheet, PDF

Datasheet> All Categories > The connector> BM28B0.6-58DP/2-0.35V(53)

BM28B0.6-58DP/2-0.35V(53): DescriptionCONN HDR 0.35MM SMD 58POS+2PWR; CategoryThe connector; File Size474KB，8 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

BM28B0.6-58DP/2-0.35V(53) Overview

CONN HDR 0.35MM SMD 58POS+2PWR

BM28B0.6-58DP/2-0.35V(53) Parametric

Parameter Name	Attribute value
Connector type	connector, housing contact
Number of pins	58
spacing	0.014"（0.35mm）
Number of rows	2
Installation type	surface mount
characteristic	Fixed solder tail
Contact plating	gold
Contact plating thickness	1.97µin（0.050µm）
Joint stack height	0.6mm
board height	0.018" (0.46mm)

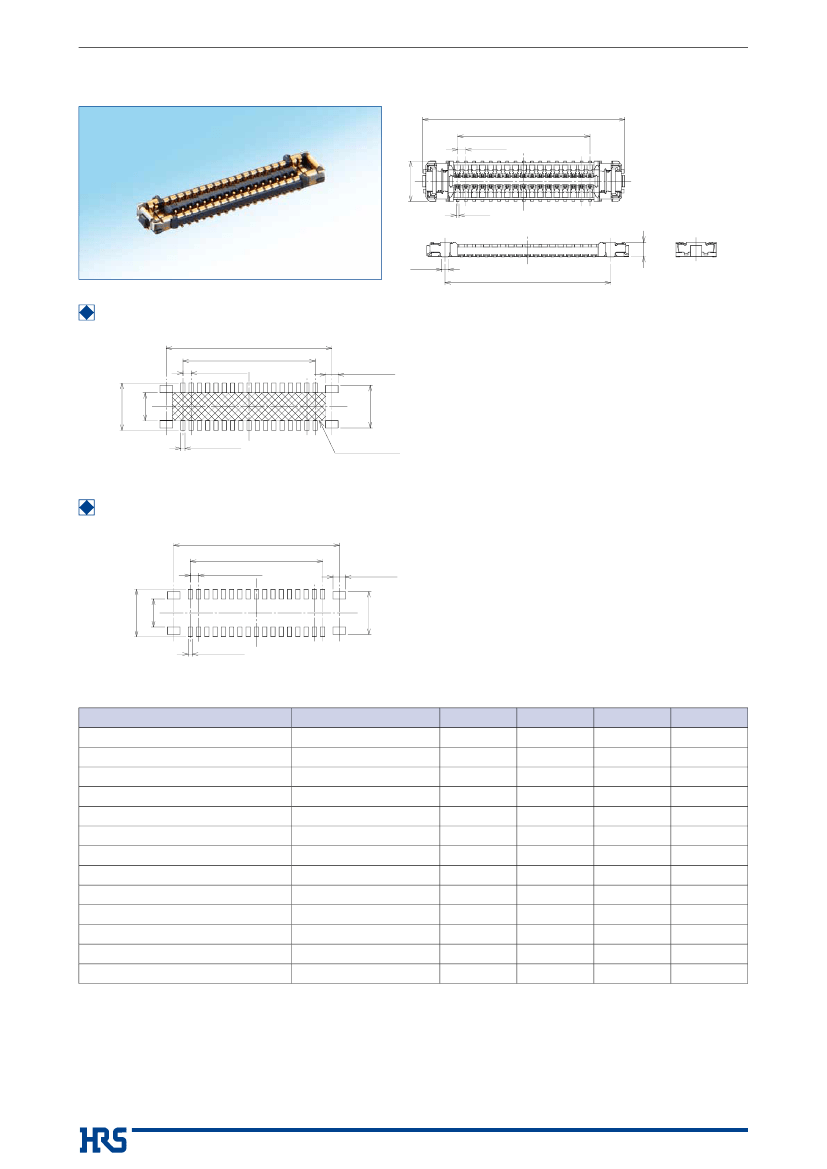

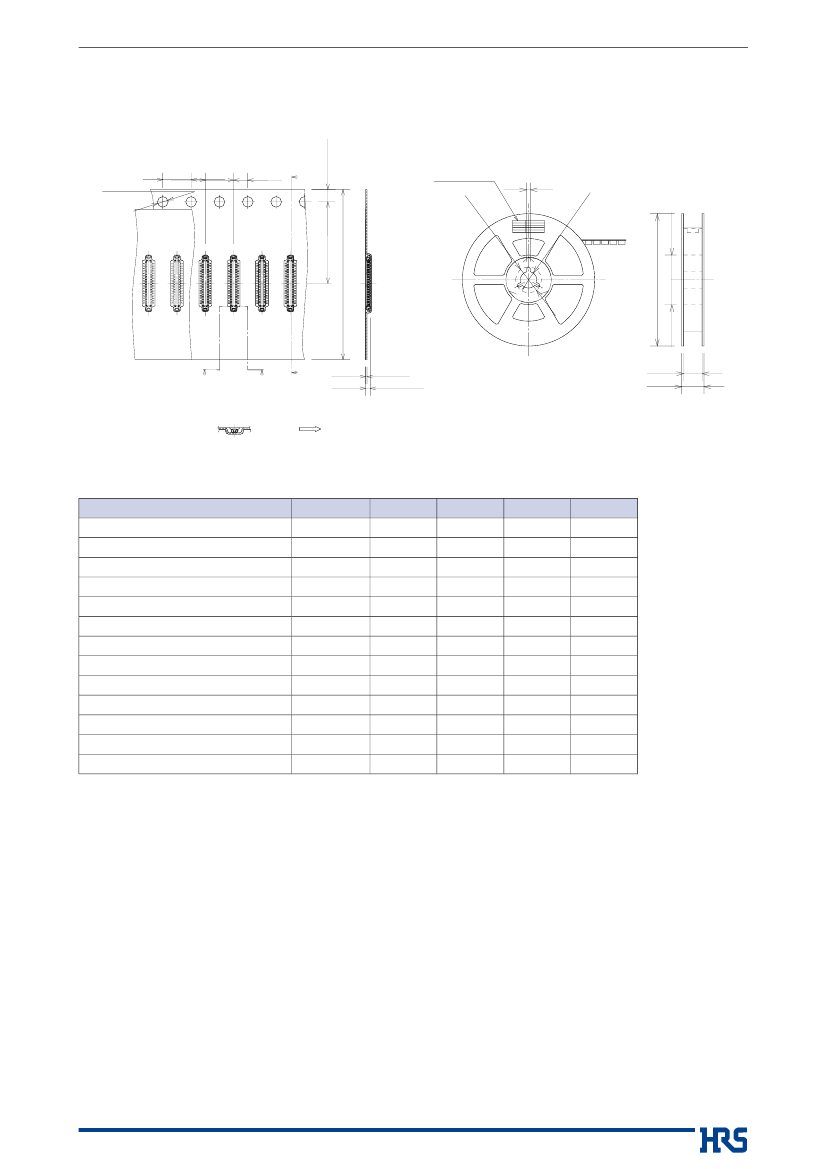

Preview

Download Datasheet

View All

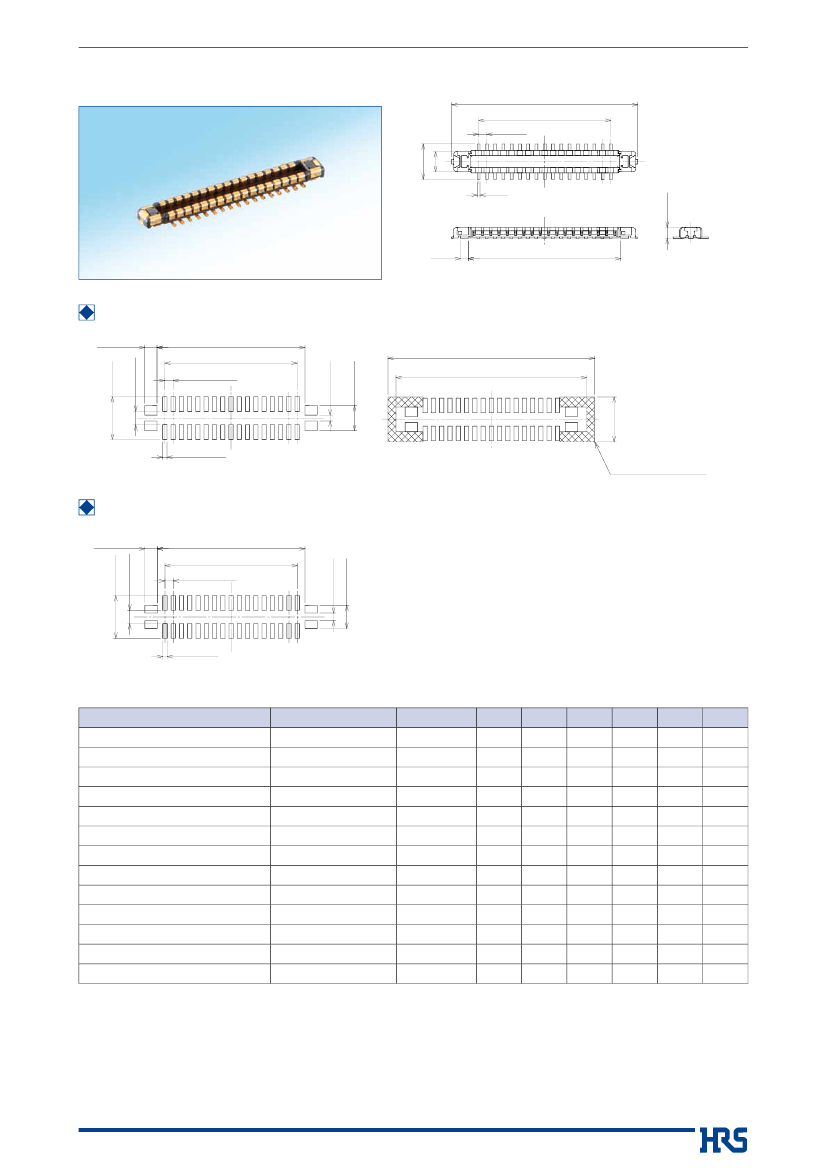

0.35mm pitch, 0.6mm height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A

BM28 Series

Conventional

article

(P=0.35mm,

20pos.)

BM28-10pos.

(+2pos. for

power)

Power lines are concentrated into 2 power contacts

instead of conventional multiple signal contacts.

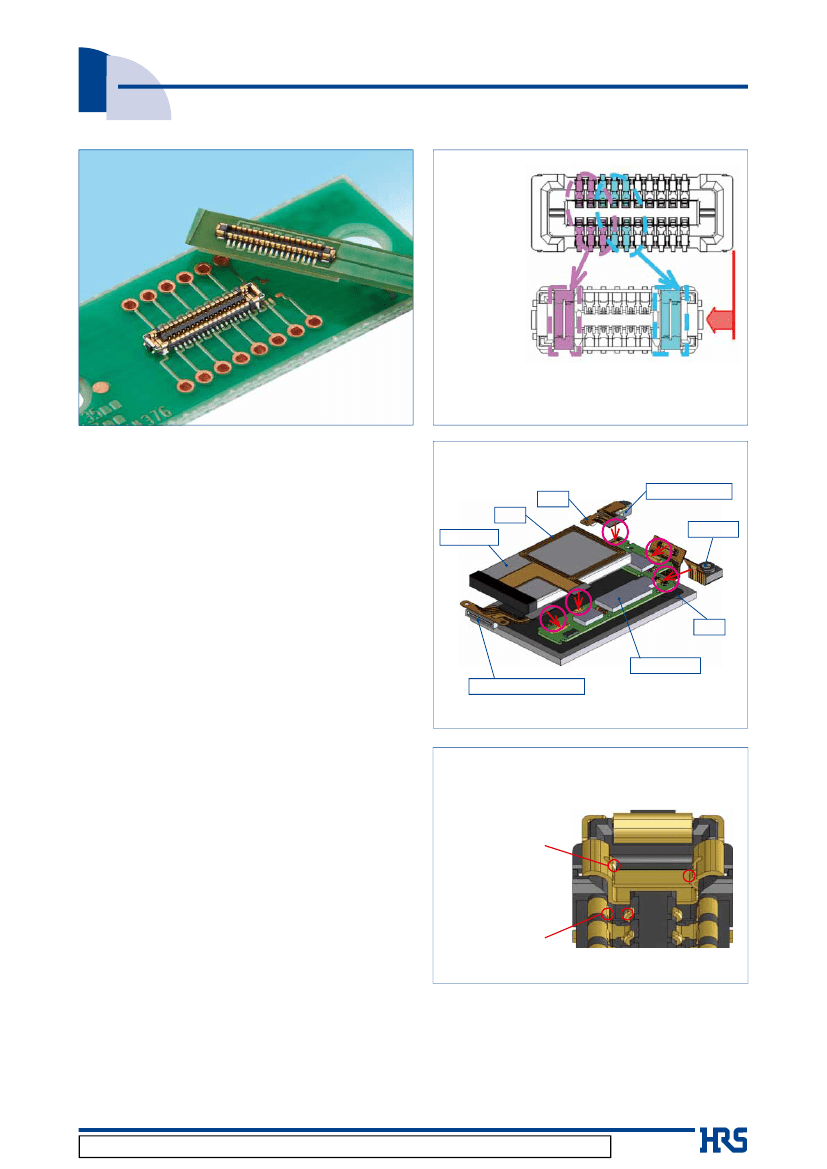

■Features

1. Rated current 5A

2 Power contacts up to 5A with 0.2A contacts for

signal, space-saving connector.

Usage specification

USB

NFC

Battery

Camera

Earphone jack

2. Highly reliable contact design

2-point contact design for both power & signal

ensures a highly reliable contact

3. Good mating operation

Guide ribs ensure 0.3mm self-alignment. Clear

tactile click prevents partial mating, increases mating

operability.

LCD

Main board

Interface connector

4. Supports USB3.1 Gen.2 (10Gbps) transmission

Signal connector supports USB3.1 Gen.2 transmission

signals.

■Usage

Devices designed to be thinner and smaller, such

as mobile phone, wearable device, tablet PC.

Contact design

■Environmental

・

Halogen-free

As defined by IEC 61249-2-21

Br : 900ppm max, Cl : 900ppm max

Br+Cl :1500ppm max

Power contact :

2-point contact

Signal contact :

2-point contact

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.9③
