MATERIAL: NYLON 6/6 MATERIAL: NYLON 6/6
UL 94 V-2 (RMS-01)
UL 94 V-0 (RMS-19)
PART NO.
PART NO.
LCBS-2-3-01
LCBS-2-4-01
LCBS-2-5-01
LCBS-2-6-01
LCBS-2-7-01
LCBS-2-8-01
LCBS-2-10-01
LCBS-2-12-01
LCBS-2-14-01
LCBS-2-16-01
LCBS-2-18-01
LCBS-2-20-01
LCBS-2-22-01
LCBS-2-3-19
LCBS-2-4-19
LCBS-2-5-19
LCBS-2-6-19
LCBS-2-7-19
LCBS-2-8-19
LCBS-2-10-19
LCBS-2-12-19
LCBS-2-14-19
LCBS-2-16-19
LCBS-2-18-19
LCBS-2-20-19
LCBS-2-22-19
DIM.
"A"±.015
3/16 [4.8]
1/4 [6.4]
5/16 [7.9]
3/8 [9.5]
7/16 [11.1]
1/2 [12.7]
5/8 [15.9]
3/4 [19.1]
7/8 [22.2]
1.0 [25.4]
1-1/8 [28.6]
1-1/4 [31.7]
1-3/8 [34.9]
TO SNAP-LOCK IN A .156±.003
[4±0.08] DIA. HOLE, IN A
.062 [1.57] PANEL THICKNESS
.28 7.1
.10 2.5
.40 10.2
"A"
7/32 [5.6]
.18 4.6 REF
.55 13.9
REF
NOTES:
1. MATERIAL: NYLON 4/6, UL 94 V-2 (RMS-109),
AVAILABLE BY SPECIAL ORDER ONLY.
TO ORDER REPLACE "-01" WITH "-109"
2. COLOR: NATURAL
3. ALTERNATE UNITS FOR REFERENCE ONLY
E
-
REV.
REDRAWN, SEE ECN #1211 FOR CHANGES
SEE ENG FOR REV A-D
DESCRIPTION
SK
09/08/06
--
----
ENGR. DATE
7/32 5.6
TO SNAP-LOCK IN A .187±.003
[4.75±0.08] DIA. HOLE, IN A
.078-.141 [1.98-3.58] PANEL THICKNESS
TITLE:

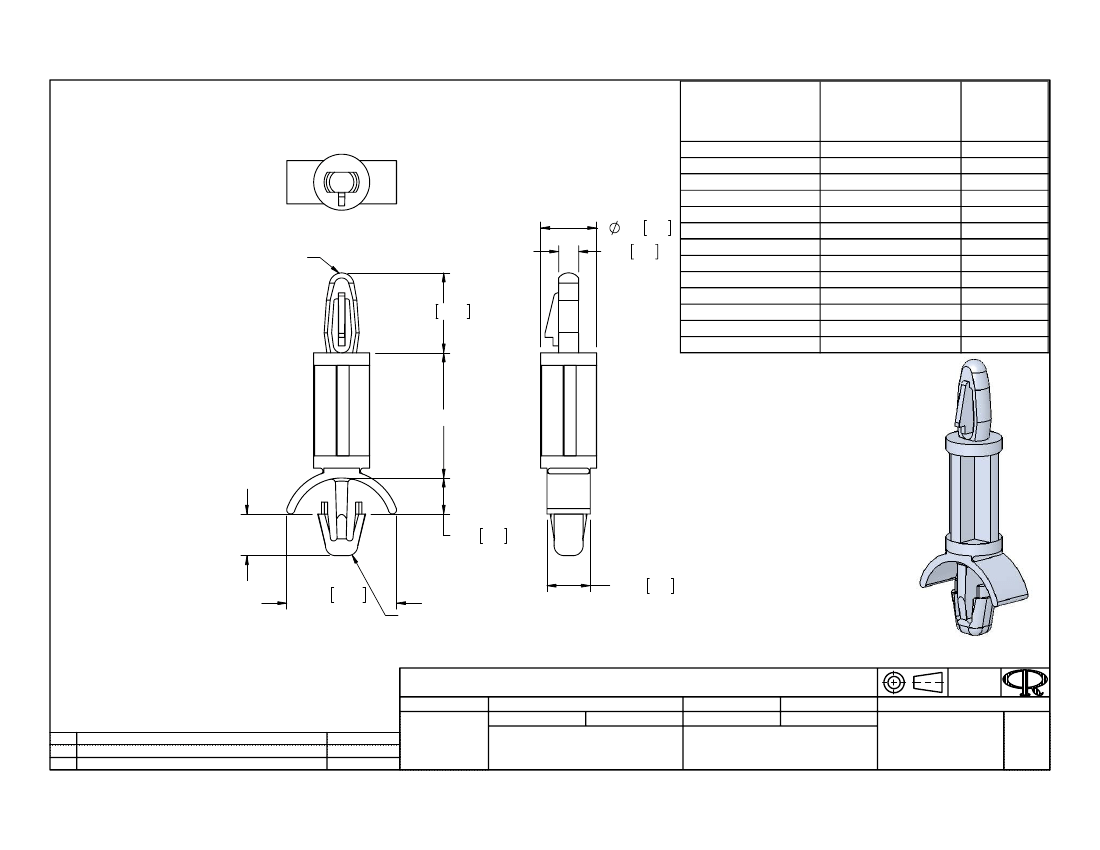

LOCKING CIRCUIT BOARD SUPPORT, TYPE 2
FILE #: LCBS-2
SHEET: 1 OF 1
RE:
SHEET SIZE: A
DWN: SK
DT: 08/23/06
CREATED USING
SOLIDWORKS
TOLERANCES
UNLESS NOTED
.XX=±.010
.XXX=±.005
FRAC.=±1/64
ANG.=±1°
RICHCO,INC.
RICHCO, INC.
ENG@RICHCO-INC.COM
APP: RT
CHKD: SJ
PART #
DWG IN
IN [mm]
FINAL
PRINT
TYPE
(773) 539-4060
SEE TABLE
CA
