LXA7-PW40-338 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LXA7-PW40-338

LXA7-PW40-338: DescriptionLED LUXEON R WHITE SMD; CategoryLED optoelectronic/LED; File Size2MB，19 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/; Environmental Compliance

Download Datasheet Parametric View All

LXA7-PW40-338 Overview

LED LUXEON R WHITE SMD

LXA7-PW40-338 Parametric

Parameter Name	Attribute value
color	white, natural
CCT（K）	4000K 5th order MacAdam ellipse
Flux, current at 85°C - Test	215 lm (standard)
Flux, current at 25°C - Test	-
Current - Test	700mA
Voltage - Forward (Vf) (Typical)	2.81V
Lumens/Watt at different test currents	109 lm/W
CRI (high color rendering index)	70
Current - maximum	1A
perspective	120°
Installation type	surface mount
Package/casing	1812 (4532 metric)
Supplier device packaging	-
size/dimensions	0.177" long x 0.120" wide (4.49mm x 3.05mm)
Height - Installation (maximum)	0.083"（2.10mm）
Package thermal resistance	6°C/W

Preview

Download Datasheet

View All

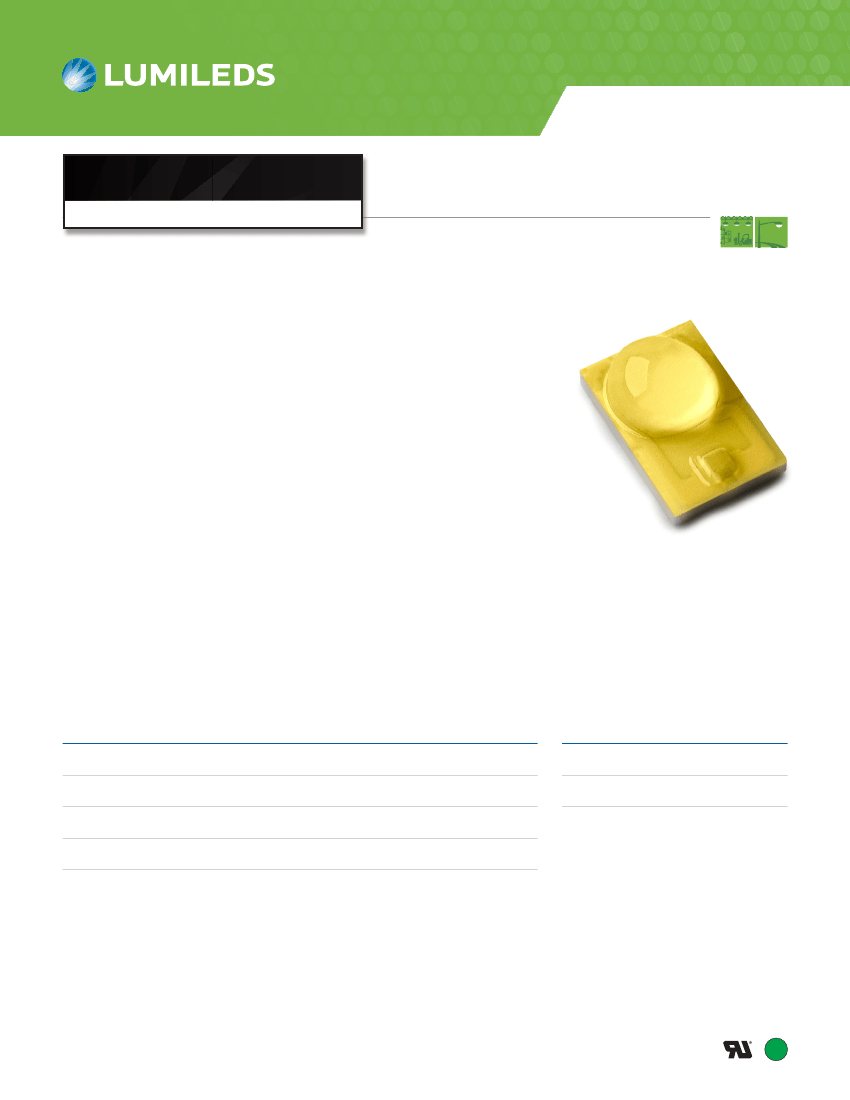

IllumInatIon

fo t

r e

N co

ew m

d e

es N

ig d

• LUXEON TX

For nEW designs consider

this replacement product:

luXEon R

High flux for outdoor applications

LUXEON R brings illumination grade LED light sources to outdoor

and industrial lighting applications and makes it easier than ever to

design LED solutions and bring them to market. With hot testing, every

LUXEON R is tested and specified at real world operating conditions —

85°C.

Freedom from Binning

means that every LUXEON R LED falls within

a single 5-step MacAdam ellipse centered in ANSI defined standard color

spaces and now, luminaire manufacturers can be confident in color

consistency from LED to LED. The superior quality of light, volume

of lumens, and real world efficacy enable leading performance and

efficient solution development in a wide variety of high bay, low bay

and outdoor applications.

FEatuREs and BEnEFIts

PRImaRy aPPlIcatIons

High Bay & Low Bay

5-step MacAdam color definition:

Freedom from Binning

Identical footprint to LUXEON Rebel family and ecosystem for compatibility

with existing designs

Hot tested at real world conditions which leads to better color accuracy

70CRI minimum and a full range of CCTs

Outdoor

COMPLIANT

RoHS

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

fo t

r e

N co

ew m

d e

es N

ig d

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Reflow Soldering Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pad Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Typical Light Output Characteristics over Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Current Derating Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Emitter Pocket Tape Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Emitter Reel Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Product Binning and Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Luminous Flux Bins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

LUXEON R 5-step MacAdam Ellipse Color Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
