16SMA-50-2-106/111NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 16SMA-50-2-106/111NH

16SMA-50-2-106/111NH: DescriptionCABLE TERMINATED, MALE, SMA CONNECTOR, CRIMP SOLDER, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

16SMA-50-2-106/111NH Overview

CABLE TERMINATED, MALE, SMA CONNECTOR, CRIMP SOLDER, PLUG, ROHS COMPLIANT

16SMA-50-2-106/111NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	STANDARDS: MIL-C-39012; IEC 169-15, CAPTIVE CENTRE CONTACT; VSWR AT 5GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.42 dB
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

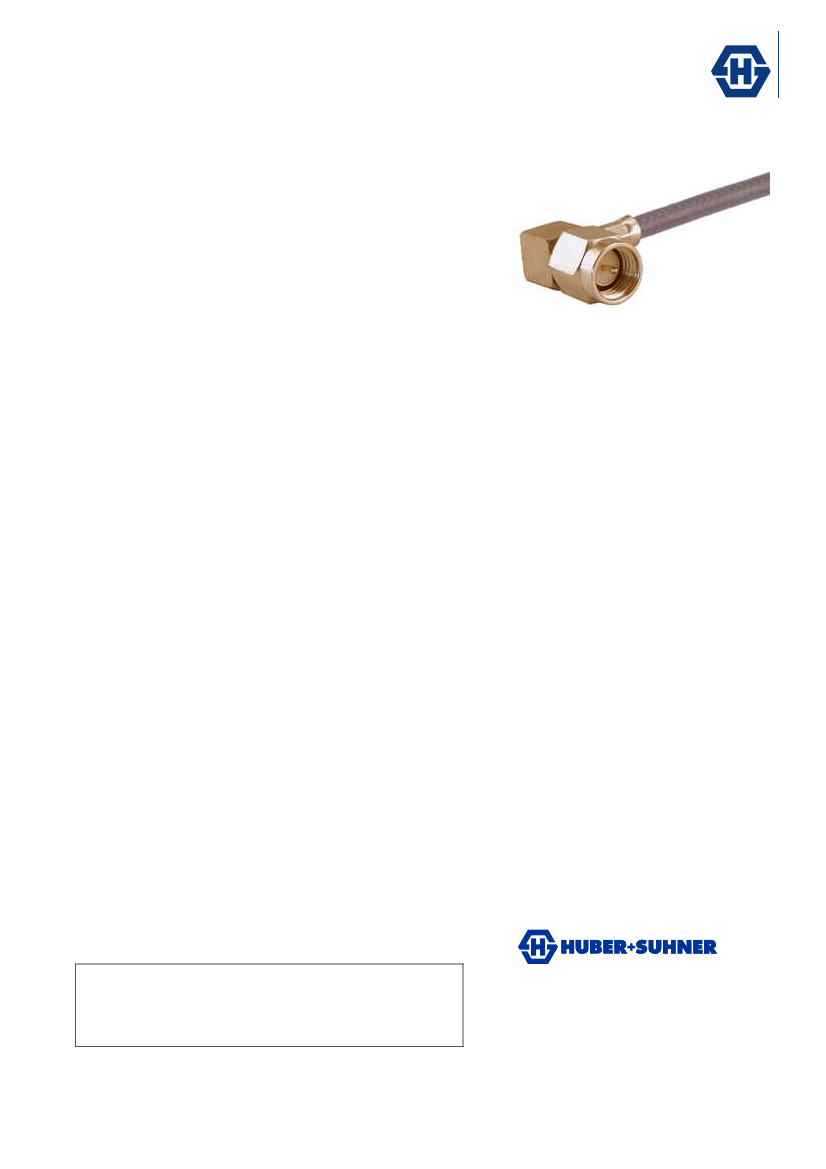

DATA SHEET

Coaxial Cable Connector: 16_SMA-50-2-106/111_N

Description

Rev.: C

Right angle cable plug

Interface Standards

IEC 60169-15_MIL-STD-348A/310_CECC 22110

Technical Data

Electrical Data

Impedance

Interface frequency max.

Ω

18 GHz

soldered

crimped

0.0046 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Bronze

MVQ (Silicone Rubber)

Copper

DOU-00006823

DOU-00006406

DOC-0000178742

16_SMA-50-2-106/111_NE

16_SMA-50-2-106/111_NH

K_02252_D, ENVIROFLEX_316_D, G_02232_D

Surface Plating

Gold Plating (Nickel underplated)

SUCOPRO Plating

Gold Plating (without Nickel underplating)

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Crimp ferrule

Material Data
