NDA-03-V: DescriptionSlide Dip Switch, 3 Switches, SPST, Latched, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,; CategoryMechanical and electronic products switch; File Size1MB，3 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

NDA-03-V Overview

Slide Dip Switch, 3 Switches, SPST, Latched, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,

NDA-03-V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145289171598
Reach Compliance Code	compliant
YTEOL	7.4
Actuator length	0.04 inch
Actuator material	POLYBUTYLENE TEREPHTHALATE
body width	6.2 mm
body height	9.9 mm
Body length or diameter	8.98 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact plating	GOLD
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
insulator material	PA66
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	3
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	6
method of packing	BULK
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal length	0.11 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

SW

-N

D

A

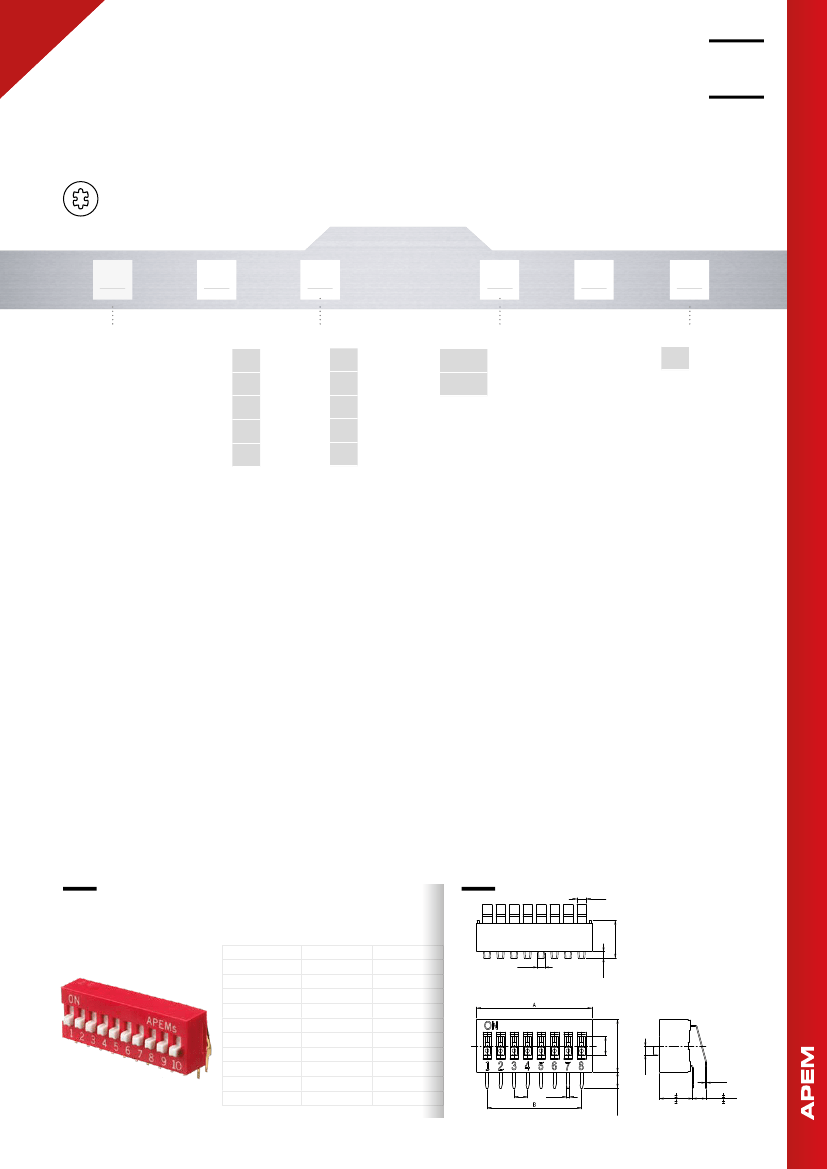

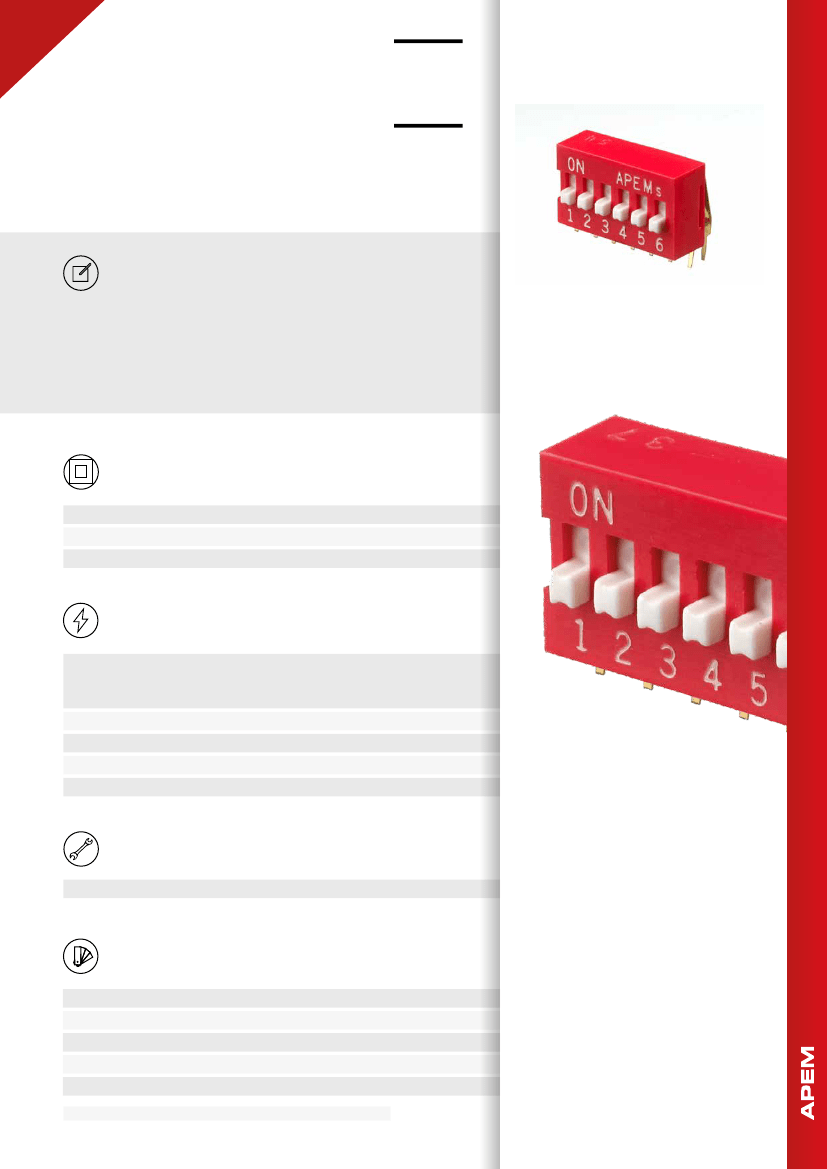

NDA series

Right angle • dual in line switches

DISTINCTIVE FEATURES

2 to 12 Way

Self-cleaning wiping contacts

Gold plated terminals

Washable with tape seal

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature: -20 °C to +70 °C (-4 °F to +158 °F)

• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

• Washable (with tape seal)

ELECTRICAL SPECIFICATIONS

• Max. Current/Voltage Rating:

-Switching: 25 mA 24 VDC

-Contact rating: 100 mA 50 VDC

• Initial Contact Resistance: 50 mΩ max

• Insulation Resistance: 100 MΩ min. at 500 VDC

• Dielectric Strength: 500 VAC min.

• Electrical Life: 2,000 cycles

MECHANICAL SPECIFICATIONS

• Operating force: 1,000 gf (9.8 N) max

MATERIALS

• Case & Actuator: PBT

• PA66

• Moving Contact: Gold plated

• Terminal: Gold plated

• Protection tape: Polyimide

The company reserves the right to change specifications without notice.
