HM2H09P115LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> HM2H09P115LF

Preview

HM2H09P115LF: DescriptionHM2H09P115LF SHROUD STYLE C LF; CategoryThe connector; File Size70KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

HM2H09P115LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2H09P115LF	-	-	View	Buy Now

HM2H09P115LF Overview

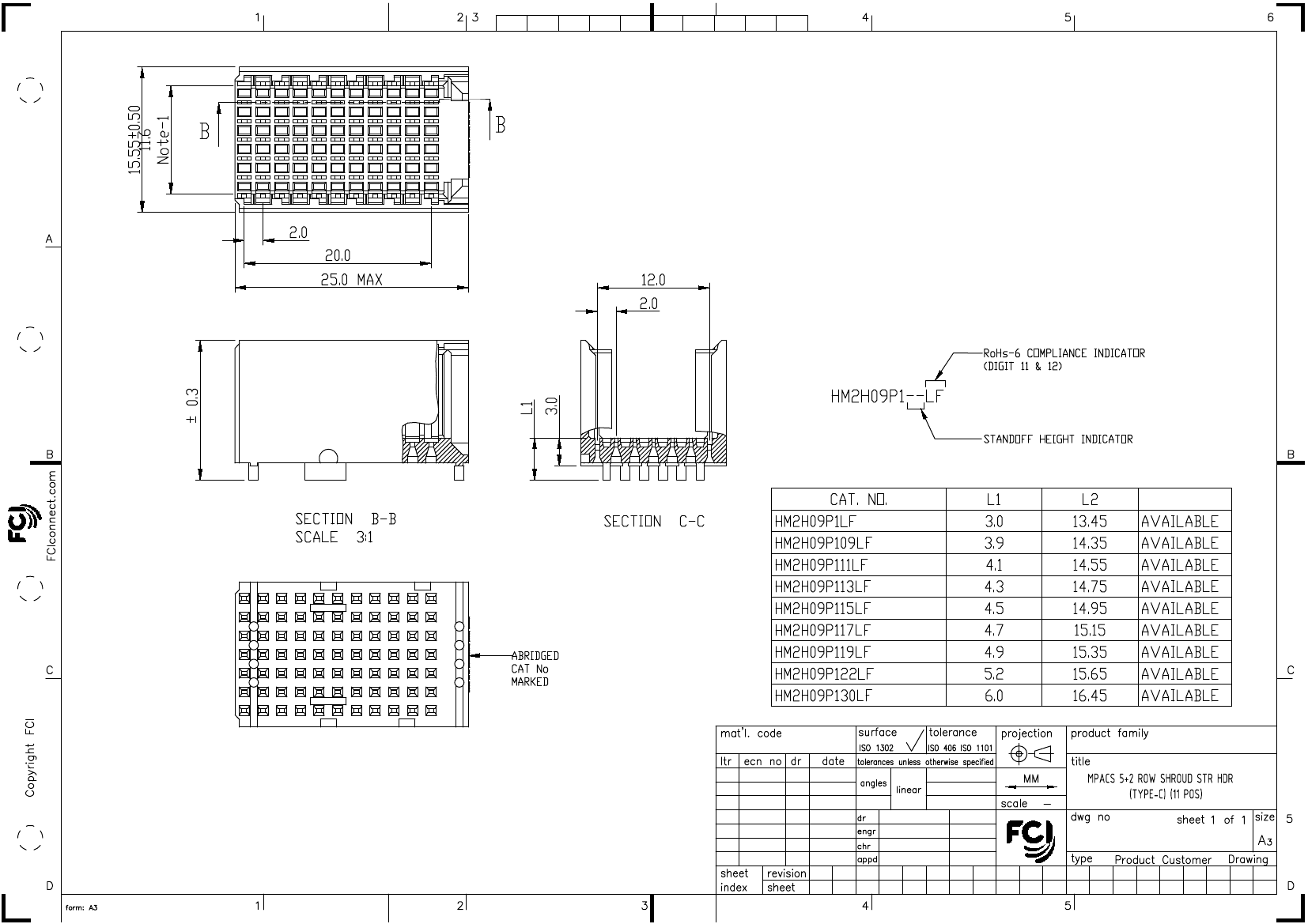

HM2H09P115LF SHROUD STYLE C LF

HM2H09P115LF Parametric

Parameter Name	Attribute value
Connector type	Shield for male pins
Connector style	Hard Metric, Type C
Number of pins	55
spacing	0.079"（2.00mm）
Number of rows	5 + 2
Installation type	Through hole
Connector usage	Connector
characteristic	-
color	-
Remark	Does not include contacts

Preview

Download Datasheet

View All

NOTES:

1.

2.

3.

4.

MEASURED AT THE BOTTOM

MATERIAL : GLASS REINFORCED POLYESTER UL94-V0

THIS PRODUCT MEETS EUROPEAN UNION DIRECTIVES AND

OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-47-0004

PARTS WITH AND WITHOUT SUFFIX LF TO THE PRODUCT

PART NUMBER ARE IDENTICAL IN FORM , FIT AND FUNCTION

LF SUFFIX IS ADDED TO THE PART NUMBER OF THIS PRODUCT

TO HAVE UNIFORM IDENTIFICATION OF ALL RoHs COMPATIBLE PRODUCTS

MILLIPACS

B

C

D

E

I05-0241

I06-0091

I06-0096

AB

VV

2005-11-22

2006-06-26

2006-07-04

2014-07-09

ALEX BABU

BIJU K PAUL

E

1

2008-12-16

ELX-I-18259 AKA

BS, C ,201630, 031

6

PDS: Rev :E

STATUS:Released

Printed: Jul 14, 2014
