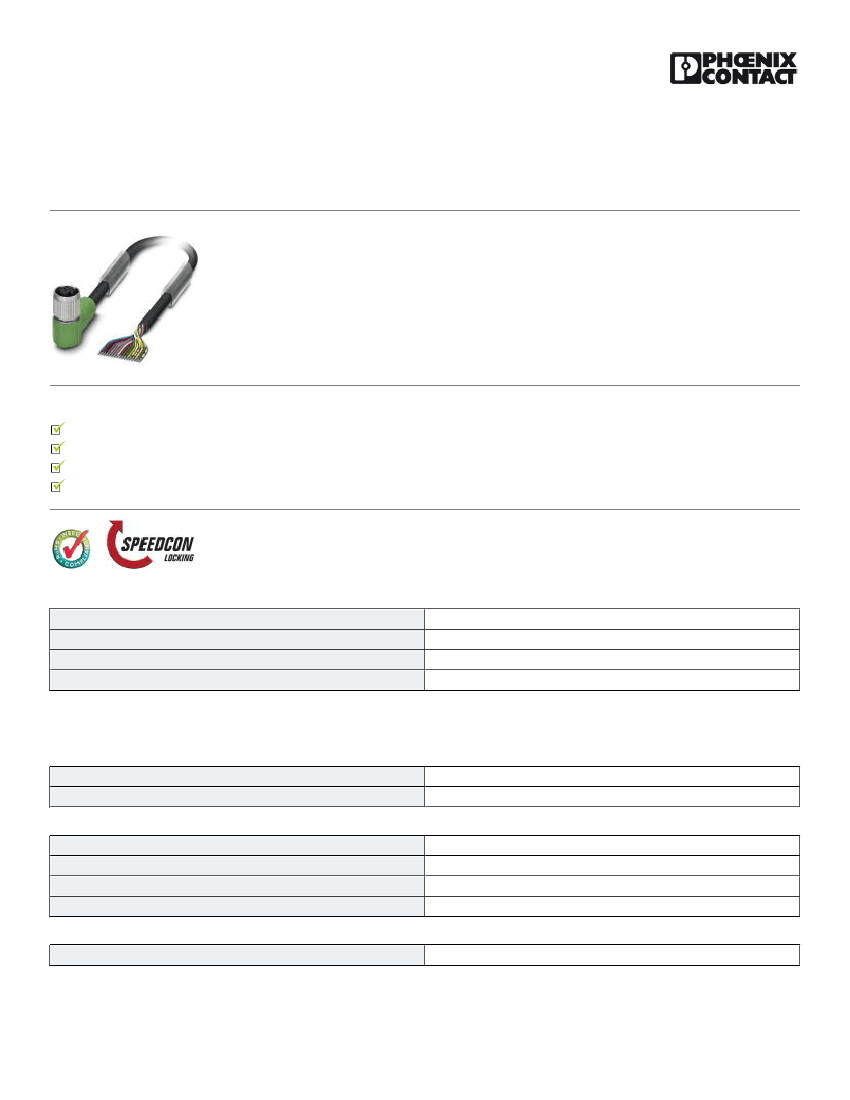

Sensor/Actuator cable - SAC-17P-10,0-PUR/FR SCO - 1430844
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 17-position, PUR halogen-free, Black RAL 9005, free cable end, on Socket angled M12
SPEEDCON, A-coded, Cable length: 10 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Save time, thanks to installation with SPEEDCON fast locking system
Our standard: robust halogen-free PUR cable
Save space – with high-pos. connectors
Packing unit
1 pc
793.8 GRM
85444290
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
10 m
35 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
1.5 A
08/25/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1430844
Sensor/Actuator cable - SAC-17P-10,0-PUR/FR SCO - 1430844
Technical data
General
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Surge voltage category
Pollution degree
Torque
30 V
17
≤ 5 mΩ
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
3
0.4 Nm (M12 connector)
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
V0
CuZn
Ni/Au
PA 66
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Cable
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Conductor material
17x 0.14 mm² (signal line)
26
18x 0.10 mm
1 mm ±0.05 mm (signal line)
White, brown, green, yellow, gray, pink, blue, red, black, violet, gray-pink,
red-blue, white-green, brown-green, white-yellow, yellow-brown, white-gray
17 wires twisted in layers
Black RAL 9005
8 mm
4000000
60 mm
10 m
3 m/s
10 m/s²
PUR
PP
Tin-plated Cu litz wires
08/25/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1430844
Sensor/Actuator cable - SAC-17P-10,0-PUR/FR SCO - 1430844
Technical data
Cable
Conductor resistance
Special properties
Resistance to oil
Other resistance
Ambient temperature (operation)
142 Ω/km
Low adhesion surface
DIN VDE 0472 Part 803, test type B
Hydrolysis and microbe resistant as per VDE 0282 section 10
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
GOST
08/25/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1430844
Sensor/Actuator cable - SAC-17P-10,0-PUR/FR SCO - 1430844
Approvals
Ex Approvals
Approvals submitted
Approval details
GOST

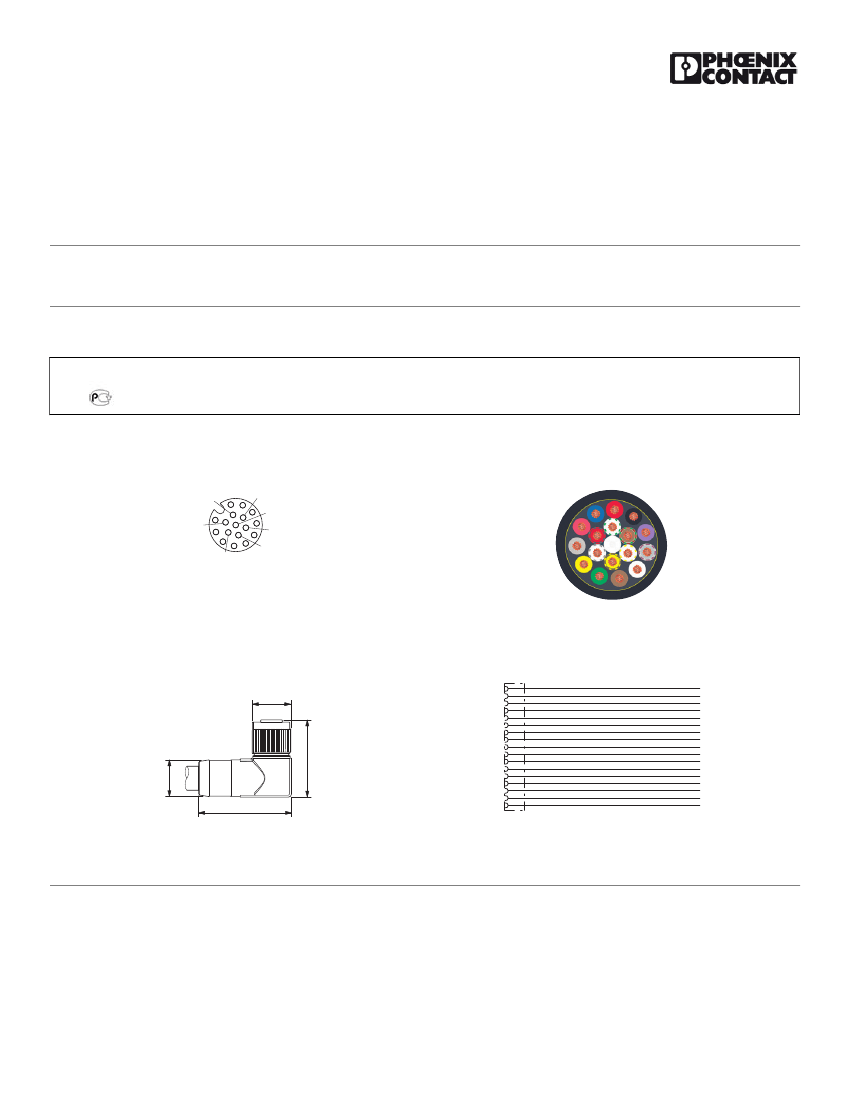

Drawings
Schematic diagram
3 13
4
17
1
5
11
14
10
6
15
9
16 8 7
12
2
Cable cross section
Pin assignment M12, 17-pos., socket side view
PUR halogen-free black [PUR]
Dimensioned drawing
14,8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Circuit diagram
BN
BU
WH
GN
PK
YE
BK
GY
RD
VT
GYPK
RDBU
WHGN
BNGN
WHYE
YEBN
WHGY
14,1
36,6
30
Contact assignment of the M12 socket
M12-SPEEDCON socket, angled
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
08/25/2014 Page 4 / 4
