HCPL06XX — High Speed-10 MBit/s Logic Gate Optocouplers
August 2013
HCPL0600, HCPL0601, HCPL0611,
HCPL0637, HCPL0638, HCPL0639
High Speed-10 MBit/s Logic Gate Optocouplers
Single Channel: HCPL0600, HCPL0601, HCPL0611
Dual Channel: HCPL0637, HCPL0638, HCPL0639
Features
■

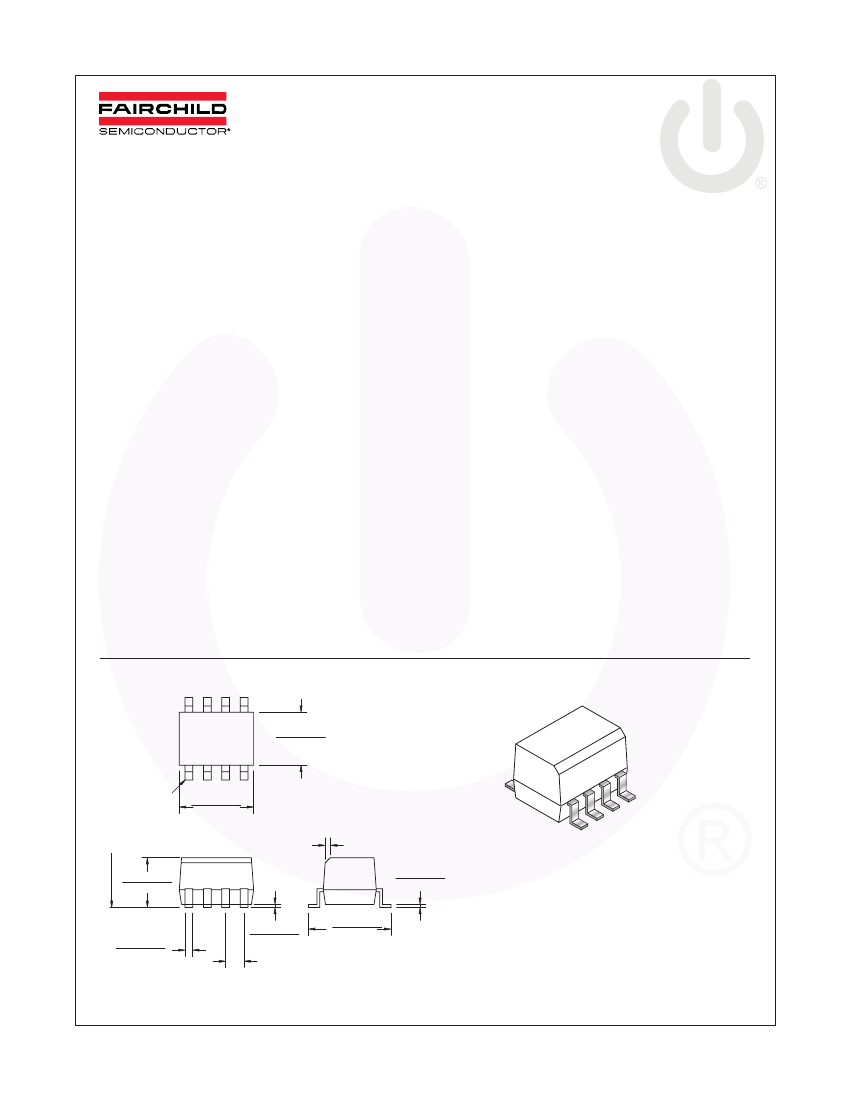

Compact SO8 package
■
Very high speed-10 MBit/s
■
Superior CMR
■
Logic gate output
■
Strobable output (single channel devices)
■
Wired OR-open collector
■
U.L. recognized (File # E90700)
■
IEC60747-5-2 approved (VDE option)
Description

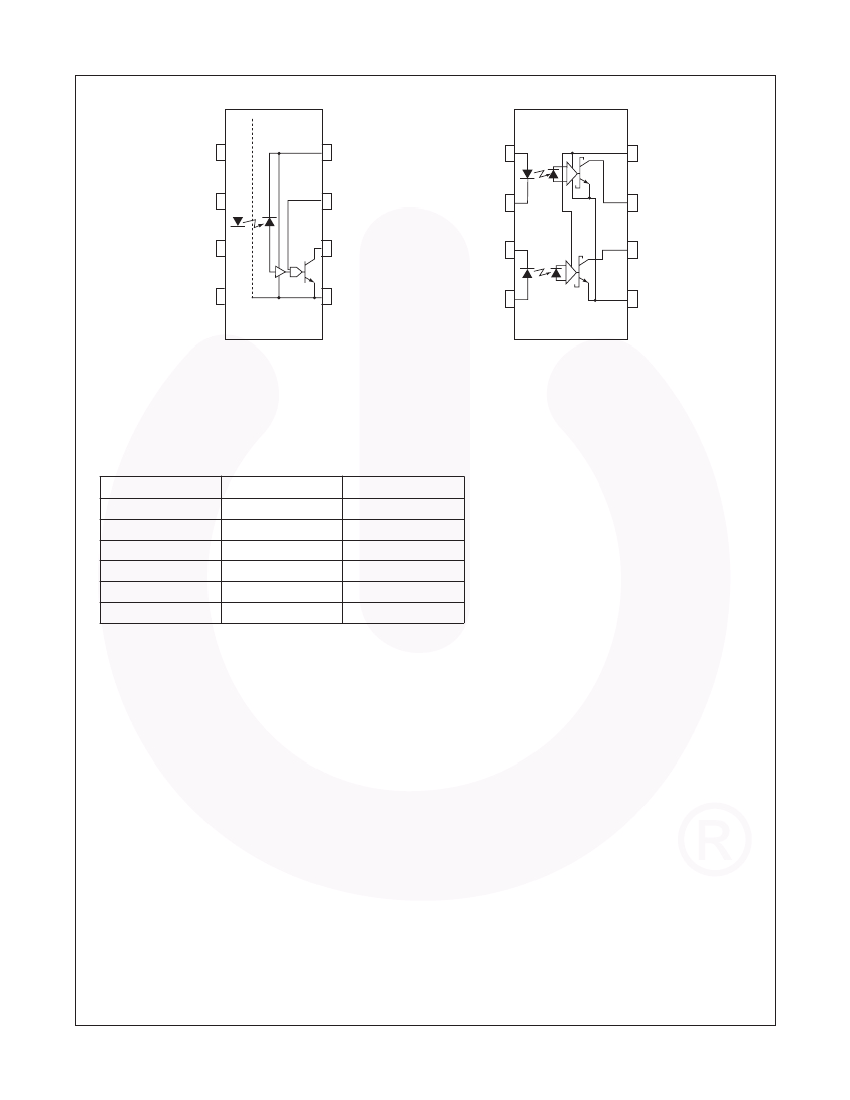

The HCPL06XX optocouplers consist of an AlGaAS
LED, optically coupled to a very high speed integrated
photo-detector logic gate with a strobable output (single
channel devices). The devices are housed in a compact
small-outline package. This output features an open col-
lector, thereby permitting wired OR outputs. The
HCPL0600, HCPL0601 and HCPL0611 output consists
of bipolar transistors on a bipolar process while the
HCPL0637, HCPL0638, and HCPL0639 output consists
of bipolar transistors on a CMOS process for reduced
power consumption. The coupled parameters are guar-
anteed over the temperature range of -40°C to +85°C.
