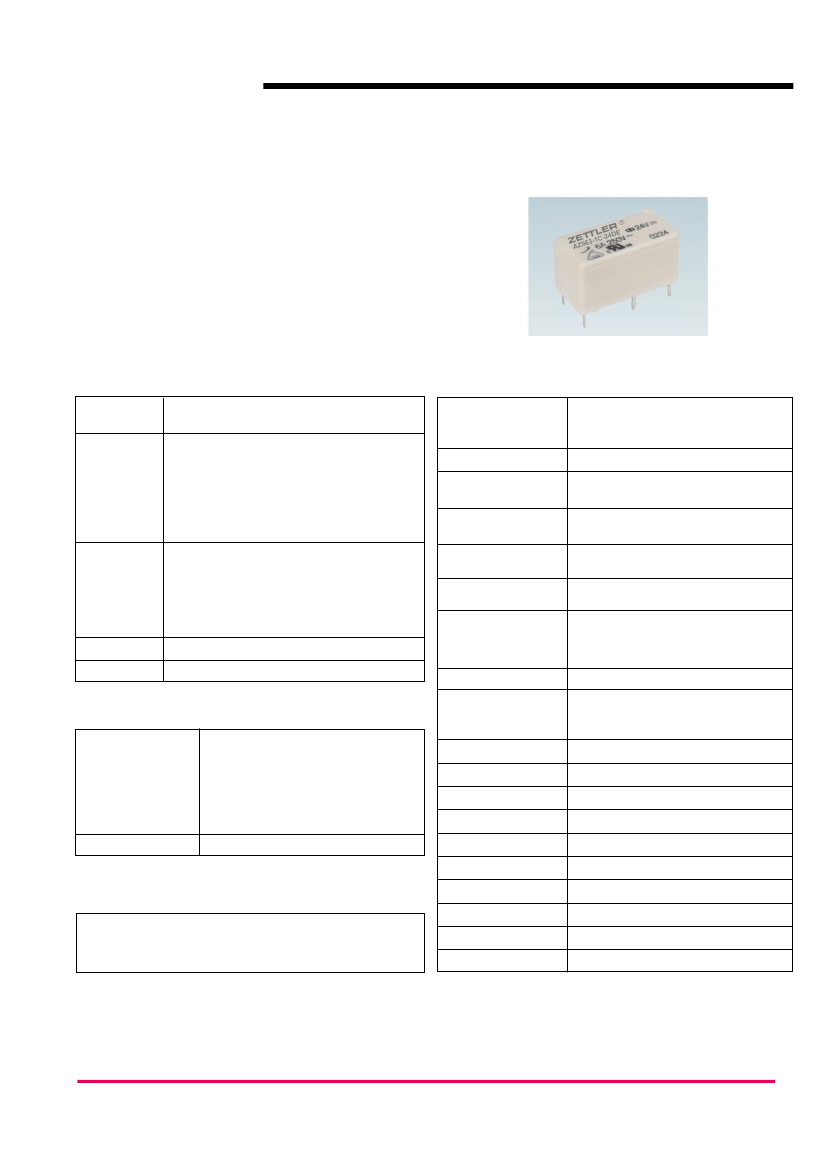

AZ963
SPDT SUBMINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
4 kV dielectric strength, 5 kV surge
Proof tracking index (PTI/CTI) 250
6 Amp switching
10 A version (1 Form A) upon request
Epoxy sealed
UL, CUR file E43203
VDE file 40011689
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A and 1 Form B)
Resistive load:
Max. switched power: 180 W or 1500 VA
Max. switched current: 6A
Max. switched voltage: 220 VDC* or 380 VAC
*
Note: If switching voltage is greater than 30 VDC,
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 6 A 250 VAC Res.
6 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
special precautions must be taken.
Please contact the factory.
Dielectric Strength
4000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Surge Voltage
Coil to contact
Insulation
Resistance
Insulation
(according to
DIN VDE 0110,
IEC 60664-1)
Dropout
Ambient Temperature
Operating
Storage
5,000V (at 1.2x50 µs)
1000 megohms min. at 20°C
500 VDC 50% RH
C250
Overvoltage category: III
Pollution degree: 2
Nominal voltage: 250 VAC
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.062" (1.5 mm) DA at 10–50 Hz
20 g operating, 100 g damage
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
5 grams
20 per plastic tube / 1000 per carton box
Rated Load
UL, CUR
6 A at 250 VAC, Resistive
6 A at 24 VDC, Resistive
5 A at 250 VAC, Resistive [1]
4 A at 250 VAC, Resistive [2]
Silver nickel [1] or silver tin oxide [2]
<100 milliohms initially
VDE
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
113 mW
0.96 W at 20°C (68°F) ambient
30°C (54°F) at nominal coil voltage
Max. 155°C (266°F)
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Max. Solvent Temp.
Max. Immersion Time
Weight
Packing unit in pcs
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2004-11-29
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ963
RELAY ORDERING DATA
STANDARD RELAYS
COIL SPECIFICATIONS
Nominal Coil
VDC
3
5
6
9
12
18
24
36
48
Must Operate
VDC
2.25
3.75
4.5
6.75
9.0
13.5
18.0
27.0
36.0
Max. Continuous
VDC
6.6
11.0
13.2
19.6
26.4
36.6
52.8
79.2
105.6
Coil Resistance
Ohm ± 10%
45
125
180
405
720
1,620
2,880
6,480
11,520
ORDER NUMBER*
Form A (SPST)
AZ963–1A–3DE
AZ963–1A–5DE
AZ963–1A–6DE
AZ963–1A–9DE
AZ963–1A–12DE
AZ963–1A–18DE
AZ963–1A–24DE
AZ963–1A–36DE
AZ963–1A–48DE
Form C (SPDT)
AZ963–1C–3DE
AZ963–1C–5DE
AZ963–1C–6DE
AZ963–1C–9DE
AZ963–1C–12DE
AZ963–1C–18DE
AZ963–1C–24DE
AZ963–1C–36DE
AZ963–1C–48DE
*
Substitute “1B” in place of “1A” for 1 Form B contact. Add suffix “E” to “1A” or “1B” or “1C” for silver tin oxide contacts.
MECHANICAL DATA
PC BOARD LAYOUT
Not used
on 1 Form B relay
Viewed toward terminals
Not used
on 1 Form A relay
WIRING DIAGRAM
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
