TECHNICAL DATASHEET
LED Driver
LNE-120W Series / LNE- V120W
LNE

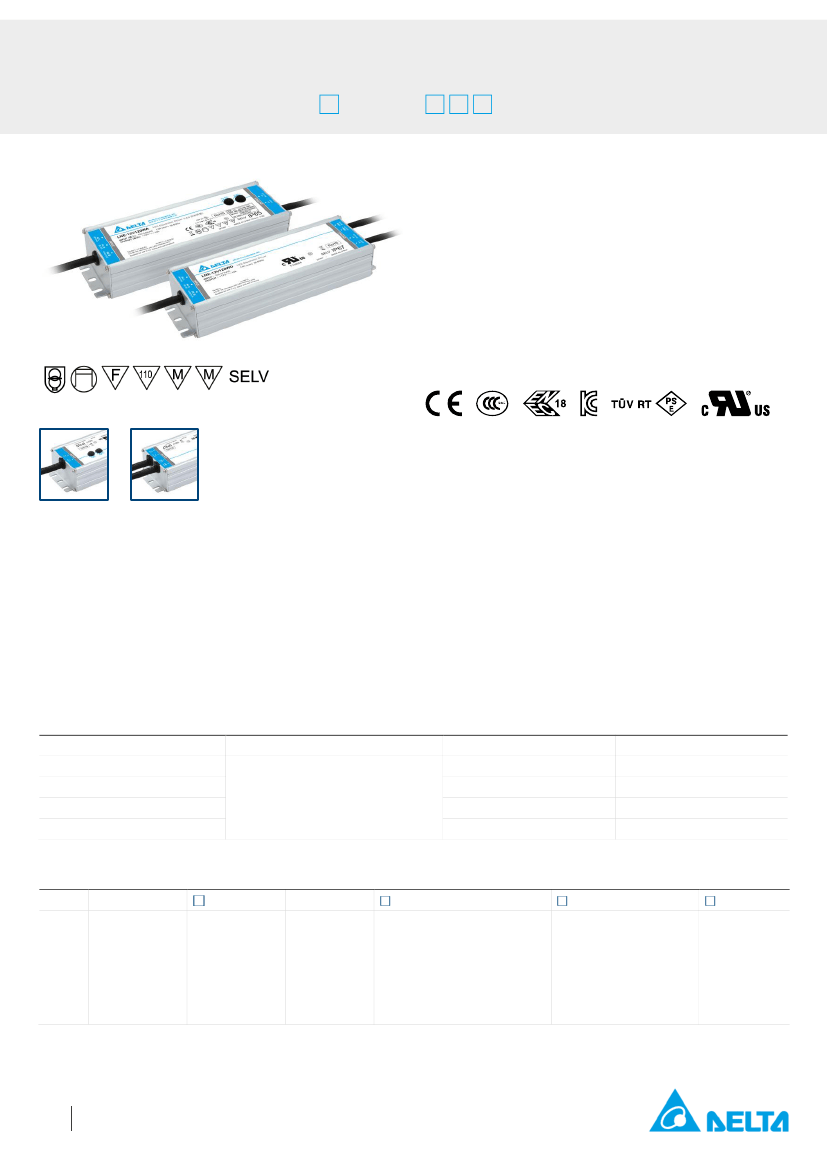

Highlights & Features
North American and International AC voltage options
Up to 93.5% efficiency
6kV common mode & 4kV differential mode surge immunity
Active PFC. Meets IEC/EN 61000-3-2, Class C
Adjustable voltage & current; dimming option available
IP65 or IP67 assembly for indoor and outdoor applications
Safety Standards
Package Type
CB Certified for worldwide use
Model Number:
LNE-☐V120W☐☐☐
Unit Weight:
0.98 kg (2.16 lb)
Dimensions (L x W x D):
220 x 68 x 38.8 mm
A
D
(8.66 x 2.68 x 1.53 inch)
General Description
Delta LNE series of LED drivers comes with different combinations of features to suit different application requirements and energy
optimization needs. Options include externally adjustable output voltage and current levels, and adjustment of LED brightness via 3-way
built-in dimming function. All models in the LNE series come with a full corrosion resistant aluminum casing, major international safety
certifications and are compliant with EN55015 immunity/Emissions/Harmonic requirements. The products are designed and rigorously
tested to work in various indoor and outdoor LED lighting conditions. High surge immunity (common mode: 6kV, differential mode: 4kV),
MTBF > 700,000hrs and compliance to IP65/IP67, all make the Delta LNE series an essential part of an energy efficient LED lighting
power solution for both indoor and outdoor applications.
Model Information
LNE LED Driver
Model Number
LNE-12V120W☐☐☐
LNE-24V120W☐☐☐
LNE-36V120W☐☐☐
LNE-48V120W☐☐☐
Input Voltage Range
90-305Vac (LNE-☐V120W☐A☐)
90-264Vac (LNE-☐V120W☐C☐)
Rated Output Voltage
12Vdc
24Vdc
36Vdc
48Vdc
Rated Output Current
10.00A
5.00A
3.40A
2.50A
Model Numbering
LN
LED
Driver
E–
Product Series
E – High
efficiency and
PFC
V
Output Voltage
12V
24V
36V
48V
120W
Output Power Package Type
(120W series A – IP65 with potentiometers
model)
to adjust output voltage &
constant current level
D – IP67 with dimming cable
to adjust constant current
level
Safety Approval
A – UL approval
C – ENEC, CE, KC,
PSE and CCC approval
Variable
A – Delta
standard
1
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (Sep 2018, Rev. 04)
TECHNICAL DATASHEET
LED Driver
LNE-120W Series / LNE- V120W
Specifications
Model Number
LNE-12V120W☐
LNE-24V120W☐
LNE-36V120W☐
LNE-48V120W☐
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range*
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
115Vac
230Vac
277Vac
Max Inrush Current (Cold Start)
Power Factor at 100% Load
100-277Vac (LNE-☐V120W☐A☐)
100-240Vac (LNE-☐V120W☐C☐)
90-305Vac (LNE-☐V120W☐A☐)
90-264Vac (LNE-☐V120W☐C☐)
50-60Hz
47-63Hz
1.50A max. @ 115Vac, 0.70A max. @ 230Vac,
0.65A max. @ 277Vac
90.0% typ.
92.0% typ.
92.0% typ.
91.5% typ.
93.0% typ.
93.0% typ.
91.5% typ.
93.0% typ.
93.0% typ.
92.0% typ.
93.5% typ.
93.5% typ.
65A typ. @ 230Vac
0.98 typ. @ 115Vac
0.95 typ. @ 230Vac
0.93 typ. @ 277Vac
< 20% @ 115Vac/60 Hz & 230Vac/50 Hz (≥ 50% load)
< 20% @ 277Vac/50 Hz (≥ 75% load)
< 0.75mA @ 305Vac (LNE-☐V120W☐A☐)
< 0.75mA @ 264Vac (LNE-☐V120W☐C☐)
Total Harmonic Distortion
Leakage Current
* Output power is de-rated at low input voltage. Please refer to Fig. 2 on page 10.
2
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (Sep 2018, Rev. 04)
TECHNICAL DATASHEET
LED Driver
LNE-120W Series / LNE- V120W

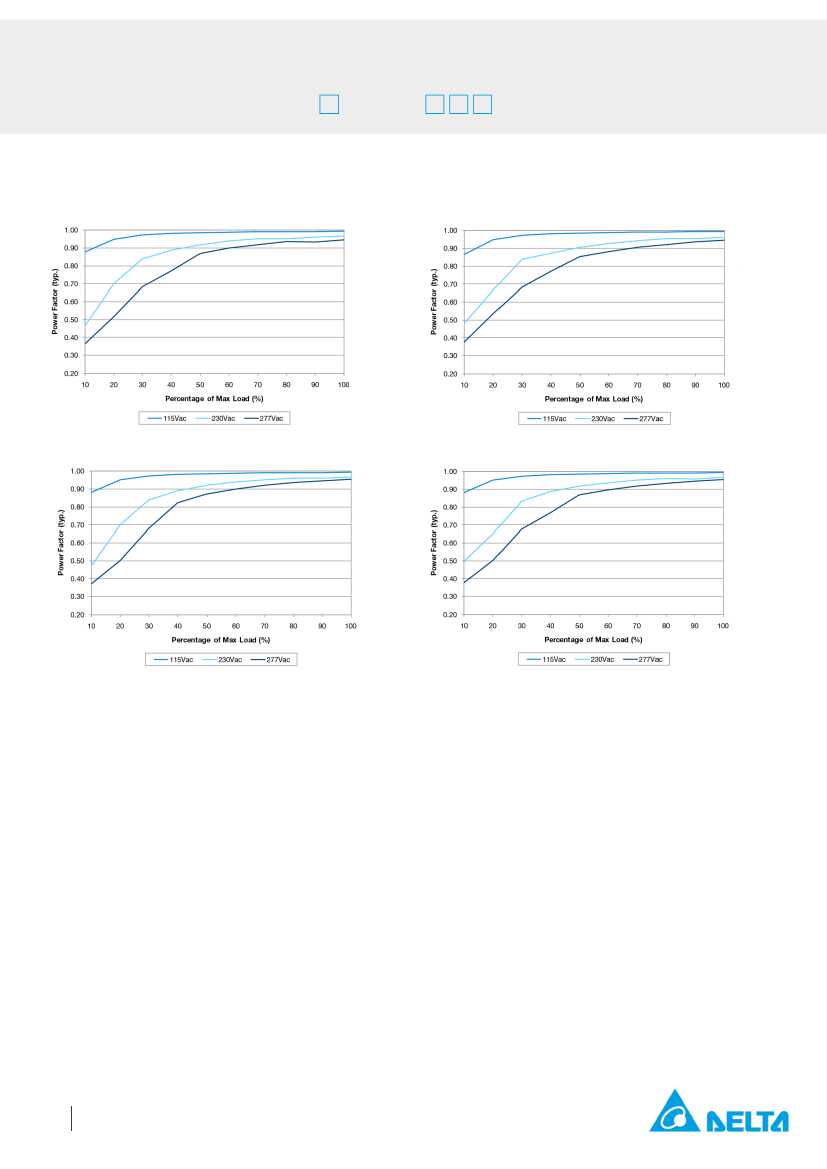

Power Factor VS Output Load
LNE-12V120W☐
LNE-24V120W☐
LNE-36V120W☐
LNE-48V120W☐
3
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (Sep 2018, Rev. 04)
TECHNICAL DATASHEET
LED Driver
LNE-120W Series / LNE- V120W
Efficiency VS Output Load at Nominal Output Voltage
LNE-12V120W☐
LNE-24V120W☐
LNE-36V120W☐
LNE-48V120W☐
4
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (Sep 2018, Rev. 04)
TECHNICAL DATASHEET
LED Driver
LNE-120W Series / LNE- V120W
Model Number
LNE-12V120W☐
LNE-24V120W☐
LNE-36V120W☐
LNE-48V120W☐
Output Ratings / Characteristics*
Nominal Output Voltage
LED System Voltage Range in CC Mode
Output Voltage Adjustment Range**
Nominal Output Current
Output Current Adjustment Range**
Output Power
Line Regulation
@ 90-305Vac (LNE-☐V120W☐A☐)
@ 90-264Vac (LNE-☐V120W☐C☐)
Load Regulation (0-95% load)
@ 90-305Vac (LNE-☐V120W☐A☐)
@ 90-264Vac (LNE-☐V120W☐C☐)
PARD*** (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response
(Overshoot & Undershoot O/P Voltage)
** For LNE-☐V120WA☐☐ package type only.
*** PARD is measured with an AC coupling mode, and in parallel with 0.1µF ceramic capacitor & 47µF electrolytic capacitor.
12Vdc
6-12Vdc
10.8-13.5V
10.0A
5.0-10.0A
120W
± 0.5%
24Vdc
12-24Vdc
22.0-27.0V
5.0A
2.5-5.0A
120W
36Vdc
18-36Vdc
33.0-40.0V
3.4A
1.7-3.4A
122.4W
48Vdc
24-48Vdc
43.0-53.0V
2.5A
1.25-2.5A
120W
± 2.0%
± 1.0%
± 0.5%
± 0.5%
< 150mVpp
< 150mVpp
< 200mVpp
< 200mVpp
< 50ms @ 115Vac & 230Vac & 277Vac
1200ms typ. @ 115Vac (100% load)
500ms typ. @ 230Vac & 277Vac (100% load)
16ms typ. @ 115Vac & 230Vac & 277Vac (100% load)
± 5% @ 0-90% load, @ 115Vac & 230Vac & 277Vac
(Slew Rate: 0.1A/µS)
* For power de-rating from 60°C to 70°C, see power de-rating at Fig.1 on page 10.
5
All parameters are specified at 25°C ambient for all products unless otherwise indicated.
www.DeltaPSU.com (Sep 2018, Rev. 04)
