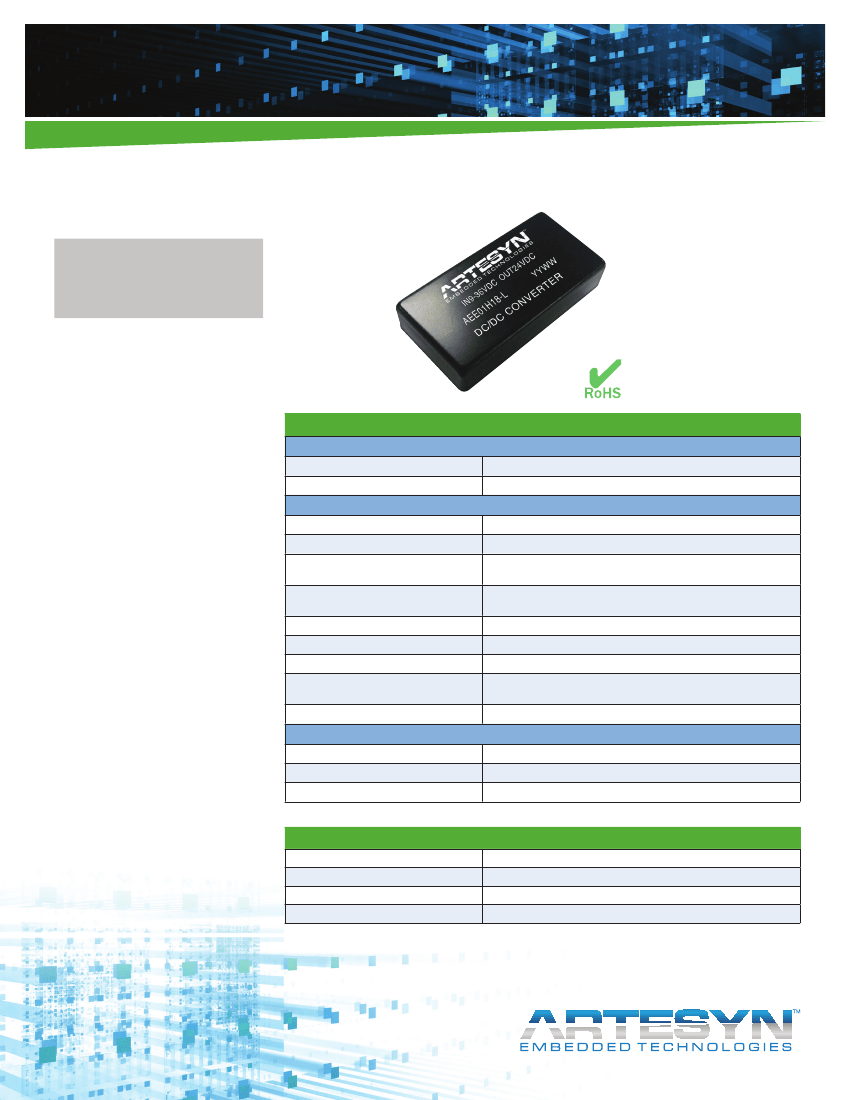

POWER
Data Sheet
Total Power:
40 Watts
Input Voltage:
12 V, 24 V or 48 V
# of Outputs:
Single, Dual
SPECIAL FEATURES
Encapsulated
Wide 4:1 input range
1” x 2” DIP package
1500 Vdc I/O isolation
Single and Dual output
OCP, OVP, OTP protection
Remote On/Off
High efficiency - 91%
Operating temp. range –40°C to
+85 °C (with derating)
AEE Series
40 Watts
Electrical Specifications
Input
Input range
Efficiency
2
9 to 36 Vdc; 18 to 75 Vdc
90% @ 5 Vo
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
OCP and S/C protection
Over voltage protection
OTP protection
Switching frequency
Temperature coefficient
±1.0%
±0.5%
Single output: ±0.5%
Dual output: ±1.0%
3.3 Vo, 5 Vo: 100 mV
Others: 150 mV
Hiccup
Latched
Latched
24 Vdc: 286 KHz
Others: 320 KHz
±0.02 /°C
SAFETY
UL/cUL 60950-1 (CSA)
IEC/EN 60950-1
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
1500 Vdc min.
1000 Mohm
1500 pF
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
Calculated MTBF
-40 °C to +85 °C
-50 °C to +125 °C
5% to 95% (non-condensing)
328 Khrs
AEE Series Data Sheet

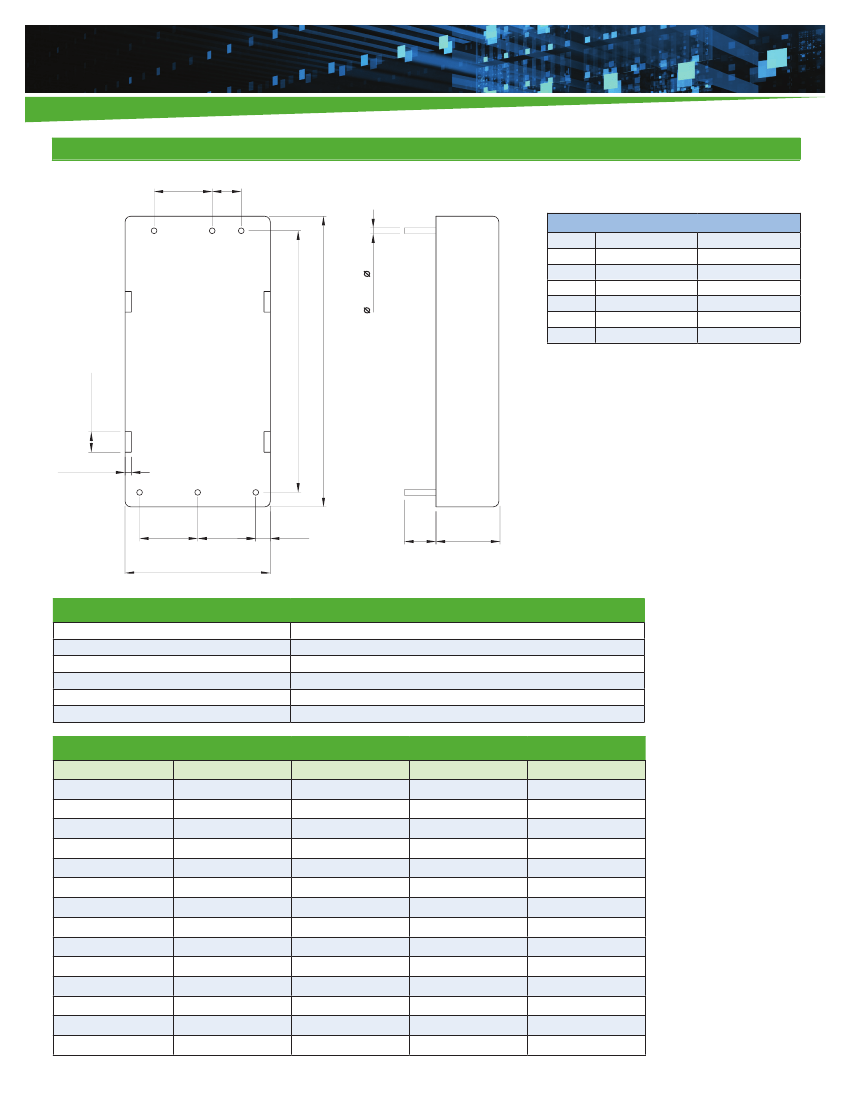

Mechanical Drawings
10.16
[0.40]
3
5.08
[0.20]
Pin Connectors
1.00 [ 0.04]
2
1
Pin No.
1
2
3
4
5
6
Single Output
+Vin
-Vin
Remote On/Off
+Vout
-Vout
Trim
Dual Output
+Vin
-Vin
Remote On/Off
+Vout
Common
-Vout
45.72 [1.80]
3.6 [0.14]
Bottom View
50.8 [2.00]
T: 11.0 mm (0.43 inch) for 24 V Output Models
T: 10.2 mm (0.40 inch) for Other Output Models
• All dimensions in mm (inches)
• Tolerance: X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
• Pin diameter
Ø
1.0 ±0.05 (0.04±0.002)
1.1 [0.04]
6
5
4
10.16
[0.40]
10.16
[0.40]
2.54
[0.10]
5.5
[0.22]
T
25.4 [1.00]
Physical Characteristics
Case Size (24 V Output)
Case Size (Other Output)
Case Material
Base Material
Pin Material
Weight
50.8 x 25.4 x 11 mm (2.0 x 1.0 x 0.43 inches)
50.8 x 25.4 x 10.2 mm (2.0 x 1.0 x 0.40 inches)
Aluminium Alloy, Black Anodized Coating
FR4 PCB (flammability to UL 94V-0 rated)
Copper Alloy with Gold Plate Over Nickel Subplate
30 g
Ordering Information
Model Number
Input Voltage
Output 1 Voltage
Output 2 Voltage
Maximum Power
AEE08F18-L
AEE08A18-L
AEE03B18-L
AEE02C18-L
AEE01H18-L
AEE01BB18-L
AEE01CC18-L
AEE08F36-L
AEE08A36-L
AEE03B36-L
AEE02C36-L
AEE01H36-L
AEE01BB36-L
AEE01CC36-L
9 - 36 V
9 - 36 V
9 - 36 V
9 - 36 V
9 - 36 V
9 - 36 V
9 - 36 V
18 - 75 V
18 - 75 V
18 - 75 V
18 - 75 V
18 - 75 V
18 - 75 V
18 - 75 V
3.3 V @ 8 A
5V@8A
12 V @ 3.33 A
15 V @ 2.67 A
24 V @ 1.67 A
12 V @ 1.67 A
15 V @ 1.33 A
3.3 V @ 8 A
5V@8A
12 V @ 3.33 A
15 V @ 2.67 A
24 V @ 1.67 A
12 V @ 1.67 A
15 V @ 1.33 A
-12 V @ 1.67 A
-15 V @ 1.33 A
-12 V @ 1.67 A
-15 V @ 1.33 A
26.4 W
40 W
40 W
40 W
40 W
40 W
40 W
26.4 W
40 W
40 W
40 W
40 W
40 W
40 W
To order the converter with heatsink, please add a suffix –HS (e.g. AEE08F18-LHS) to order code.
AEE Series Data Sheet
Mechanical Drawings

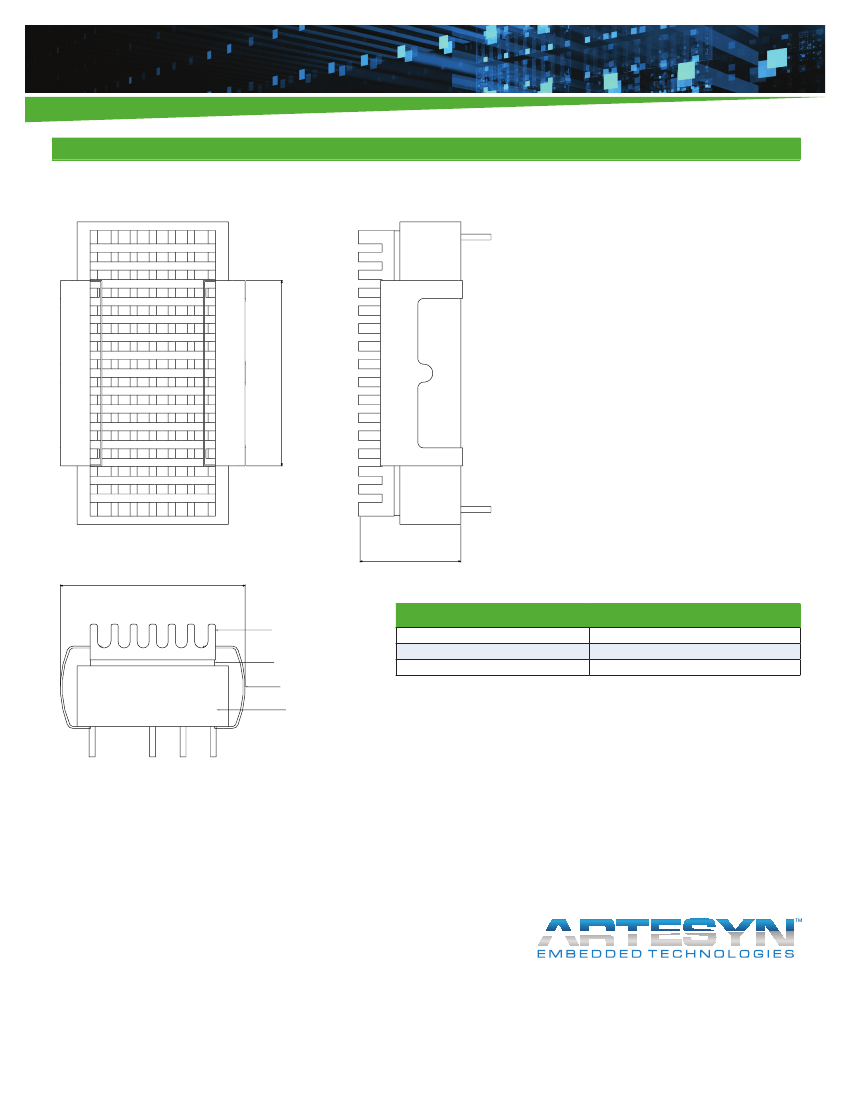

Heatsink (Option –HS)
The advantages of adding a heatsink are:
31.1[1.22]
1. To help heat dissipation and increase the stability and
reliability of DC/DC converters at high operating
temperature atmosphere.
2. To upgrade the operating temperature of DC/DC
converters, please refer to Derating Curve.
17.2[0.68]Max
31.0[1.22]Max
Heat-sink
Thermal pad
C lamp
C onverter
Physical Characteristics
Heatsink Material:
Finish:
Weight:
Aluminum
Black Anodized Coating
9g
Notes:
1. All specifications are subject to change without notice. Mechanical drawings are for reference only.
2. Warranty: 3 yr
3. Label and logo appearance may vary from what is shown on mechanical drawings.
