Power cable - SAC-4P-MINMR/ 5,0-547/MINFS - 1416612
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

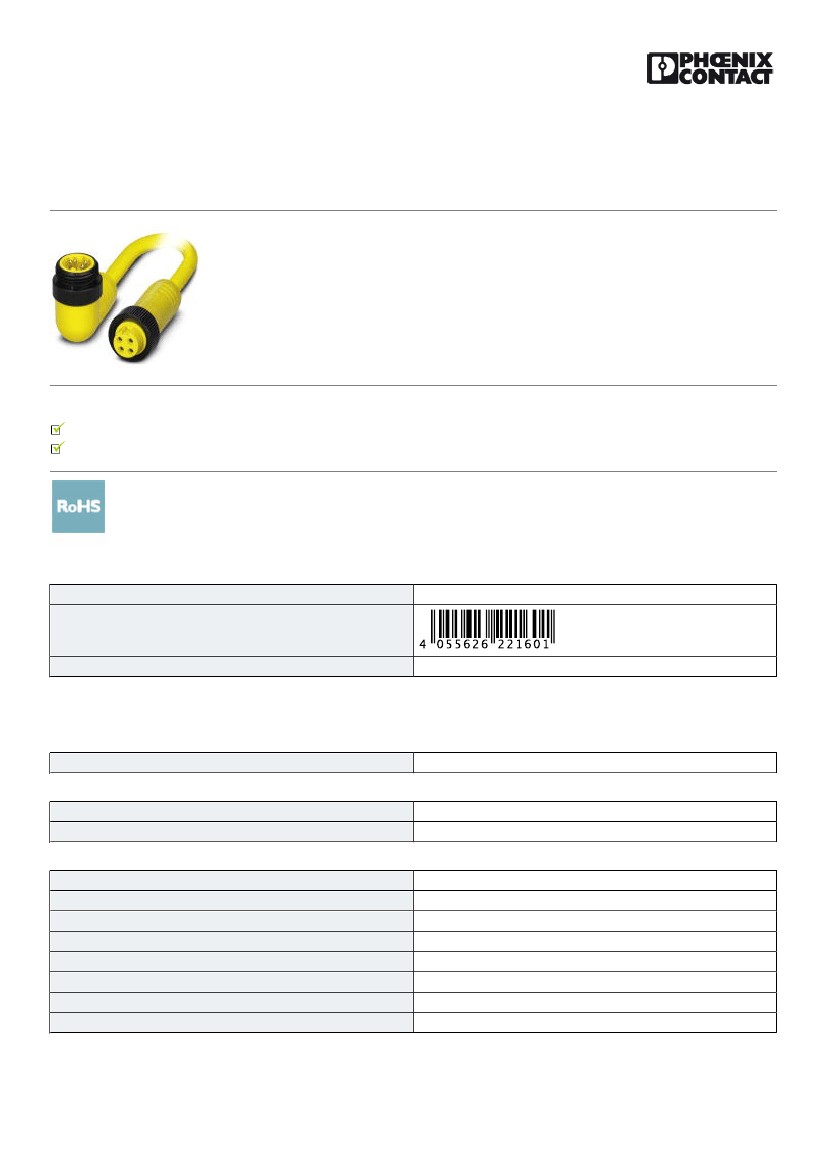

Power cable, 4-position, PVC, yellow, Plug angled 7/8"-16UNF, on Socket straight 7/8"-16UNF, cable length:
5m
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: connectors and cables with a large conductor cross section for power supply
Key Commercial Data
Packing unit
GTIN
GTIN
4055626221601
1 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 105 °C (Plug / socket)
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Status display
10 A
300 V AC
300 V DC
4
yellow
≥ 100 MΩ
A - standard
No
11/29/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1416612
Power cable - SAC-4P-MINMR/ 5,0-547/MINFS - 1416612
Technical data
General
Protective circuit/component
Insertion/withdrawal cycles
Torque
Unwired
100
10 lb
f
-in.
1.12 Nm
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
CuZn
AU
PVC
PVC
Anodized aluminum
Cable
Cable type
Cable abbreviation
AWG signal line
Conductor cross section signal conductor
Conductor cross section voltage supply
Wire colors
External sheath, color
External cable diameter
Outer sheath, material
Conductor material
Nominal voltage, cable
Flame resistance
Other resistance
Ambient temperature (operation)
ITC/PLTC
547
18
4 x AWG 18
41 x AWG 34
Brown 1, white 2, blue 3, black 4
yellow
6.00 mm
PVC
Bare Cu litz wires
300 V
UL 1581, FT4
UV resistant (720 h) UL 2556
-40 °C ... 105 °C (cable, fixed installation)
-30 °C ... 105 °C (cable, flexible installation)
Standards and Regulations
Flame resistance
Other resistance
UL 1581, FT4
UV resistant (720 h) UL 2556
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/29/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1416612
Power cable - SAC-4P-MINMR/ 5,0-547/MINFS - 1416612

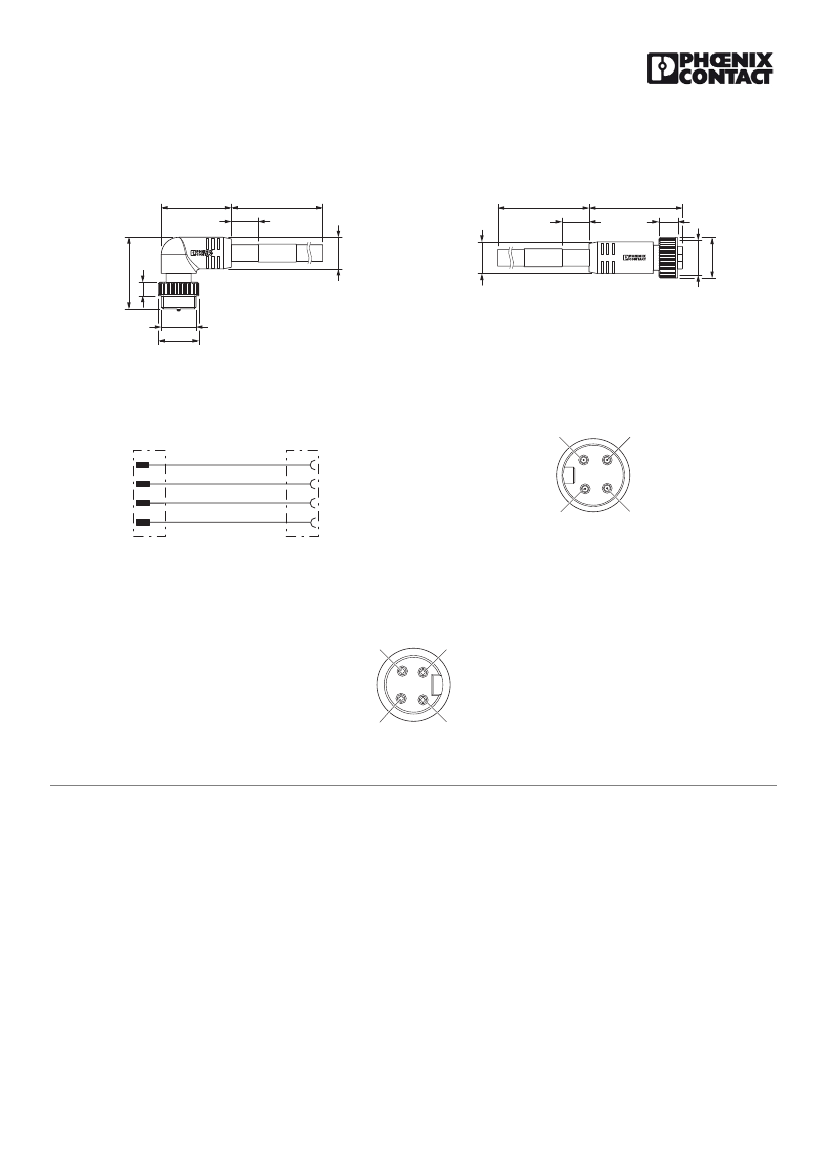

Dimensional drawing
44,2
25-50
L
Dimensional drawing
L
25-50
59,4
11,9
7/8"-16 UN
Ø20
Ø20,2
40,4
8,6
7/8"-16 UN
7/8"-16UNF socket, straight
Ø25,5
7/8"-16UNF plug, angled
Circuit diagram
Schematic diagram
4
3
1
2
3
4
1 BN
2 WH
3 BU
1
2
4 BK
Pin assignment, plug, 7/8"-16UNF, 4-pos., view of male side
Contact assignment of 7/8" plugs/sockets
Schematic diagram
3
4
2
1
Pin assignment, socket, 7/8"-16UNF, 4-pos., view of female side
