PE1 Series
Specifications
:
Rated Voltage:
250VAC Maximum - 50/60 Hz
Rated Current:
115VAC
250VAC
10A
10A
Current Overload:
6X for 8 seconds
Hi-Pot Test (1 min):
Line to Ground
1500VAC
Line to Line
2250VDC
Insulation Resistance:
9 x 10
9
Ω
at 100VDC
Ambient Temperature:
40°C Max at rated current
Humidity Range:
0% to 95% R.H.
Termination:
• QC – Quick Connect
• IEC Receptacle
Maximum Leakage Current:
Each Line to Ground
PE1
PE1-PO
115VAC, 60Hz:
0.25mA
0.4mA
250VAC, 50Hz:
0.40mA
.75mA
Voltage Select Card:
Installed in 120VAC position
unless otherwise specified
Agency Approvals:
Combination
POWER ENTRY MODULES
Features:
• RFI Filter Module Combines IEC Connector, Fusing,
Optional Voltage Select and On/Off Switch into a
Single, Space-Efficient Assembly
• Enhanced Low Frequency Response with No
Resonant Peaks
• Fully Shielded for Radiative Noise Control
• Accepts Either U.S. or European Standard Fuse
Sizes. Dual or Single Power Line Fusing
L
L INE
FUSING
1 POLE
1
2
3
N
2 POLE
G
4
N
G

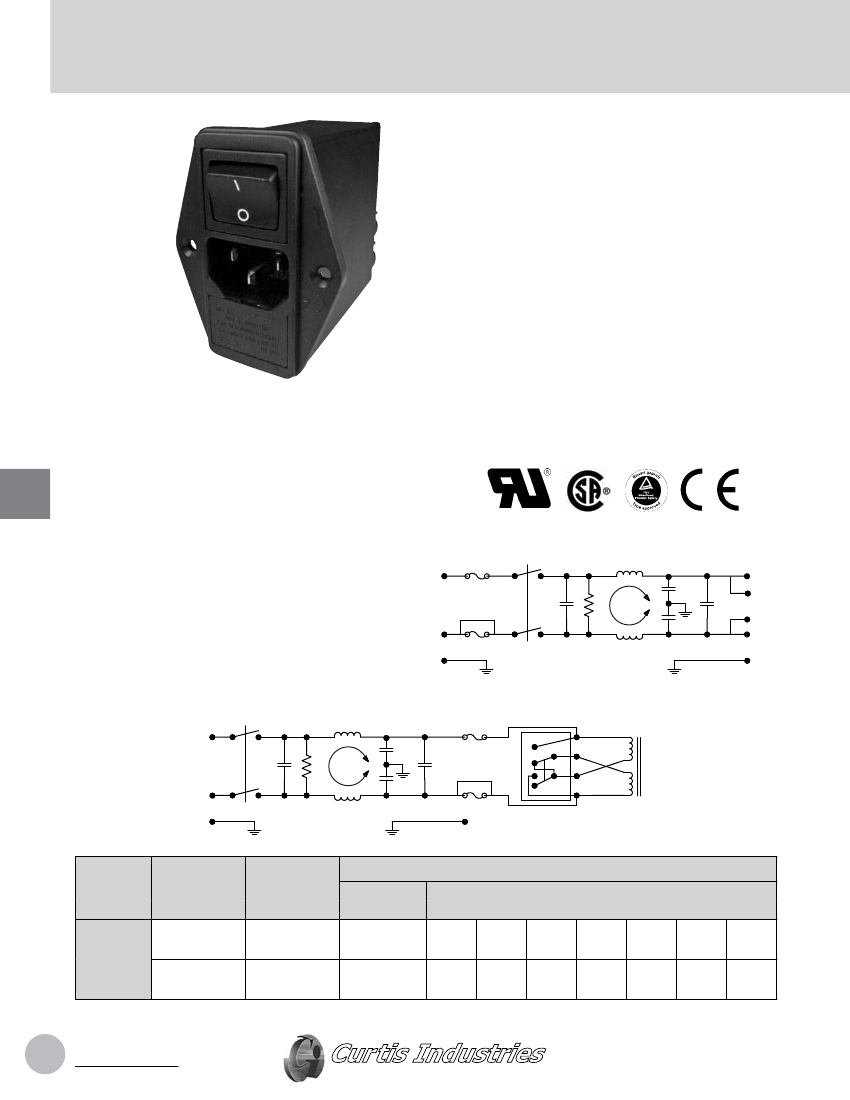

PE1 Series Simplified Schematic with Voltage Selector
L
L INE
FUSING
1 POLE L
1
LOA D
2
3
4
11 0 V
N
G
2 POLE
G
N
11 0 V
Nominal
Current
Rating
MINIMUM INSERTION LOSS - dB (50 ohm Circuit)
Part
Number
Termination
Line/Load
MODE
Common
Differential
Common
Differential
Frequency - MHz
.50
.10
5.0
30
30
33
30
38
35
38
35
45
55
48
65
.05
10
10
13
10
.15
20
20
24
20
10
50
60
54
65
30
50
55
54
55
PE1XXX10
IEC/QC
IEC/QC
10A
PE1XXXP0
NOTE: Other combinations of terminals may be specified on special order.
56
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.
L OAD
PE1 Series Simplified
Schematic without Voltage Selector
L
PE1
(10Amp)

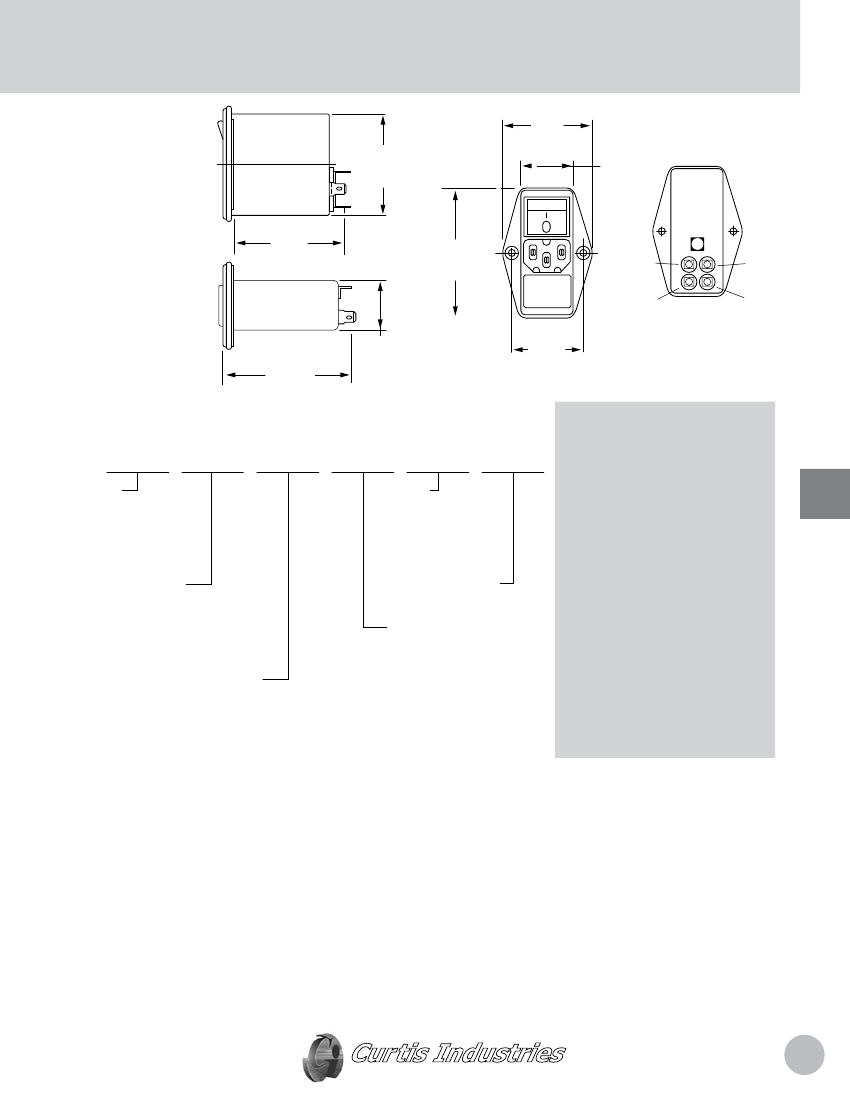

Dimensions
Refer to Standard
Mounting Cutouts on
Page 58
L
I
N
E
L
O
A
D
2.41
(61,2)
Max.
1.99
(50,5)
1.12
(28,4)
3.00
(76,2)
2.58
(65,5)
Max.
1
3
2
H
1.575
(40,01)
WITH
VOLTAGE
SELECTOR
4
3.20
(81,3)
1.15
(29,2)
Max.
Combination
How to Order
PE1
SERIES
PE = Power Entry
PM = Medical
Power Entry
MOUNTING
METHOD & FUSING
6 = Screw Mount Metric or U.S. Fuse*
8 = Screw Mount 2 Metric or U.S. Fuses
* U.S. Fuse not available without
voltage selector
VOLTAGE SELECTOR
0 = No Selector
3 = 115-230 VAC
X
X
X
X
0
INSTALLATION INSTRUCTION
IMPORTANT – CHANGING
FUSE/VOLTAGE
PE1
To change fuse, remove power cord.
Remove voltage selector and replace
fuse. Reinsert fuse holder. To change
the operating voltage on the PE1
Series, remove the power cord and
rotate fuse holder block until desired
voltage aligns with the mark on the
module housing.
• Filter shipped without fuse.
Always use caution when selecting
and changing fuses and voltage
requirements. Curtis Industries is
not responsible for malfunction due
to improper installation/selection of
fuse and/or voltage select.
OPTIONS
(Consult Factory)
1 = Standard Units
P = High Performance
Insertion Loss
CURRENT RATING
0 = 10 AMP
SWITCH
0 = No Switch
1 = SPST Rocker Switch
2 = DPST Rocker Switch
POWER ENTRY MODULES
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
57
