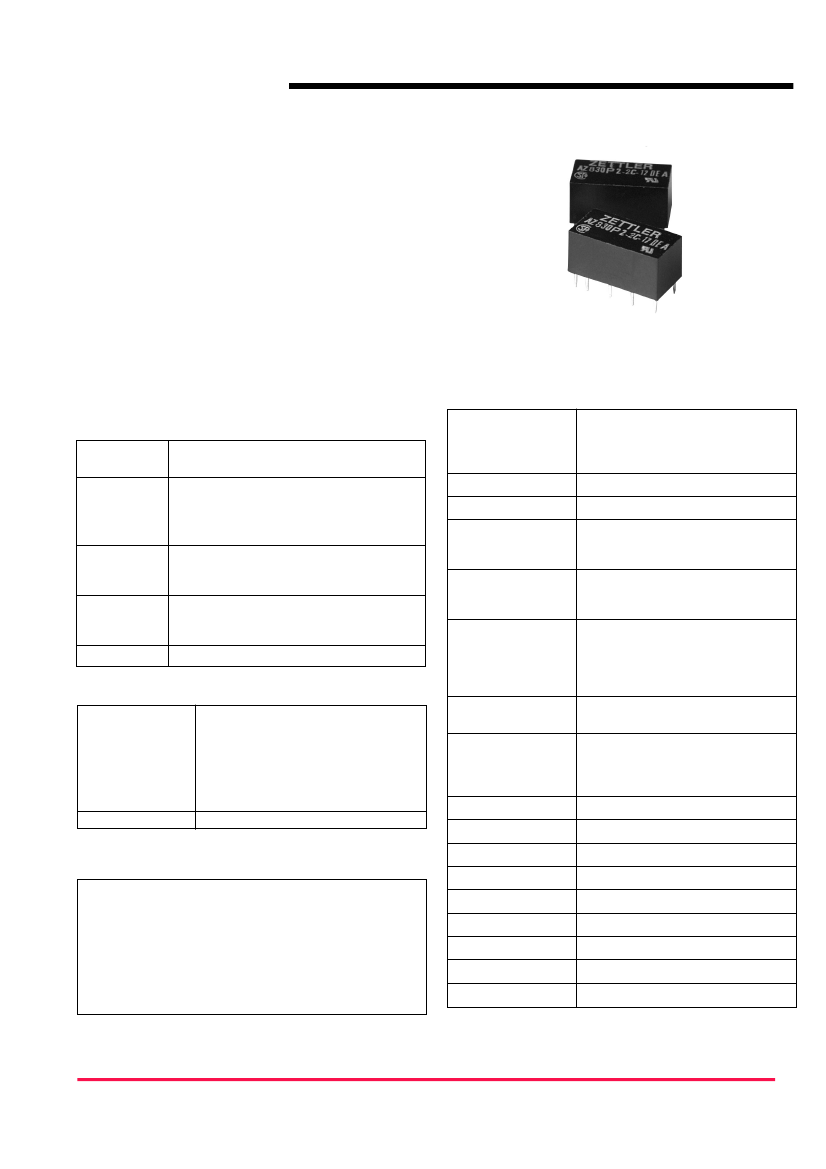

AZ830P
POLARIZED DIP RELAY
BISTABLE (LATCHING)
FEATURES
•
•
•
•
•
•
•
•
•
High sensitivity, 90 mW pickup
Low profile DIP package
Meets FCC Part 68.302 1500 V lightning surge
Meets FCC Part 68.304 1000 V dielectric
Epoxy sealed
DC coils to 48 VDC
High switching capacity, 60 W, 125 VA
Fits standard 16 pin IC socket
UL file E43203; CSA file LR 36664
GENERAL DATA
CONTACTS
Arrangement
Ratings
DPDT (2 Form C)
Bifurcated crossbar contacts
Resistive load:
Max. switched power: 60 W or 125 VA
Max. switched current: 2 A
Max. switched voltage: 150 VDC or 300 VAC
Rated Load
UL
Material
2 A at 30 VDC
1 A at 120 VAC
Silver alloy, gold clad. Silver palladium, gold clad
available upon request (not recommended for
current greater than 1 Amp).
< 50 milliohms initially
Life Expectancy
Mechanical
Electrical
Set Time (typical)
Reset Time (typical)
Capacitance
Minimum operations
1 x 10
8
1 x 10
5
at 2 A, 30 VDC or 1 A, 125 VAC
2 x 10
6
at 1 A, 30 VDC or .5 A, 125 VAC
3 ms at nominal coil voltage
3.5 ms at nominal coil voltage
Contact to contact: 1.0 pF
Contact set to contact: 1.0 pF
Contact to coil: 2.0 pF
At 10 mA contact current
1.5 ms at operate N.O. side
2.5 ms at operate N.C. side
1500 Vrms contact to coil
1000 Vrms between contact sets
1000 Vrms across contacts
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
1000 megohms min. at 20°C, 500 VDC,
50% RH
At nominal coil voltage
Standard: -40°C (-40°F) to 85°C (185°F)
Sensitive: -40°C (-40°F) to 95°C (203°F)
Both: -40°C (-40°F) to 105°C (221°F)
0.062" (1.5 mm) DA at 10–55 Hz
40 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
5 grams
Bounce (typical)
Dielectric Strength
(at sea level)
Resistance
COIL (Polarized)
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
Standard coil: 176 mW
Sensitive coil: 90 mW
1.2 W at 20°C (68°F) ambient
Standard: 38°C (68°F) at nominal coil voltage
Sensitive: 21°C (38°F) at nominal coil voltage
Max. 115°C (239°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
Insulation Resistance
Ambient Temperature
Operating
Storage
Vibration
NOTES
1.
2.
3.
4.
All values at 20°C (68°F).
Relay may pull in with less than “Must Operate” value.
Relay has fixed coil polarity.
Relay adjustment may be affected if undue pressure is exerted
on relay case.
5. For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
6. Specifications subject to change without notice.
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2003-04-08
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ830P
RELAY ORDERING DATA
STANDARD RELAYS
COIL SPECIFICATIONS
Nominal
Coil
VDC
5
6
9
12
24
48
5
6
9
12
24
48
Max.
Continuous
VDC
7.5
9.0
13.5
18.0
36.0
72.0
11.0
13.0
19.5
26.0
53.0
106.0
Coil
Resistance
± 10%
69.4
100
225
400
1,600
6,400
139
200
450
800
3,200
12,800
Set
Reset
VDC
3.5
4.2
6.3
8.4
16.8
33.6
3.5
4.2
6.3
8.4
16.8
33.6
Maximum Switching Capacity
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
ORDER NUMBER*
AZ830P2–2C–5DE
AZ830P2–2C–6DE
Current
AZ830P2–2C–9DE
AZ830P2–2C–12DE
AZ830P2–2C–24DE
AZ830P2–2C–48DE
AZ830P2–2C–5DSE
AZ830P2–2C–6DSE
AZ830P2–2C–12DSE
AZ830P2–2C–24DSE
AZ830P2–2C–48DSE
AZ830P2–2C–9DSE
1.0
.9
.8
.7
.6
.5
.4
.3
.2
AC Resistive Load
DC Resistive Load
SENSITIVE RELAYS
Voltage
* Add suffix “A” for silver palladium gold clad contacts.
MECHANICAL DATA
.788
(20.0)
.390
(9.9)
Coil Temperature Rise
Standard
110
Full Load
100
Coil Temperature Rise ¡C
.386
.366 (9.8)
(9.3)
90
80
70
60
50
40
30
20
10
60%
80%
100%
120%
140%
160%
180%
No Load
.138
(3.5)
.012 ± .005
(0.3 ± 0.13)
TYP
.044
(1.1)
.100
(2.54)
.200
(5.07)
.200
(5.07)
.200
(5.07)
(.024 ± .005)
(0.6 ± 0.13)
TYP
PC BOARD LAYOUT
0.03 DIA
(0.8)
(10 HOLES)
.044
(1.1) REF
Percent of Nominal Coil Voltage
Sensitive
60
.044
(1.1) REF
Coil Temperature Rise˚C
50
Full Load
No Load
40
Viewed toward terminals
TWO COIL LATCHING
WATCH FOR POLARITY
0.1
(2.54)
30
WIRING DIAGRAM
8
Diagrams show the
“reset” position before
energized with polarity
as shown
20
1
+
2
+
4
6
10
60%
80%
100%
120%
140%
160%
180%
Percent of Nominal Coil Voltage
–
16
–
15
13
11
9
Viewed toward terminals
Set
Reset
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2003-04-08
Junkersstrasse 3, D-82178 Puchheim, Germany
1000
100
10
.1
50
60
70
80
90
400
500
600
700
800
900
20
30
40
200
300
