PS2-2RP/2C/4CH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PS2-2RP/2C/4CH

PS2-2RP/2C/4CH: DescriptionCONN PLUG PNL MNT 100A; CategoryThe connector; File Size1MB，12 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

PS2-2RP/2C/4CH Overview

CONN PLUG PNL MNT 100A

PS2-2RP/2C/4CH Parametric

Parameter Name	Attribute value
Connector type	plug, combination
Contact type	Male pin
Number of pins	8 (2 power supplies (loads) + 6)
spacing	-
spacing	-
Installation type	Panel mounting
Contact termination	crimp
Fastening type	latch holder
color	black
characteristic	Mounting flange
Remark	Does not include contacts

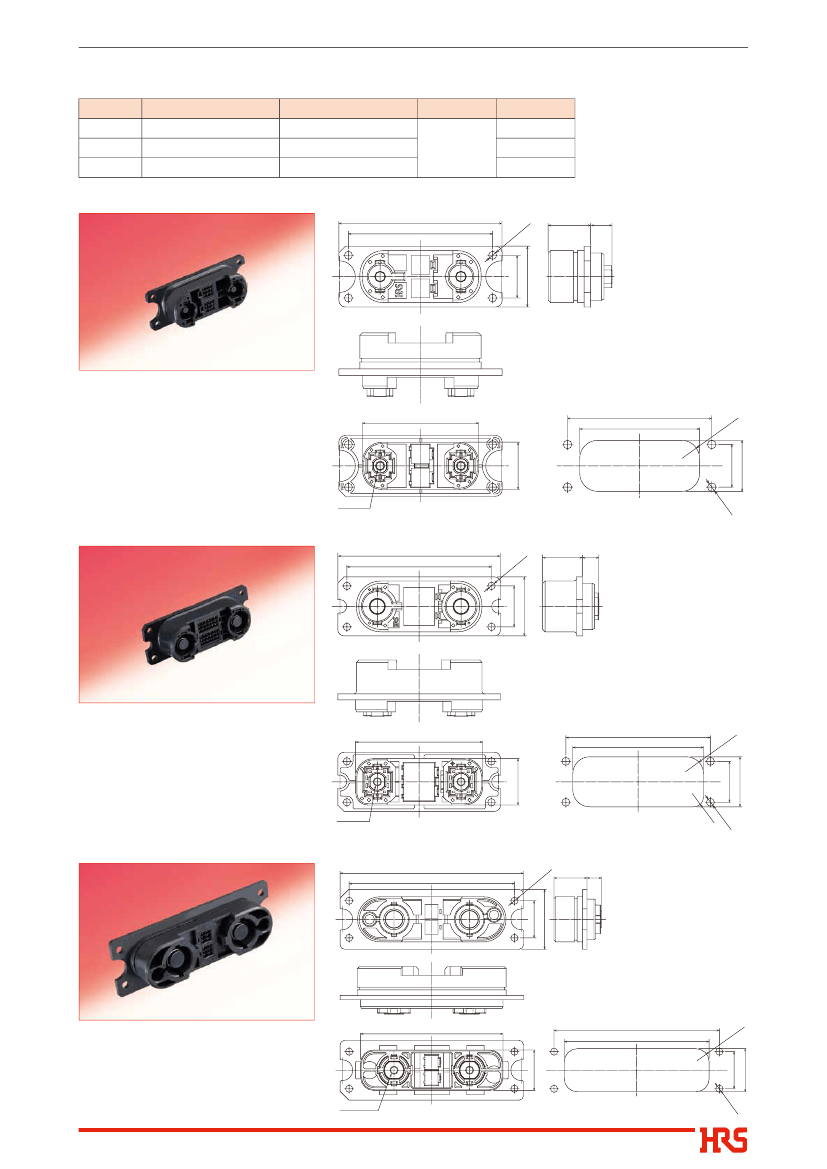

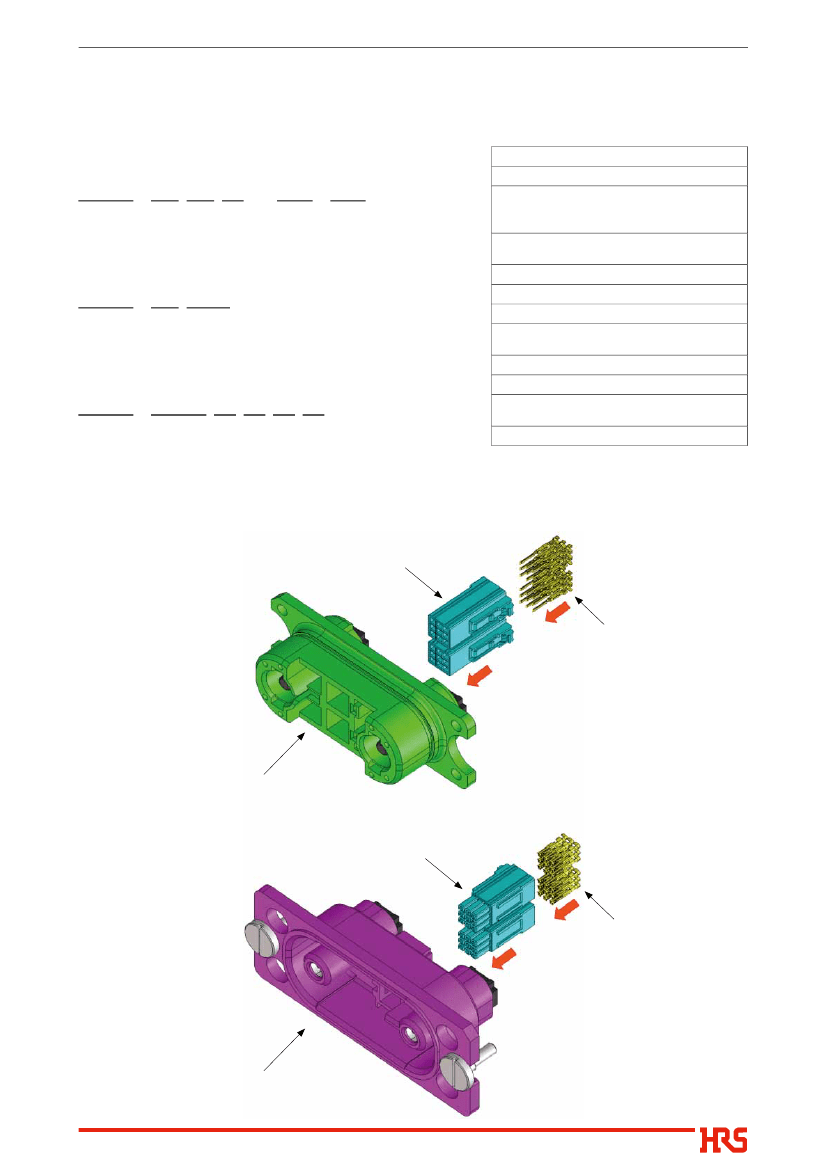

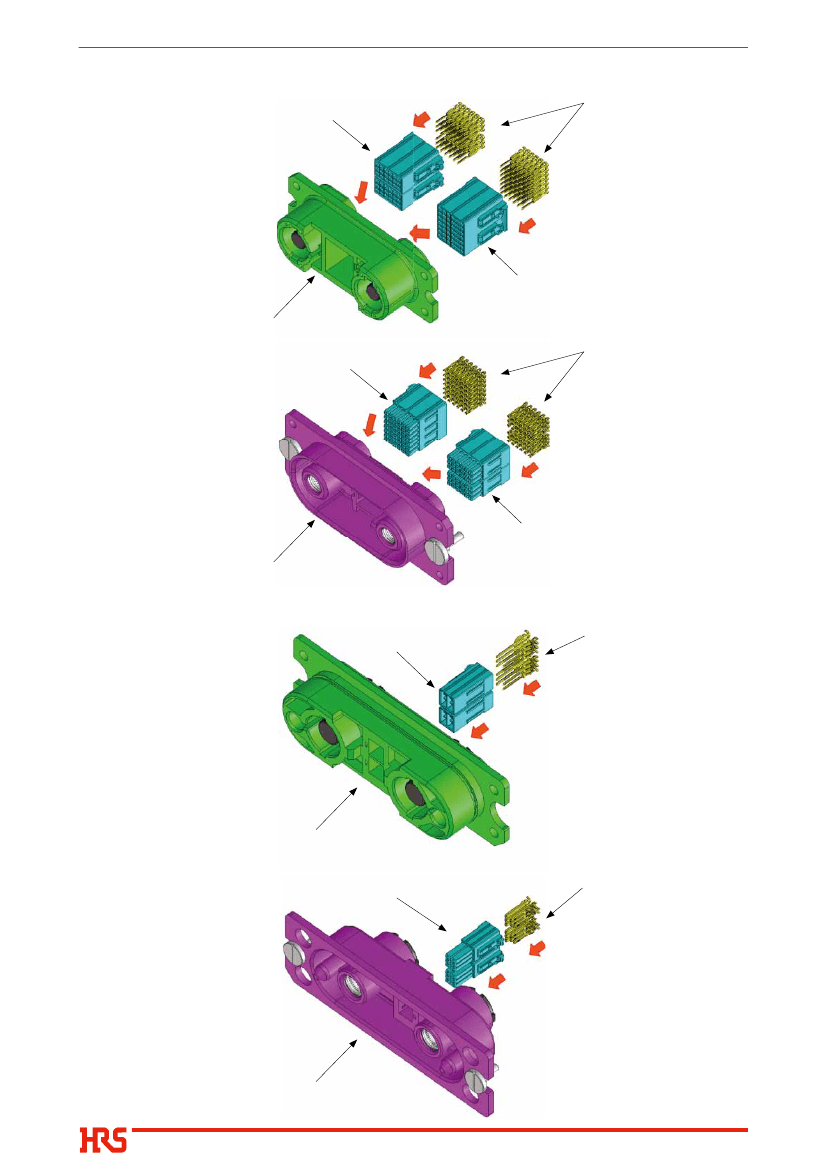

Preview

Download Datasheet

View All

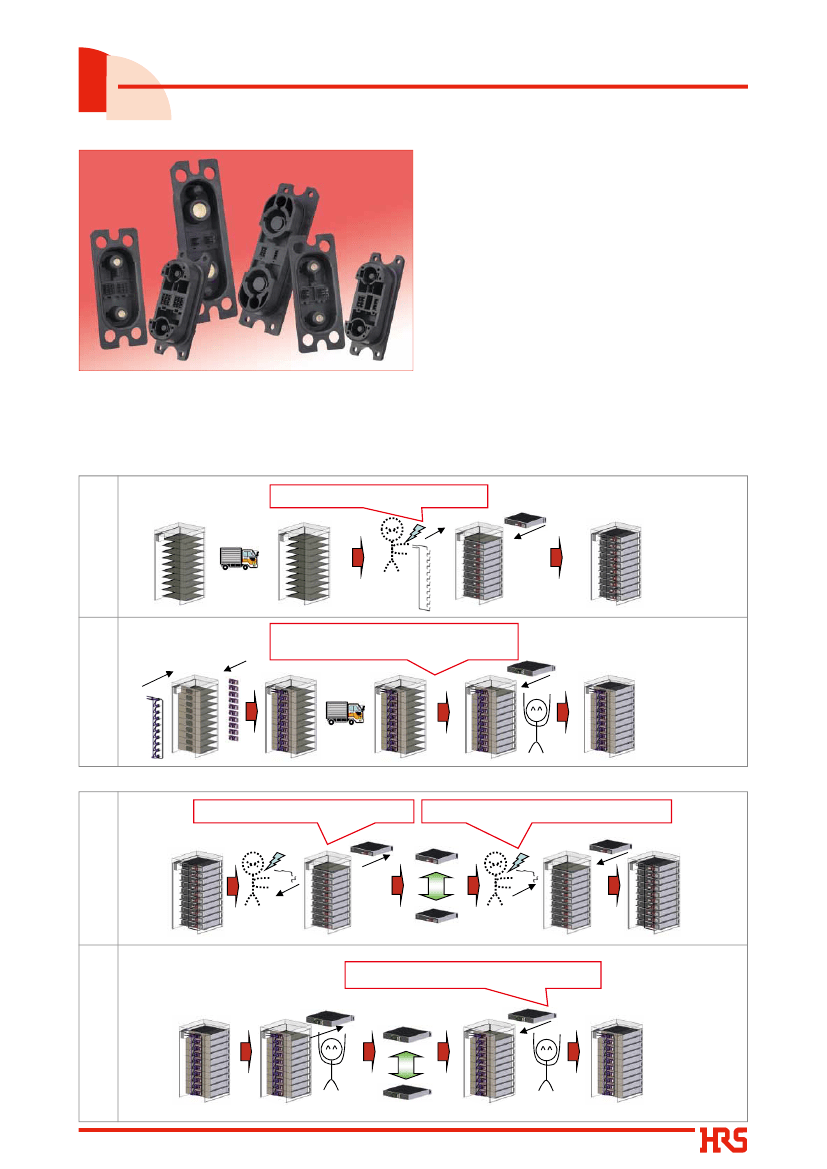

High Current Connector

PS2 Series

and signal contacts together in one unit with dedicated

power contacts to handle 100, 200 or 300 Amps.

2. Floating Structure

The structure allows up to ±2.5 mm of float in the X

and Y directions, which makes mating easier even

when the mating position is not clearly visible.

3. Sequential Contact System

This series utilizes sequential contacts, the power

contacts mate before the signal contacts. This prevents

incomplete mating and also prevents hot swapping.

4. Finger Protection Structure

■

Features

1. Power/Signal Hybrid Connector

The Hybrid design saves space by combining power

For added safety, the plug side (battery side) is

designed to prevent shock hazard and provides

for more user safety and security.

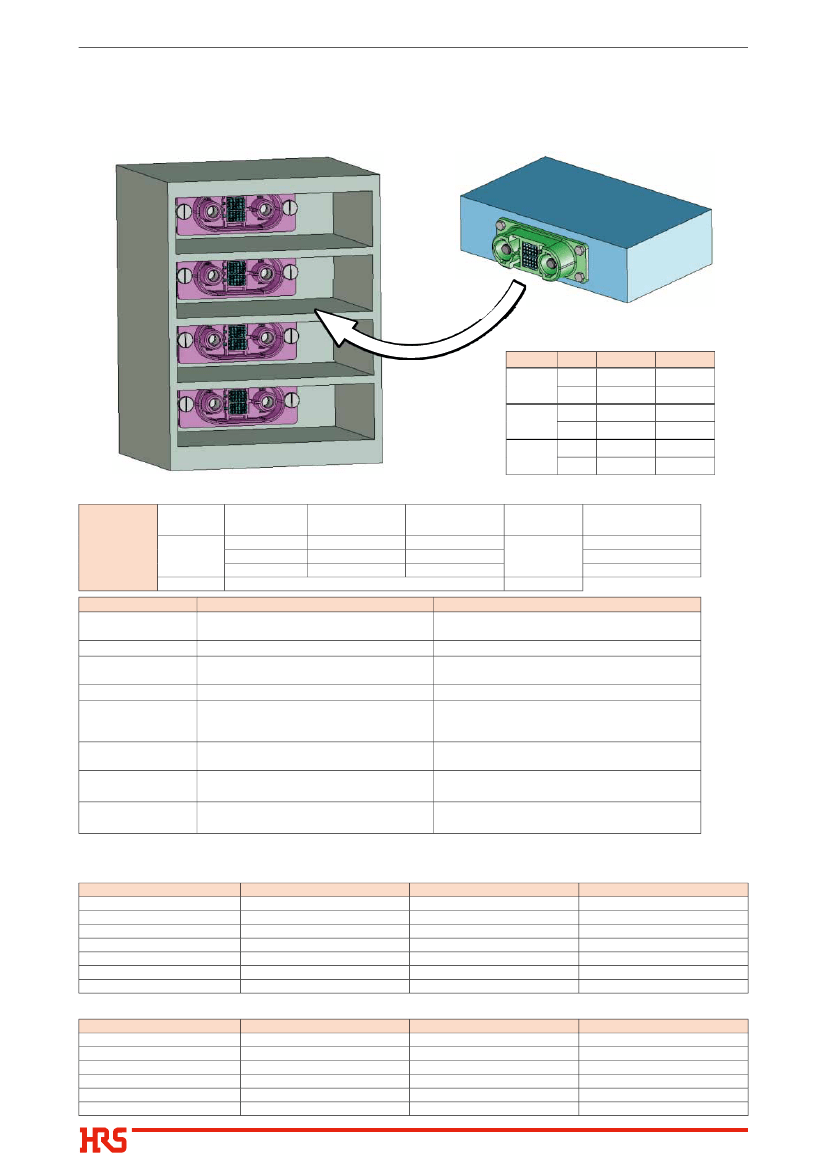

5. Plug-in Design

Its unique plug-in design provides enhanced safety

features, reduced production costs related to its

installation and the maintenance of high current units.

(Installation)

Conventional

Connection

Risk of electric shock during cable wiring work

Battery installation is completed

New Connection

Connector assembly

and wiring

Cable wiring on site is eliminated and risk of accidental

touch to electrical lines is reduced.

Battery installation is completed

(Maintenance)

Risk of electric shock during cable removal work

Risk of electrical shock during battery module installation

Old Battery

Conventional

Connection

New Battery

New Connection

Cable wiring on site is eliminated and risk of accidental touch

to electrical lines is reduced.

Battery module removal

Old Battery

Battery installation is completed

New Battery
