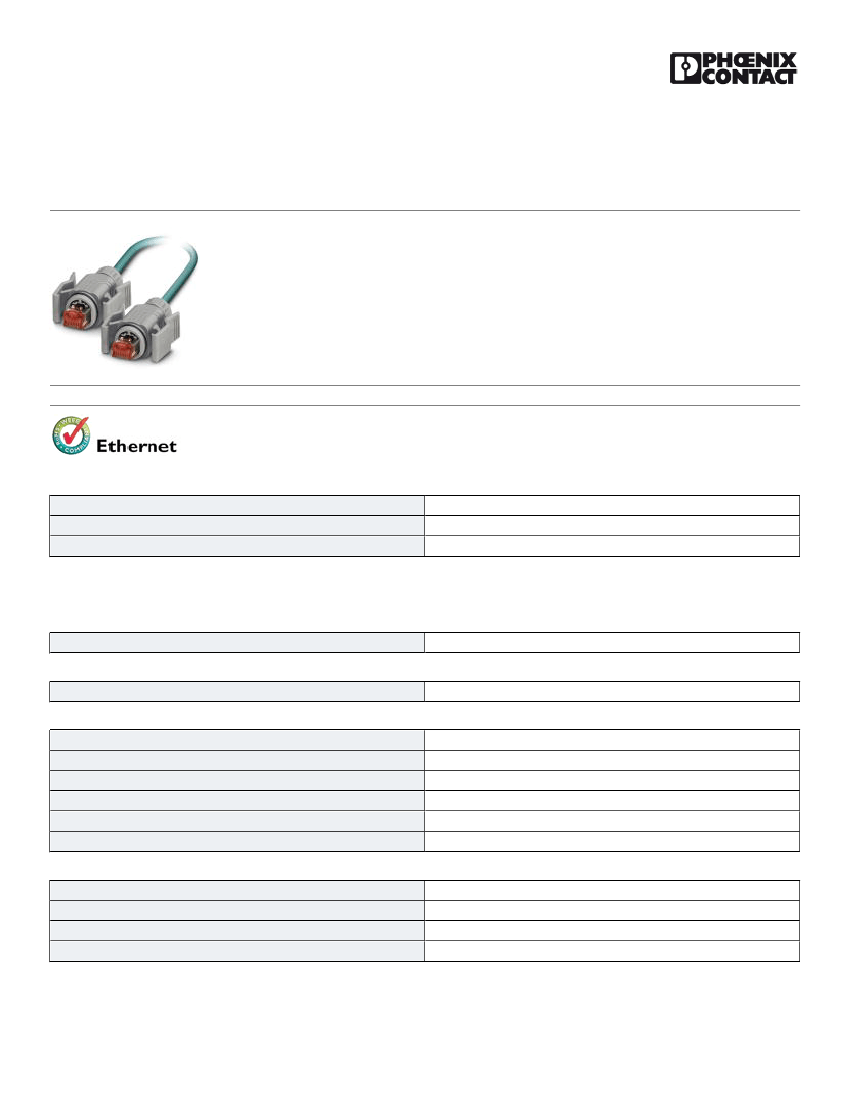

Network cable - NBC-R4MC/1,0-93E/R4MC - 1408937
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), RJ45
plug/IP67, gray to RJ45 plug/IP67, gray, line, length: 1 m
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85444210
Poland
Technical data
Dimensions
Length of cable
1m
Ambient conditions
Degree of protection
IP67 (RJ45 connector)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Pollution degree
1A
50 V
4
Ethernet CAT5 (IEC 11801:2002), 100 Mbps
Ethernet CAT5e (TIA 568B:2001), 100 Mbps
2
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Color
Material (component)
Plug Straight RJ45 Clip locking / IP67
4 (8)
Gray
CuSn (Contact)
04/01/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1408937
Network cable - NBC-R4MC/1,0-93E/R4MC - 1408937
Technical data
Characteristics head 1
Ni/Au (Contact surface)
PC (Contact carriers)
PA (Housing)
Insertion/withdrawal cycles
Ambient temperature (operation)
≥ 750
-20 °C ... 70 °C
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Color
Material (component)
Plug Straight RJ45 Clip locking / IP67
4 (8)
Gray
CuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
PA (Housing)
Insertion/withdrawal cycles
Ambient temperature (operation)
≥ 750
-20 °C ... 70 °C
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Twisted pairs
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Tensile strength short-term/long-term
PUR ETHERNET 2x2 FLEX
93E
20963 (80°C/30 V)
Ethernet CAT5 (IEC 11801:2002), 100 Mbps
Ethernet CAT5e (TIA 568B:2001), 100 Mbps
2x2xAWG26/7; SF/UTP
2x 2x 0.14 mm²
26
7x 0.16 mm
0.98 mm
white/orange-orange, white/green-green
2 cores to the pair
Two pairs with two fillers to the core
Aluminum-coated foil, tinned copper braided shield
70 %
water blue RAL 5021
6.4 mm ±0.2 mm
4xD
8xD
≤ 80N
04/01/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1408937
Network cable - NBC-R4MC/1,0-93E/R4MC - 1408937
Technical data
Cable
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Working capacitance
Wave impedance
Signal runtime
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
42 kg/km
PUR
Foamed PE
Bare Cu litz wires
≥ 500 MΩ*km (at 20 °C)
≤ 290000000 Ω/km (at 20 °C)
45 nF (At 1 kHz)
100 Ω ±5 Ω (at 100 MHz)
5.3 ns/m
≤ 100 V
300 V (Outer cable sheath)
700 V (50 Hz, 1 min.)
700 V (50 Hz, 1 min.)
IEC 60332-1-2
According to IEC 60754-1
in accordance with DIN EN 60811-2-1
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
-20 °C ... 80 °C
-20 °C ... 80 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27060307
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC002599
EC002599
04/01/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1408937
Network cable - NBC-R4MC/1,0-93E/R4MC - 1408937
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121616
26121616
26121604
31261501
26121616

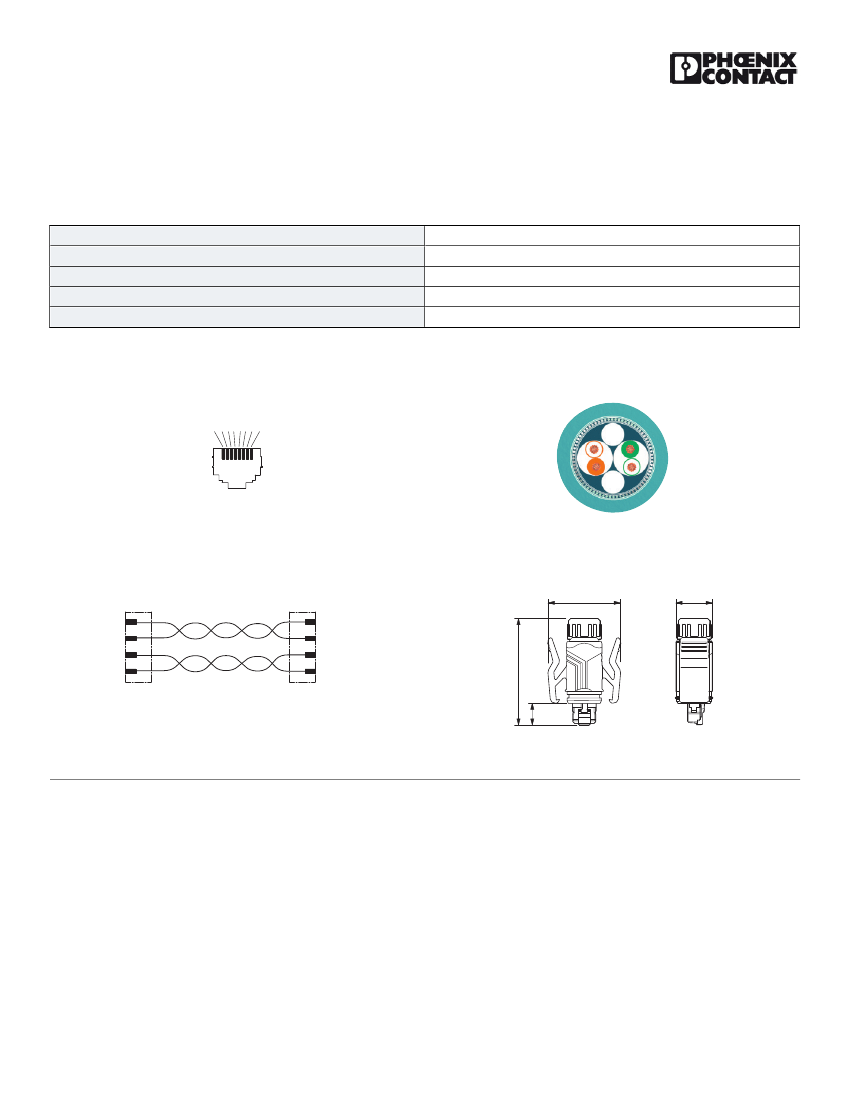

Drawings
Schematic diagram
Cable cross section
8 765 432 1
Connector pin assignment plug RJ45
PUR ETHERNET 2x2 FLEX [93E]
Circuit diagram
RJ45
1
2
3
6
RJ45
1 WHOG
2 OG
3 WHGN
6 GN
Dimensioned drawing
37
18,5
Contact assignment of RJ45 plugs
54
11
RJ45-connector, IP67
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
04/01/2014 Page 4 / 4
