Wide band Mobile load Coil antenna
Innovative
Technology
for a
Connected
World
B1360W
PreMiuM Mobile load Coil antennas are industry standard
Laird Technologies’ongoing commitment to refinement in mechanical and electrical
design has resulted in the most technically advanced mobile load coil antennas on the
market. Exclusive features such as stainless steel whips, housings constructed with ABS
material injected molded around a solid brass insert, and gold plated push pin contacts
make Laird Technologies the obvious choice for quality and long lasting value for
demanding mobile radio communications.
Features
• High performance wide band
mobile antenna
• Special UV treated radome, resists
sun damage
• Easy installation with optional
NMO Mounts
• 100% tested on a network analyzer
Markets
• Public safety
• Transportation
• Utility
• Military mobile
sPeCiFiCations
ELECTRICAL
Frequency range
Center frequency
Gain
Pattern
Maxmium power
Nominal impedance
Polarization
VSWR
Termination
Mounting options
(sold separately)
Radiator
Shock spring
Base housing material
Noise suppressor
(sold separately)
136-174 MHz
155 MHz
Unity
Omnidirectional
100 W
50
Ω
Vertical
<2.0:1
1-1/8”-18 thread (NMO) mounts
3/4” or 3/8” NMO
magnetic or trunk mount
17-7ph straight stainless steel
302 stainless steel
Molded ABS
Blackhawk NS1535
MECHANICAL
Antenna length
Diameter
Weight (mass)
Wind resistance
Approximately 19.5” 49.4cm)
1.44” (36.58mm)
0.590 lbs (9.44 oz)
0.049 sq ft
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
Wide band Mobile load Coil antenna
B1360W
Innovative
Technology
for a
Connected
World

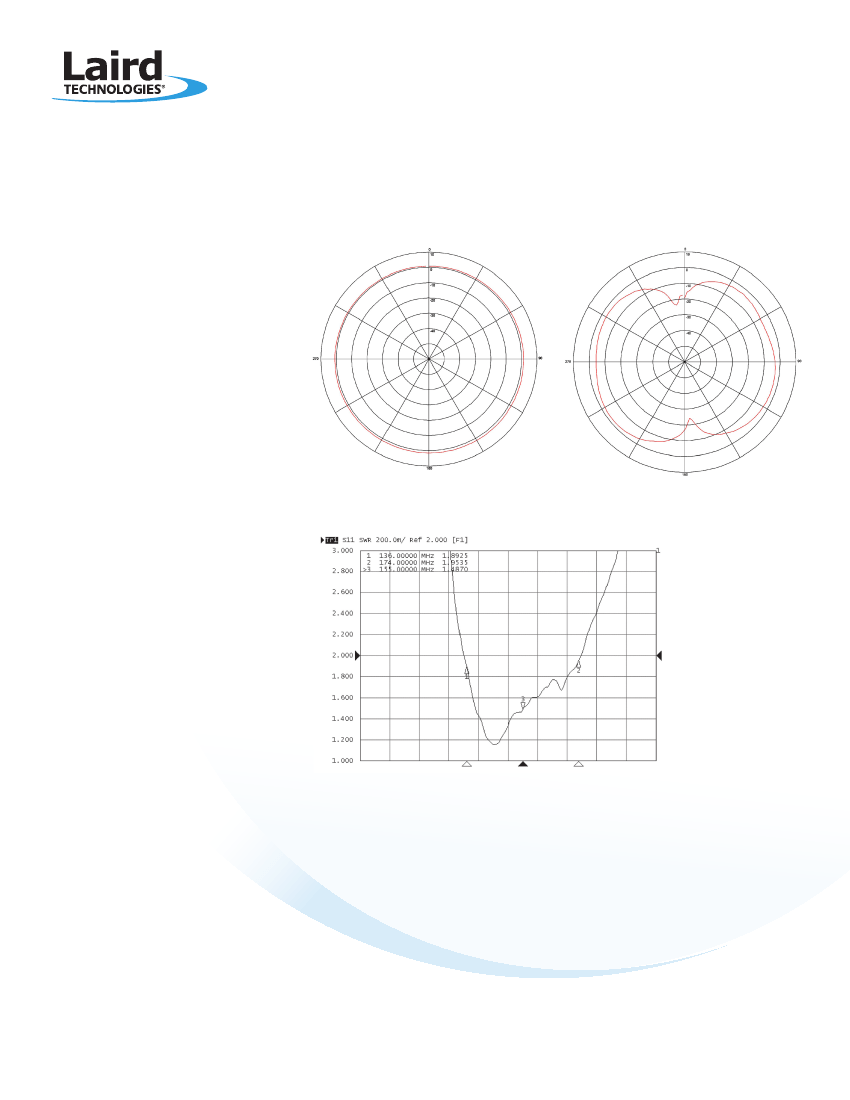

antenna Patterns and VsWr CHarts
Azimuth Plot at 154MHz
Elevation Plot at 154MHz
VSWR Plot at 136-174MHz
systeM orderinG inForMation
B1360W
BB1360W
B1360WS
BB1360WS
Chrome B-Coil Wide Band Antenna
Black B-Coil Wide Band Antenna
Chrome B-Coil Wide Band Antenna w/Spring
Black B-Coil Wide Band Antenna w/Spring
ANT-DS-B1360W 0310
