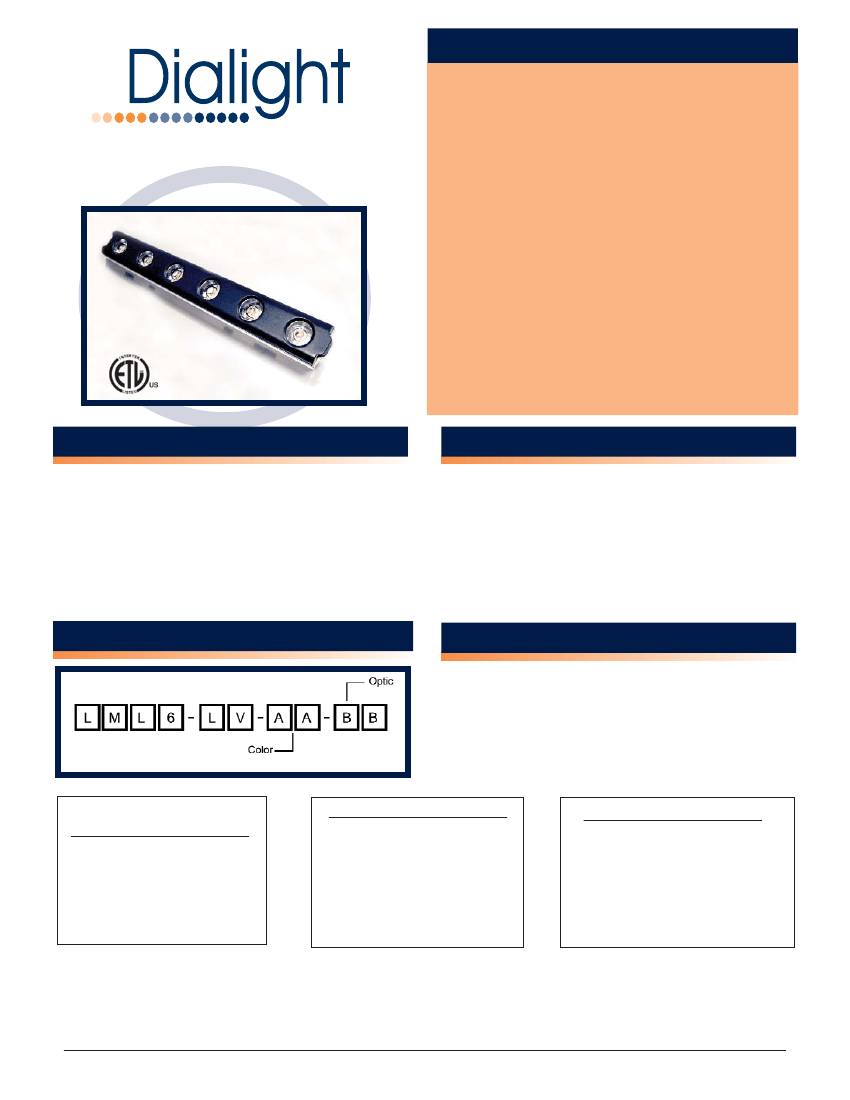

FEATURES / BENEFITS
p
Fully modular linear arrays of ultra high
brightness LEDs
PWM SERIES LV
LINEAR MODULES
p
Utilizes the latest 100+ lumen LUXEON
®
Rebel™
LEDs for cool white, 100+ lumen for neutral white
& 50+ lumen for warm white
p
Onboard 350mA constant current driver runs off
low voltage input
p
ETL listed to UL2108 standards
p
Choice of colour temperatures & optical patterns
p
>70% lumen maintenance @ 50,000 hours at
max acceptable ambient temperature
p
Primary heatsinking included
p
Color binned for consistent color
OPERATING CONDITIONS
p
Operating Ambient temperature -30ºC to +55ºC
p
Onboard driver model operates off 12-24VDC /
11-17VAC input
p
Max modules per run = 10 @ 12VAC, 16 @ 24VDC input
p
Typical power consumption 8.0W per module
p
Additional heatsinking required for optimal performance
p
Current draw 580mA @ 12VDC input*
290mA @ 24VDC input*
APPLICATION
p
Linear lighting
p
Accent lighting
p
Flood lighting
p
Street & area lighting
p
General illumination
*Note:- 750mA per unit required for initial start-up
ORDERING INFORMATION
MATERIALS / FINISH
p
Six premium LUXEON Rebel LEDs per module
p
Anodized cast aluminum heatsink
p
Dialight-Lumidrives optics (OPC 11 Series)
p
Onboard 350mA constant current driver
p
Required Entry Cable,
Power Supply to 1st module
(sold seperately): LML6-LV-CON-CAB
Typical Colour
(AA) Temperature
CW
= 5000K - 6350K
NW
= 3800K - 4100K
WW
= 2850K - 3250K
Optic (BB)
SP
= 5 degree spot
MD
= 8 degree med.
WD
= 20 degree wide
OV
= 5X25 degree oval
FR
= 7 degree frosted spot
*All angles are half divergence
Connectors
LML6-LV-CON-CAB
(sold separately)
Entry cable, power supply to 1st module
LML6-LV-M2M-CAB
(ships w/ 1 in box)
Connection cable (module to module)
* Cables use AWG 20 wires
www.dialight.com

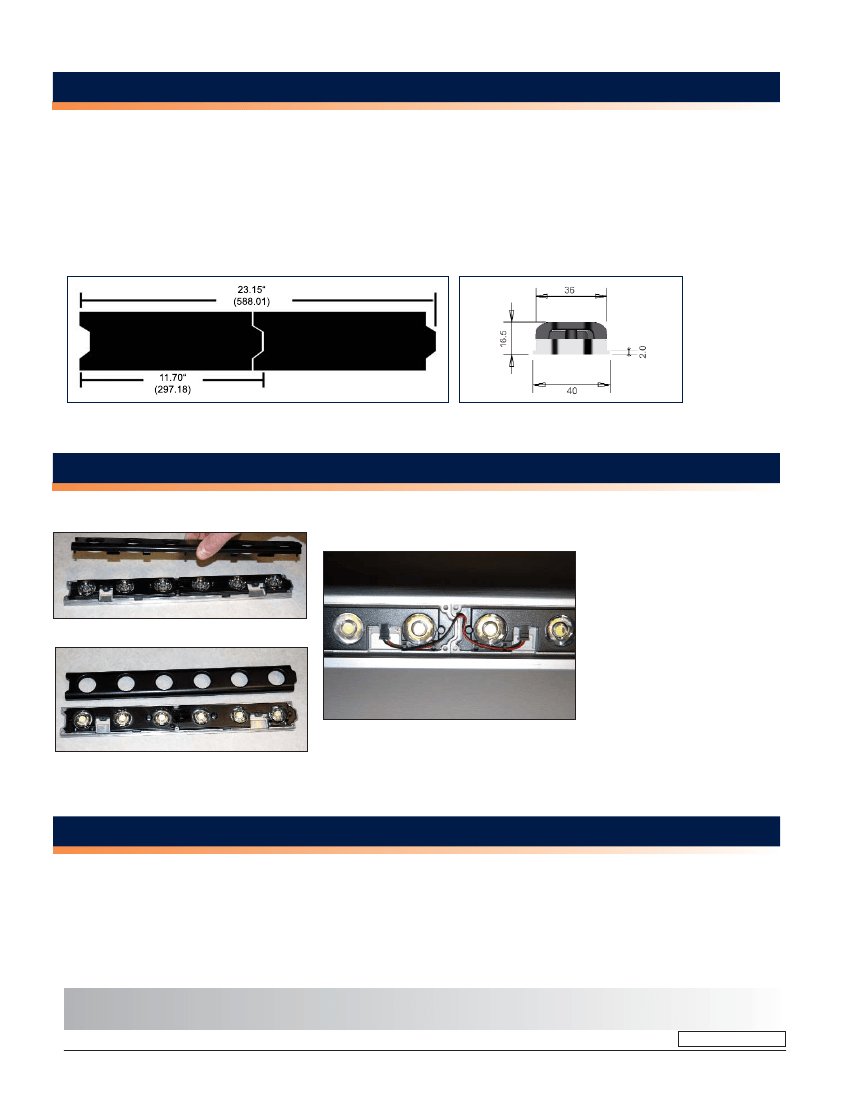

MECHANICAL DIMENSIONS
11.7” x 1.498” x 0.585”
(297.18mm x 38.05mm x 14.86mm)
Mounting hole spacing = 3.22” [81.8mm].
Max screw size #8
Total length for “Z” units connected end to end =
(Z x 11.7) - ((Z-1) x 0.25) (inches)
(Z x 297.2) - ((Z-1) x 6.35) (mm)
Top View
Example: 2 units total length = 23.15” [588.01]
Side View
ASSEMBLY INFORMATION
1) Remove cover from
module
(Do not remove mask)
2) Connect
LML6-LV-M2M-CAB
quick
connect cables between modules as
indicated in the photo. If desired, insert
8/32 or M6 mounting screws in holes
provided.
3) Wire between cables may be routed
through end as indicated in photo or
around side of module.
4) Connect
LML6-LV-CON-CAB
into front
of first module.
5) Replace cover.
6) Connect leads on
LML6-LV-CON-CAB
to low voltage power supply.
Red wire to +, black wire to -
PHOTOMETRIC DATA
IES 32 files available, consult factory
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets\Brochures_And_Catalogs\Illumination\MDEXLUMPWMLV.pdf
MDEXLUMPWMLV_C
