PICkit™ 2 64/80-Pin PIC18J Demonstration Board
Summary
The PICkit™ 2 64/80-pin PIC18J Demonstration board is the latest 64/80-pin TQFP dem-
onstration board for evaluating Microchip Technology’s PIC18J Flash microcontrollers. It
comes populated with a PIC18F87J10 MCU. Programming is supported through a 6-pin
header connection to a PICkit 2 microcontroller programmer (PG164120).
Software
The PIC18F87J10 MCU is preprogrammed with demonstration software which displays
A/D results on the LEDs. On power-up, the PIC18F87J10 will continuously display the
current 8 Most Significant bits (MSbs) of the A/D result on the LEDs. Varying the poten-
tiometer will change the value on the LEDs. Pressing switch S1 will change the mode to
counting where the port connected to the LEDs is continuously incremented. Releasing
switch S1 returns to the A/D result display.
Additional Features
-
LEDs disabled through jumper JP2
- 32 KHz crystal and load capacitors for Timer1 operation
- Plug-in Module (PIM) style mounting holes for connection to other boards
- External power connection through P2. Must ensure that the voltage is in the range of
2.7V to 3.6V when jumper JP1 is installed. Otherwise a voltage of 2.0V to 2.7V is used
when jumper JP1 is removed. Jumper JP1 enables the on-chip voltage regulator of the
PIC18F87J10 MCU.
To obtain the most recent and complete documentation for this demonstration board
including:
- This information sheet
- Board Schematics
- Source code examples
Please refer to the following web site: http://www.microchip.com/PICkit2
Americas
Atlanta - 770-640-0034
Boston - 774-760-0087
Chicago - 630-285-0071
Dallas - 972-818-7423
Detroit - 248-538-2250
Kokomo - 765-864-8360
Los Angeles - 949-462-9523
Phoenix - 480-792-7200
Santa Clara - 408-961-6444
Toronto - 905-673-0699
Asia/Pacific

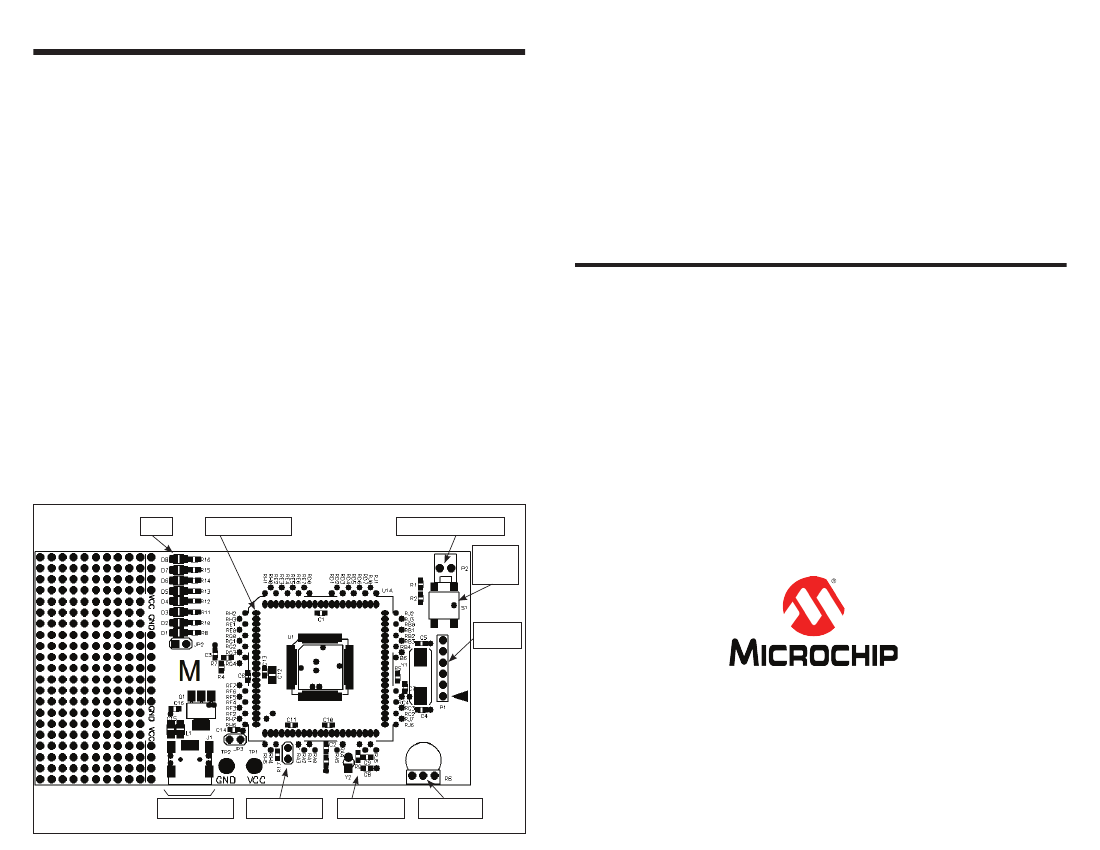

Figure 1: PICkit™ 2 64/80-Pin PIC18J Demonstration Board
