LCW W5SM-GZJX-Q3R5-Z

Description
LED GOLDEN DRAGON WARM WHT 2SMD
CategoryLED optoelectronic/LED
File Size318KB,19 Pages
ManufacturerOsram Opto Semiconductor
Websitehttps://www.osram.com/index-2.jsp
Environmental Compliance
Download Datasheet Parametric Compare View All

LCW W5SM-GZJX-Q3R5-Z Overview

LED GOLDEN DRAGON WARM WHT 2SMD

LCW W5SM-GZJX-Q3R5-Z Parametric

Parameter NameAttribute value
colorwhite, warm color
CCT(K)2700K
Flux, current at 85°C - Test-
Flux, current at 25°C - Test38 lm(24 lm ~ 52 lm)
Current - Test350mA
Voltage - Forward (Vf) (Typical)3.2V
Lumens/Watt at different test currents34 lm/W
CRI (high color rendering index)80
Current - maximum500 mA
perspective120°
Installation typesurface mount
Package/casing2-SMD, gull wing exposed pad
Supplier device packagingSMD
size/dimensions0.276" long x 0.236" wide (7.00mm x 6.00mm)
Height - Installation (maximum)0.079"(2.00mm)
Package thermal resistance11°C/W
Golden DRAGON
®
warm white with Chip Level Conversion (CLC)
Lead (Pb) Free Product - RoHS Compliant
LCW W5SM
Released
Besondere Merkmale
Gehäusetyp:
weißes SMD Gehäuse, klarer
Silikon - Verguss, Chip level conversion
Typischer Lichtfluss:
51 lm bei 500 mA
Besonderheit des Bauteils:
hocheffiziente
Lichtquelle bei geringem Platzbedarf
Farbort:
x = 0,42, y = 0,40 nach CIE 1931 (weiß)
Farbtemperatur:
2500 K bis 4800 K
Abstrahlwinkel:
Lambertscher Strahler (120°)
Technologie:
ThinGaN
®
optischer Wirkungsgrad:
32 lm/W
Gruppierungsparameter:
Lichtstrom, Farbort
Verarbeitungsmethode:
für alle
SMT-Bestücktechniken geeignet
Lötmethode:
IR Reflow Löten
Vorbehandlung:
nach JEDEC Level 4
Gurtung:
24-mm Gurt mit 800/Rolle, ø180 mm
ESD-Festigkeit:
ESD-sicher bis 2 kV nach
JESD22-A114-B
Features
package:
white SMD package, colorless clear
silicone resin; chip level conversion
typical Luminous Flux:
51 lm at 500 mA
feature of the device:
high efficient lightsource
at low space

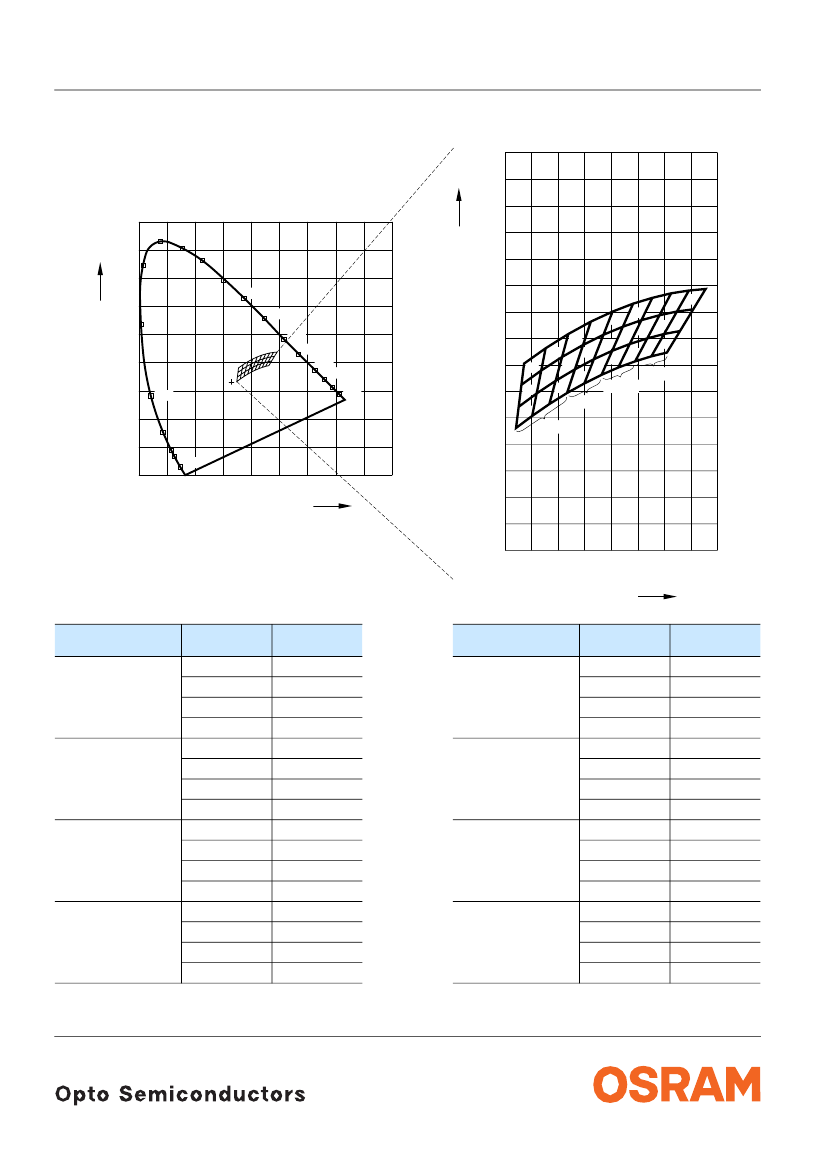

color coordinates:
x = 0.42, y = 0.40 acc. to
CIE 1931 (white)
color temperature:
2500 K to 4800 K
viewing angle:
Lambertian Emitter (120°)
technology:
ThinGaN
®
optical efficiency:
32 lm/W
grouping parameter:
luminous flux,
color coordinates
assembly methods:
suitable for all
SMT assembly methods
soldering methods:
IR reflow soldering
preconditioning:
acc. to JEDEC Level 4
taping:
24 mm tape with 800/reel, ø180 mm
ESD-withstand voltage:
up to 2 kV acc. to
JESD22-A114-B
Anwendungen
• Raumbeleuchtung: Deckenbeleuchtung, Ni-
schenbeleuchtung, Kronleuchter, Hängeleuch-
ten, Wandleuchter
• Flutlicht
• Effekt- und Akzentbeleuchtung: Vitrinen, Möbel-
beleuchtung, Markierungsbeleuchtung
• Spezialbeleuchtung: Blitzlicht, Radbeleuchtung,
Sicherheitsbeleuchtung
• Gebäudebeleuchtung: Fassadenbeleuchtung,
Treppenbeleuchtung
• Auto: Innenbeleuchtung, Beleuchtung für
Make-up-Spiegel
• Leselampen (z.B. Bus, Flugzeug)
Applications
• room lighting: ceiling light, cove lighting,
chandeliers, pendants, sconces
• flood light
• effect and accent lighting: display cases,
furniture illumination, marker lights
• specialty lighting: flashlight, bicycle headlamps,
security lights
• architectural lighting: facade lighting, stairway
lighting
• automotive interior lighting: dome lighting,
make-up mirror illumination
reading lamps (e.g. bus, airplane)
2007-02-16
1
