HPC12FT1K00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> HPC12FT1K00

HPC12FT1K00: DescriptionRES 1K OHM 1% 5W 5048 WIDE; CategoryPassive components; File Size101KB，4 Pages; ManufacturerStackpole Electronics Inc; Environmental Compliance

Download Datasheet Parametric View All

HPC12FT1K00 Overview

RES 1K OHM 1% 5W 5048 WIDE

HPC12FT1K00 Parametric

Parameter Name	Attribute value
resistance	1 kOhms
Tolerance	±1%
Power (W)	5W
component	thick film
characteristic	Non-inductive, pulse tolerant
Temperature Coefficient	±150ppm/°C
Operating temperature	-55°C ~ 155°C
Package/casing	Width 5048 (127122 Metric) 4850 J Lead
Supplier device packaging	SMD
size/dimensions	0.480" long x 0.500" wide (12.19mm x 12.70mm)
Height - Installation (maximum)	0.400"（10.16mm）
Number of terminals	2
failure rate	-

Preview

Download Datasheet

View All

HPC Series (DISCONTINUED)

High Power Surface Mount Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

The HPC series represents a breakthrough in functional design, thermal management

and end-user benefits.

Borrowing from long-proven techniques used in power

semiconductors, the HPC series provides up to eight times more useful power than SMD

power resistors currently available.

The HPC series, through superior characterization, is intended to remove the

mystery of managing board level power by combining established techniques in

new ways. The result is superior technology in design options, in a cost effective

package.

Features:

•

Up to 12W with no external heat sinks

Compatible with conventional pick and place

Only 0.5 x 0.5 PCB footprint

Non-inductive resistive element

Anodized heat sink top provides 800V voltage

withstanding

•

Up to 50W for short duration

Stackpole patent no. US 7,286,358 B2

Available in 1% and 5% tolerance

RoHS compliant

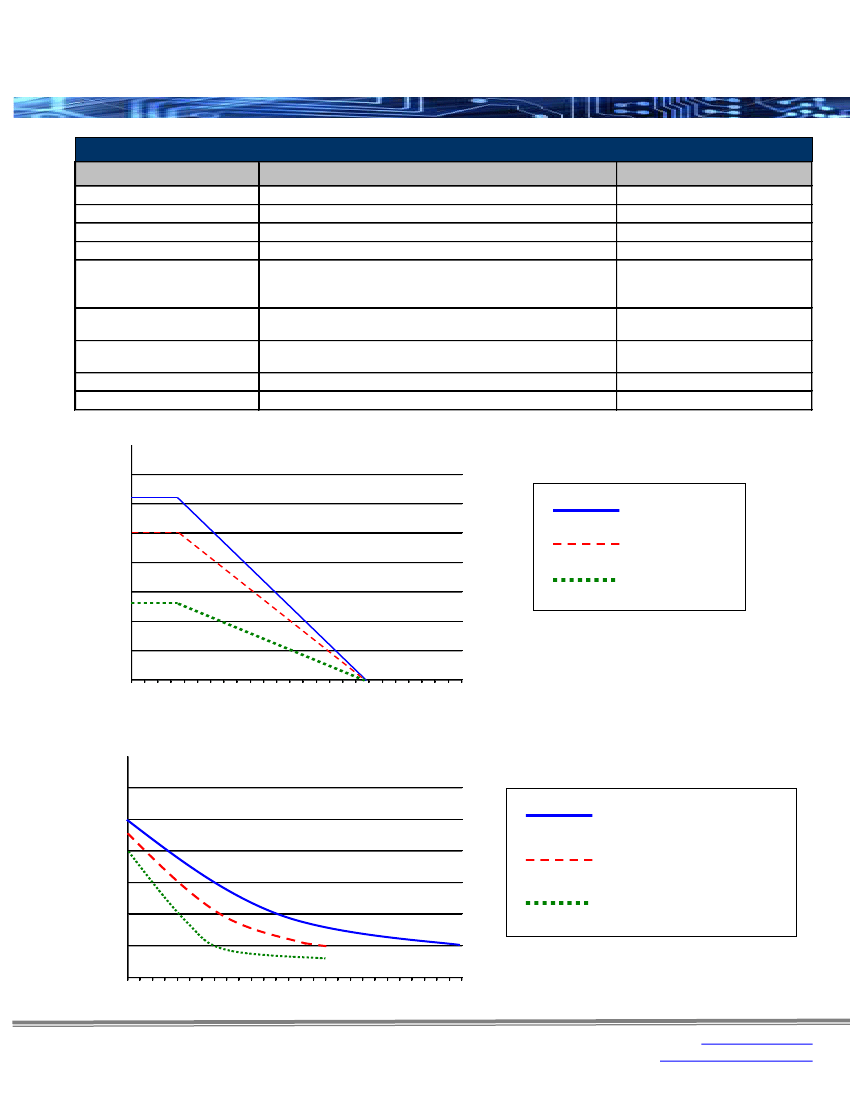

Electrical Specifications

Type / Code

HPC12

Power Rating

(Watts) @ 40ºC

w/400 LFM air flow

12W

Power Rating

(Watts) @ 40ºC

no air flow

Maximum

Working

Voltage

200V

Maximum

Overload

Voltage

400V

Dielectric

Strength

1,500V

Inductance

<2nH

Resistance

Temperature

Coefficient

±150 ppm/ºC

Ohmic Range (Ω)

and Tolerance

1%, 5%

0.025 - 250K

Please refer to the High Power Resistor Application Note (page 4) for more information on designing and

implementing high power resistor types.

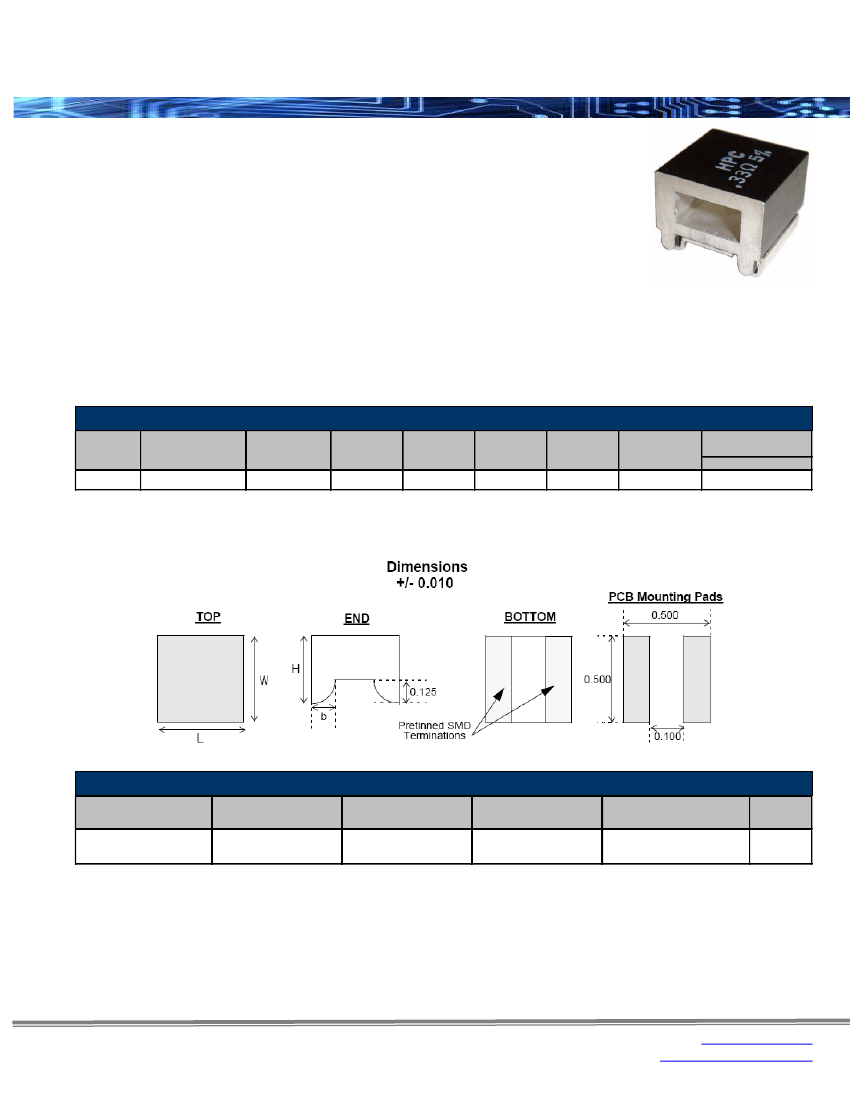

Mechanical Specifications

Type / Code

HPC12

Body Length

0.48

12.19

Body Width

0.50

12.70

Body Height

0.40

10.16

Bottom Termination

0.11

2.79

Unit

inches

Rev Date: 05/12/2016 (DISCONTINUED)

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com

HPC Series (DISCONTINUED)

High Power Surface Mount Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

High Power Chip Resistors and Thermal Management

Stackpole has developed several surface mount resistor series in addition to our current sense resistors,

which have had higher power ratings than standard resistor chips. This has caused some uncertainty and

even confusion by users as to how to reliably use these resistors at the higher power ratings in their designs.

The data sheets for the RHC, RMCP, RNCP, CSR, CSRN, CSRF, CSS, and CSSH state that the rated

power assumes an ambient temperature of no more than 100 degrees C for the CSS / CSSH series and 70

degrees C for all other high power resistor series. In addition, IPC and UL best practices dictate that the

combined temperature on any resistor due to power dissipated and ambient air shall be no more than 105C.

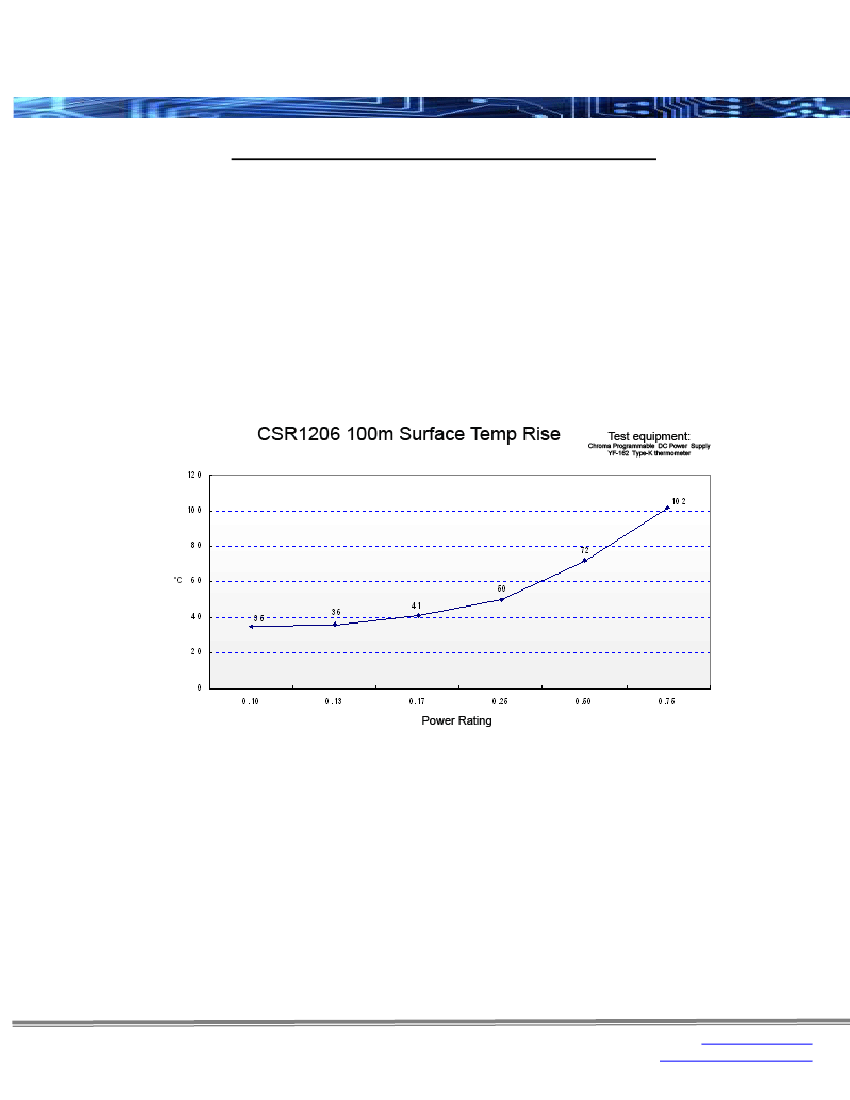

At first glance this wouldn’t seem too difficult, however the graph below shows typical heat rise for the CSR

½ 100 milliohm at full rated power. The heat rise for the RMCP and RNCP would be similar. The RHC with

its unique materials, design, and processes would have less heat rise and therefore would be easier to

implement for any given customer.

The 102 degrees C heat rise shown here would indicate there will be additional thermal reduction techniques

needed to keep this part under 105C total hot spot temperature if this part is to be used at 0.75 watts of

power. However, this same part at the usual power rating for this size would have a heat rise of around 72

degrees C. This additional heat rise may be dealt with using wider conductor traces, larger solder pads and

land patterns under the solder mask, heavier copper in the conductors, vias through PCB, air movement, and

heat sinks, among many other techniques. Because of the variety of methods customers can use to lower

the effective heat rise of the circuit, resistor manufacturers simply specify power ratings with the limitations

on ambient air temperature and total hot spot temperatures and leave the details of how to best accomplish

this to the design engineers. Design guidelines for products in various market segments can vary widely so it

would be unnecessarily constraining for a resistor manufacturer to recommend the use of any of these

methods over another.

Note:

The final resistance value can be affected by the board layout and assembly process, especially the size of the

mounting pads and the amount of solder used. This is especially notable for resistance values ≤ 50 mΩ.

This should be taken into account when designing.

Rev Date: 05/12/2016 (DISCONTINUED)

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com
