SPECIFICATIONS
PARAMETERS
RESONANT FREQUENCY
RESONANT IMPEDANCE (MAX)
MAX INPUT VOLTAGE
CAPACITANCE @ 1kHZ
PLATE MATERIAL
OPERATING TEMPERATURE
STORAGE TEMPERATURE
VALUES
2,000 ± 300
500
30
90,000 ±30%
BRASS
-20 ~ +60
-20 ~ +70
UNITS
Hz
Ohm
Vp-p
pF
-
°C
°C
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
LTR
-
A
DESCRIPTION
REVISION HISTORY
DATE
2/23/2006
8/10/2010
APPROVED
B.R.
©2003, Projects Unlimited Inc.
RELEASED FROM ENGINEERING
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
A
20
0.1
15
0.3
0.05
0.01
0.1
0.02

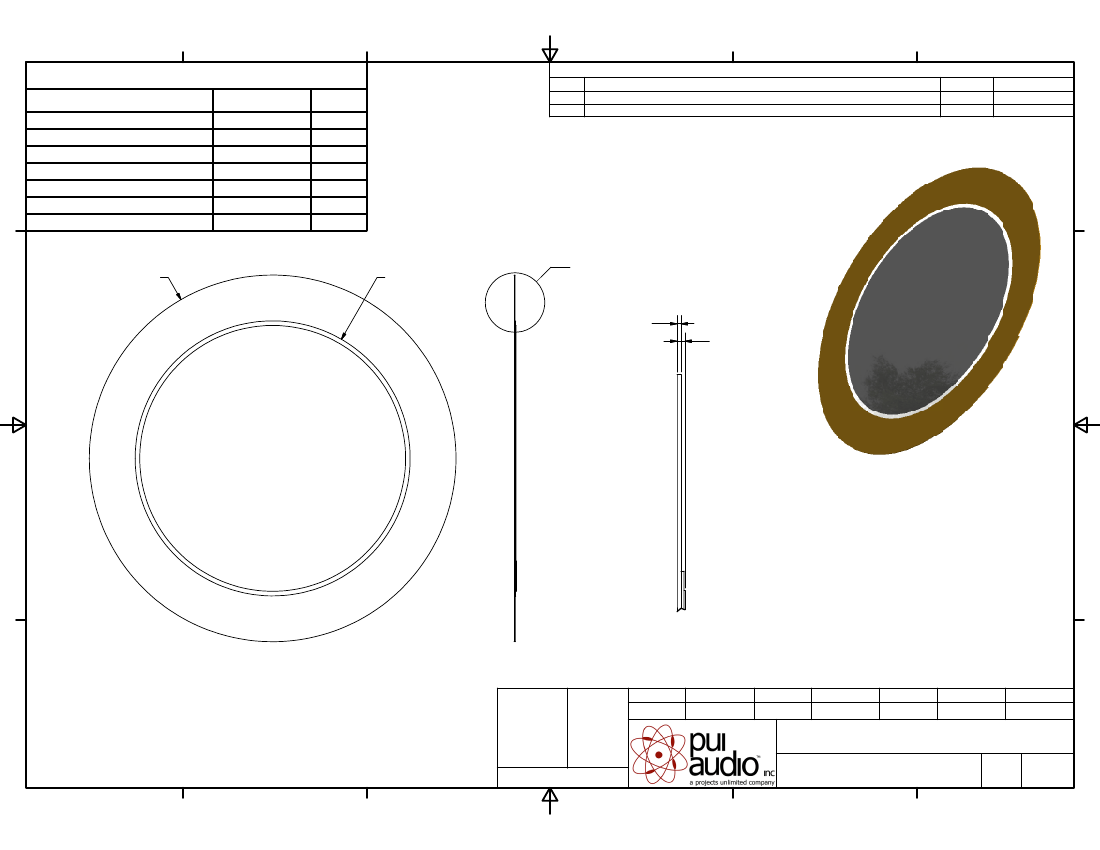

A ( 30 : 1 )
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
J.A.F.
2/23/2006
B.R.
2/24/2006
E.P.
2/24/2006 8/10/2010
A3
AB2020B-2
Bender
Edition
Sheet
AB2020B-2.idw
-
1/1
