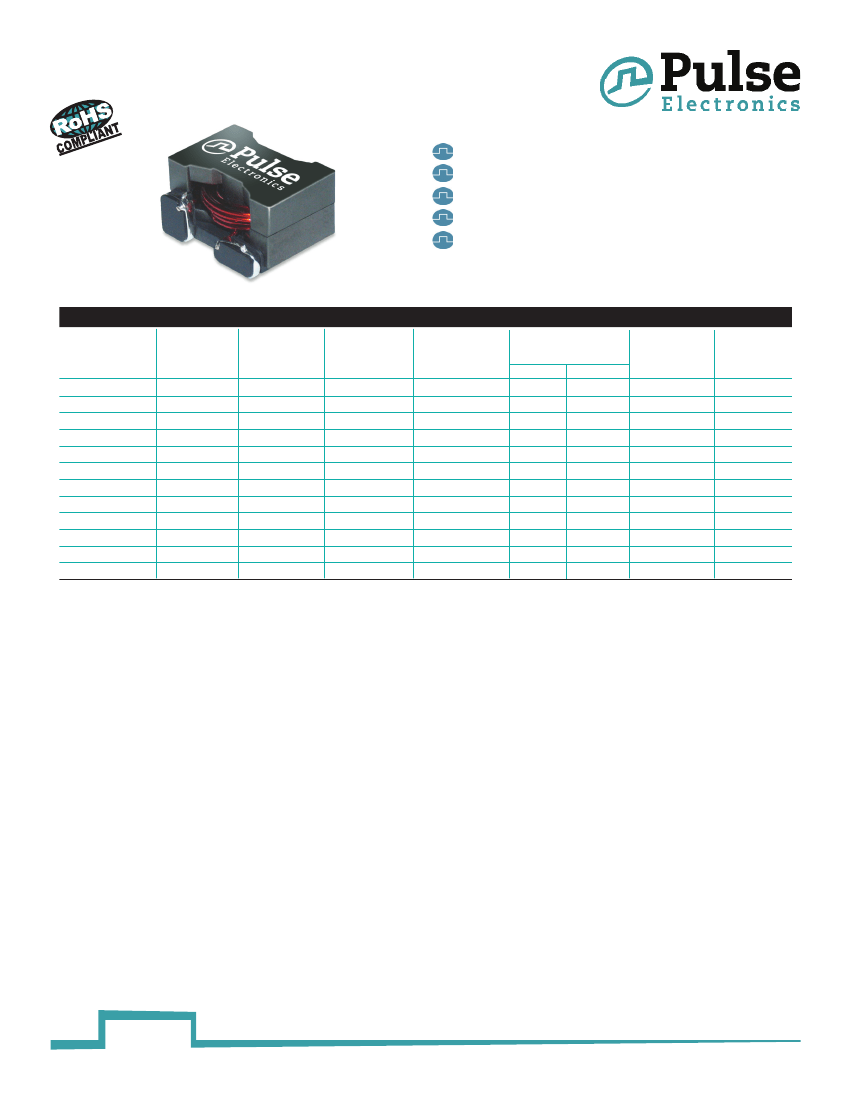

SMT POWER INDUCTORS
Wire Wound
Height:
12.2mm Max
Footprint:
22.2 x 19.1mm Max
Current Rating:
Over 22Apk
Inductance Range:
5.8µH to 57µH
Weight:
±4%
Electrical Specifications @ 25°C — Operating Temperature - 55°C to +130°C
Part
Number
PA2050.582NL
PA2050.782NL
PA2050.103NL
PA2050.163NL
PA2050.193NL
PA2050.233NL
PA2050.273NL
PA2050.313NL
PA2050.363NL
PA2050.393NL
PA2050.413NL
PA2050.583NL
Inductance
@0A
dc
(µH ±10%)
5.8
7.8
10.2
16.0
19.4
23.0
27.0
31.4
36.0
38.9
41.0
57.8
Inductance
@Irated
(µH TYP)
5.8
7.8
10.2
16.0
19.4
23.0
26.2
30.6
35.2
37.5
40.0
57.8
Irated
(A
DC
)
14.4
13.3
12.5
9.9
8.5
8.0
7.8
6.7
6.0
6.0
6.0
5.0
1
DCR
(mW ±10%)
4.4
5.1
5.8
9.1
12.6
13.7
14.9
20.2
21.6
18.8
23.1
34.5
Saturation
2
Current Isat
(A TYP)
25°C
100°C
22
17
18
16
16
12
11
9.8
9
8.4
8
6.3
7.3
6.2
15
11
10
8
8
8
6
6
6
5
Heating
3
Current I
dc
(A TYP)
14.4
13.3
12.5
9.9
8.5
8.1
7.8
6.7
6.5
6.2
6.2
5.1
Core Loss
Factor
K2
155
181
206
258
284
310
335
361
387
482
413
490
Notes:
1. The rated current as listed is either the saturation current or the heating current depending 5. The temperature of the component (ambient plus temperature rise) must be within
on which value is lower.
the stated operating temperature range.
2. The saturation current is the typical current which causes the inductance to drop by 20% at 6. Add “T” suffix to the part number for Tape & Reel version (i.e. PA2050.582NLT).
the stated ambient temperatures (25°C and 100°C). This current is determined by placing 7. This RoHS compliant series should be processed in accordance with JEDEC J-STD-020C
the component in the specified ambient environment and applying a s hort duration
reflow standard.
pulse current (to eliminate self-heating effects) to the component.
3. The heating current is the DC current which causes the part temperature to increase by
approximately 40°C.
4. In high volt*time applications, additional heating in the component can occur due to
core losses in the inductor which may neccessitate derating the current in order to limit
the temperature rise of the component. To determine the approximate total losses (or
temperature rise) for a given application, the coreloss and temperature rise formula
can be used:
ΔB
(Gauss)
= K2 *
ΔI
Core Loss (W)
= 1.5E-13 * (Freq_kHz)
1.63 *
ΔB
2.62
USA 215 781 6400
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P661.D (03/14)
pulseelectronics.com
60
@ 25°C
.583
60
50
@ 100°C
.583
SMT POWER INDUCTORS
Wire Wound
50
Inductance (uH)
40
30
Inductance (uH)
.413
.393
.363
.313
.233
.103
.582
.273
.193
.163
.782
40
.413
.393
.363
30
.313
.273
20
10
0
20

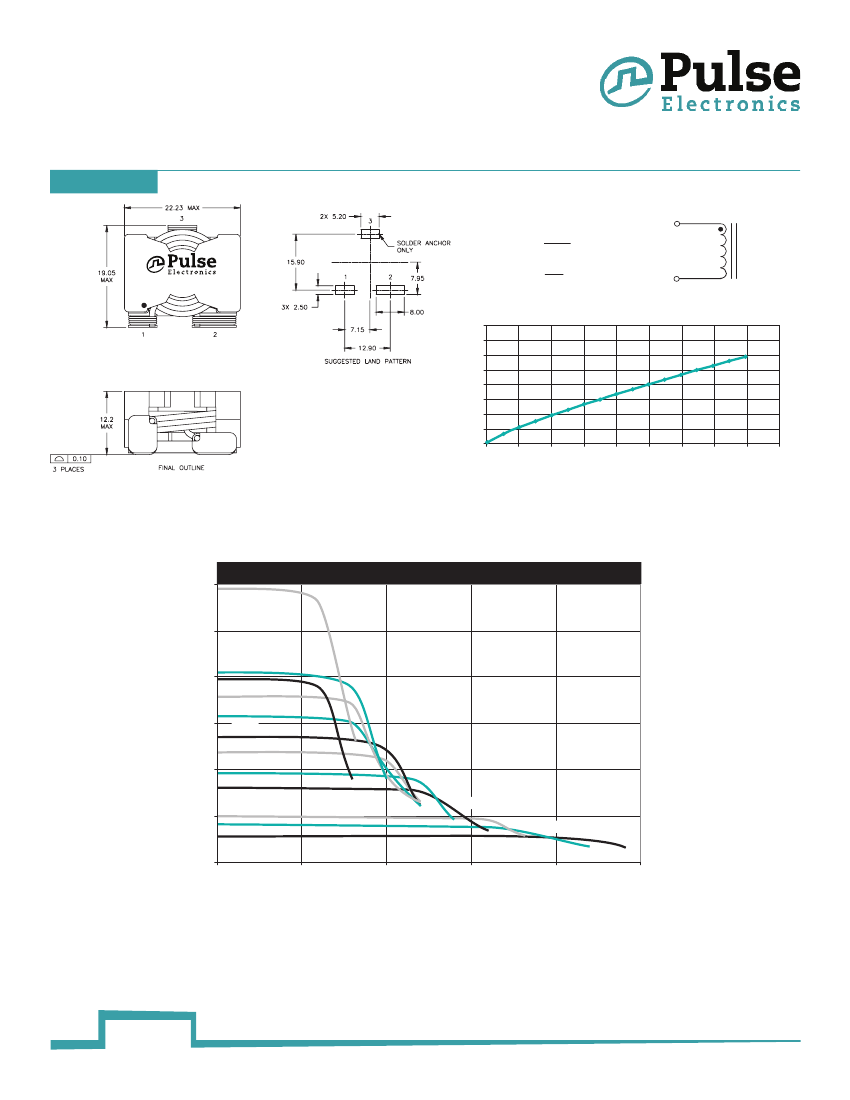

Mechanical
