LTC2913HMS-1#PBF

Description
IC VOLT MONITOR DUAL 10-MSOP
CategoryPower/power management    The power supply circuit
File Size172KB,12 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Environmental Compliance
Download Datasheet Parametric View All

LTC2913HMS-1#PBF Overview

IC VOLT MONITOR DUAL 10-MSOP

LTC2913HMS-1#PBF Parametric

Parameter NameAttribute value
Brand NameLinear Technology
Is it Rohs certified?conform to
MakerLinear ( ADI )
Parts packaging codeMSOP
package instructionTSSOP, TSSOP10,.19,20
Contacts10
Manufacturer packaging codeMS
Reach Compliance Codecompliant
ECCN codeEAR99
Adjustable thresholdYES
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeS-PDSO-G10
JESD-609 codee3
length3 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals10
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP10,.19,20
Package shapeSQUARE
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
power supply3.3 V
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply current (Isup)0.08 mA
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2.3 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
width3 mm

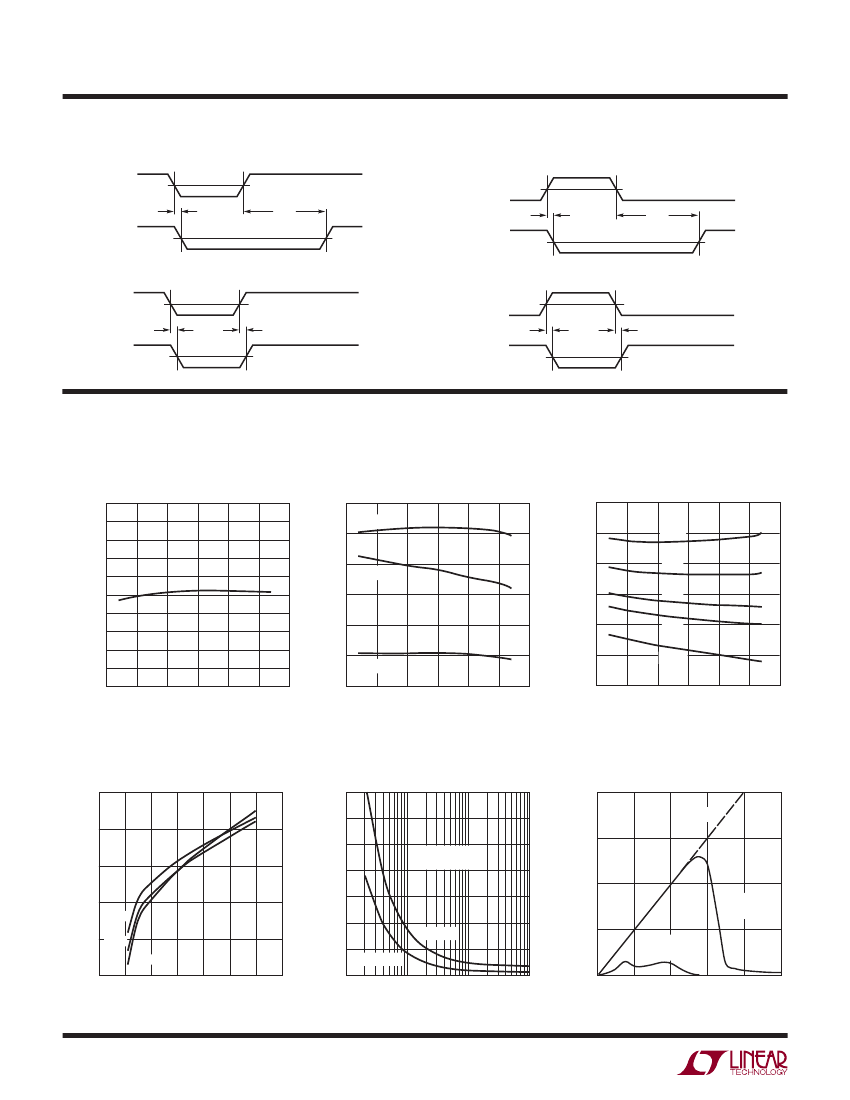

LTC2913
Dual UV/OV
Voltage Monitor
FEATURES
n
n
n
n
n
n
n
n
n
DESCRIPTION
The LTC
®
2913 is a dual input voltage monitor intended for
multiple voltages in a variety of applications. Dual inputs for
each voltage allow monitoring two separate undervoltage
(UV) conditions and two separate overvoltage (OV)
conditions. All monitors share a common undervoltage
output and a common overvoltage output. The LTC2913-1
has latching capability for the overvoltage output. The
LTC2913-2 has functionality to disable both the overvoltage
and undervoltage outputs.
Glitch filtering ensures reliable reset operation without
false or noisy triggering.
The LTC2913 provides a precise, versatile, space-con-
scious, micropower solution for voltage monitoring.
L,
LT, LTC and LTM are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
Monitors Two Voltages Simultaneously
Adjustable UV and OV Trip Values
Guaranteed Threshold Accuracy: ±1.5%
Input Glitch Rejection
Adjustable Reset Timeout with Disable
44μA Quiescent Current
Open-Drain
OV
and
UV
Outputs
Guaranteed
OV
and
UV
for V
CC
≥ 1V
Available in 10-Lead MSOP and (3mm
×
3mm)
DFN Packages
APPLICATIONS
n
n
n
Desktop and Notebook Computers
Network Servers
Core, I/O Voltage Monitors
TYPICAL APPLICATION
Dual OV/UV Supply Monitor
5V
POWER
3.3V
SUPPLIES
0.1μF
700
TYPICAL TRANSIENT DURATION (μs)
600
500
400
300
200
V
CC
= 6V
100
V
CC
= 2.3V
0
0.1
1
10
100
COMPARATOR OVERDRIVE PAST THRESHOLD (%)
2913 TA01b
Typical Transient Duration
vs Comparator Overdrive
44.2k
1k
27.4k
RESET OCCURS
ABOVE CURVE
V
CC
VH1
LTC2913-1
VL1
VH2
OV
UV
LATCH
TMR
SYSTEM
4.53k
1k
4.53k
VL2
GND
2913 TA01a
22nF
TIMEOUT = 200ms
2913fb
1
