0439151403 Overview

VERTICAL HEADER 10CKT

0439151403 Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typeMale pin
Spacing - Mating0.394"(10.00mm)
Number of pins10
Number of rows2
Line spacing - patching-
Number of pins loadedall
styleBoard to cable/wire
shieldCovered - 4 walls
Installation typeThrough hole
Terminationwelding
Fastening typelatch holder
Contact Length - Mating-
Contact length - terminal0.138"(3.50mm)
Overall contact length-
Insulation height0.827"(21.00mm)
Contact shaperectangle
Contact surface treatment - matingsilver
Contact Surface Treatment Thickness - Mating100.0µin(2.54µm)
Contact Surface Preparation - Columntin
Contact materialCopper-zirconium alloy
Insulation MaterialsPolyamide (PA46), nylon 46, glass fiber reinforced
characteristicBoard guides, board locks
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colorblack
Rated current-
Rated voltage-
Joint stack height-
Contact Surface Treatment Thickness - Column-
applicationAutomotive, general, industrial, medical, telecommunications

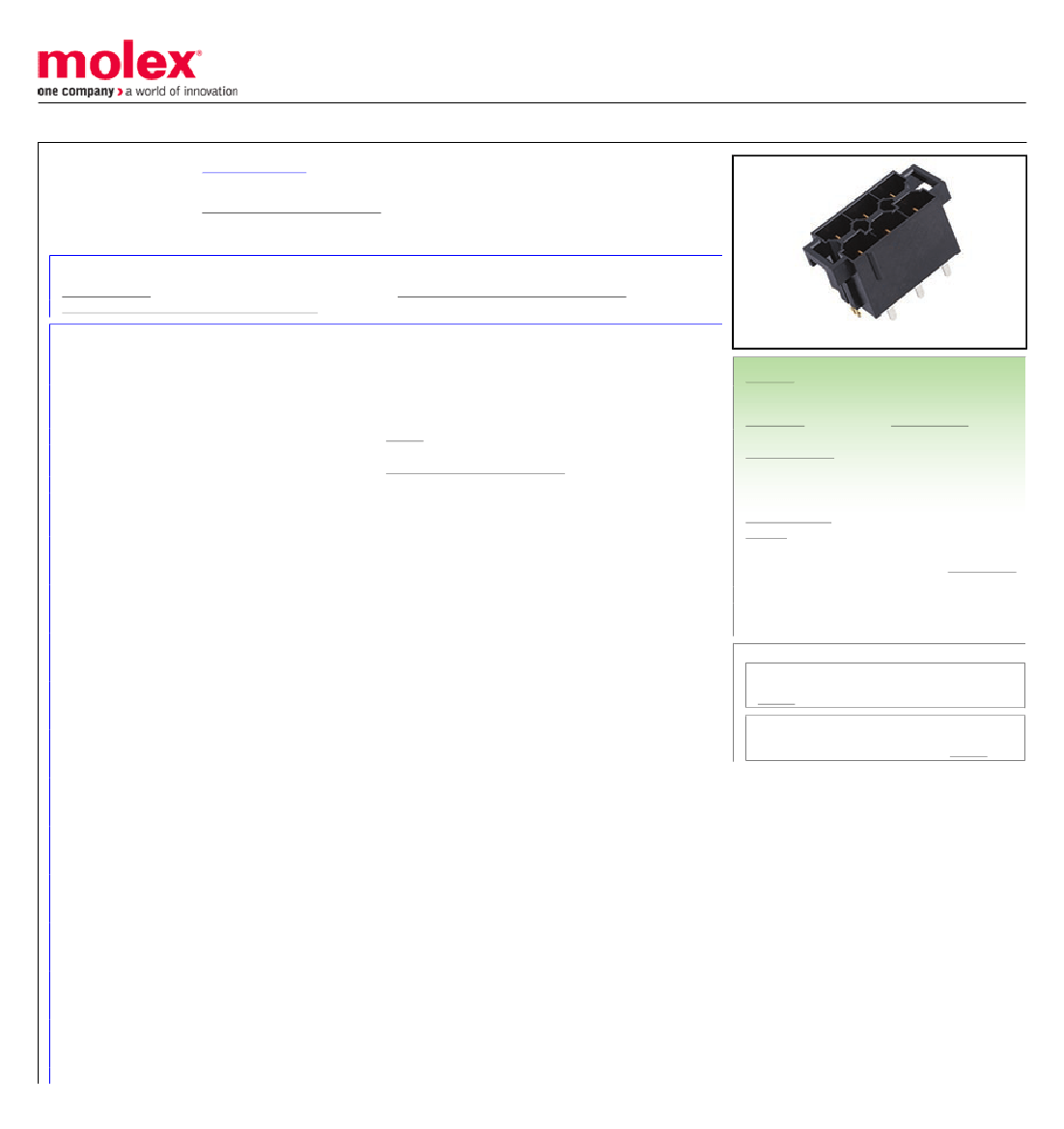

This document was generated on 11/26/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0439151403
Active
Mini-Fit Sr. Power Connectors
10.00mm Pitch Mini-Fit Sr. Header, Dual Row, Vertical, 1.57mm PCB Thickness, Silver
(Ag) Plating, 10 Circuits
Documents:
Drawing (PDF)
Product Specification PS-42815-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
PCB Headers
43915
Power, Wire-to-Board
Mini-Fit Sr. Power Connectors
Mini-Fit Sr.
889056247405
No
10
10
Black
30
No
94V-0
No
No
None
Yes
Brass
Silver over Nickel
Tin over Nickel
High Temperature Thermoplastic
22.172/g
2
Vertical
3.50mm
Yes
Yes
1.57mm
Tray
10.00mm
10.00mm
2.540µm
2.540µm
Yes
Yes
Fully
No
No
-40° to +105°C
Through Hole
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/61/2018 (27 June
2018)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
43915 Series
Mates With
Mini-Fit Sr. Receptacle Housing 43914
