CFP2 / CFP4

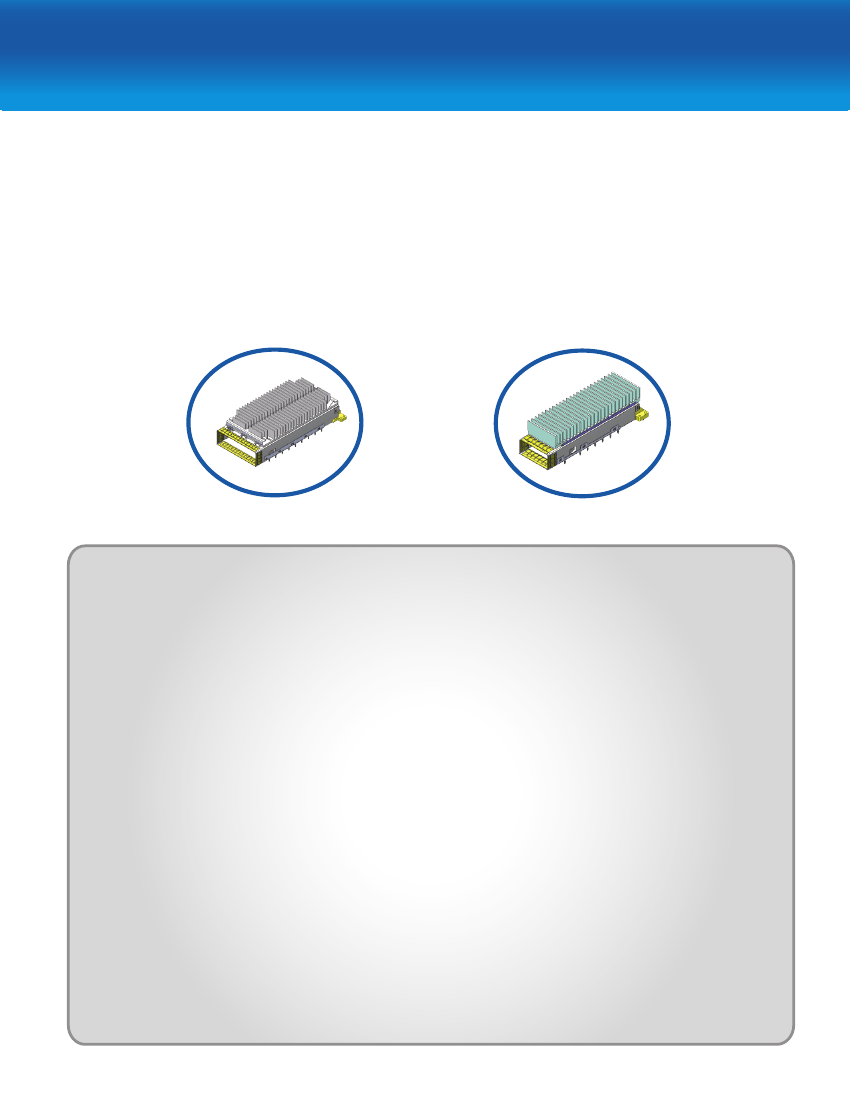

The CFP2 and CFP4 (surface mount receptacle connector) are considered as a candidate of future
generation of multi hundred Gbps system. Both are 0.6mm pitch with the CFP2 having 104 positions
and the CFP4 having 56 positions. They are rated for 28 Gbps per channel with resonance dampening
for improved signal integrity. Both the CFP2 and CFP4 have a plug connector on the mating interface
that improves accuracy and aids in achieving high speed performance.
Speci cation Highlights
The CFP2 and CFP4 interconnect systems are comprised of insert molding assemblies for
top side contacts and press-fit cage assemblies.
Current Mechanical Characteristics
CFP2
•
•
•
•
•
•
•
•
RSS Tolerance
Host Depth (mm)
Host Height (mm)
Ports in 365(445)mm Faceplate
Max Insertion Force with Heat-sink:
Max Insertion Force without Heat-sink:
Max Withdrawal Force with Heat-sink:
Max Withdrawal Force without Heat-sink:
CFP4
Materials
•
Cage
o
Base Material: Copper Alloy
o
Heat Sink: Aluminum Alloy
Options
•
Heat Sink
•
Dust Cover
•
Connector Cover
•
EMI Gasket
0.19mmMin
84.5
12.9
8(10)
6N
4.5N
5.4N
3.9N
67
10
16(19)
4.0N
2.5N
Electrical Characteristics
•
Operating Voltage: 3.3 V
24
Ordering Information
CFP2/CFP4
Host Connector
U99
X
SERIES DESIGNATION
STYLE
B
- CFP2 Connector
C
- CFP4 Connector
U99
-
X XXX
-
X 0 0 T
PACKAGING
T
- Tape and Reel Packaging
OPTION 2
0
- Standard
OPTION 1
0
- Standard
T
0
0
1
XXX
NUMBER OF POSITIONS
104
- CFP2 Connector
056
- CFP4 Connector
(To be Tooled)
CONTACT PLATING
2
-
30 μ" Gold Plating on Mating Area; Matte Tin
Plating on Termination
3
-
15 µ"
Gold
Plating
on Mating Area; Matte
Tin
Plating
on
Termination
CFP2/CFP4
Plug Connector
U56
X
SERIES DESIGNATION
STYLE
B
- CFP2 Connector
C
- CFP4 Connector
U56
-
X XXX
-
X 0 0 T
PACKAGING
T
- Tape and Reel Packaging
OPTION 2
0
- Standard
OPTION 1
0
- Standard
T
0
0
1
XXX
NUMBER OF POSITIONS
104
- CFP2 Connector
056
- CFP4 Connector
(To be Tooled)
CONTACT PLATING
2
-
30 μ" Gold Plating on Mating Area; Matte Tin
Plating on Termination
3
-
15 µ"
Gold
Plating
on Mating Area; Matte
Tin
Plating
on
Termination
CFP2/CFP4 Cage
U98
X
SERIES DESIGNATION
STYLE
B
- CFP2 single row
C
- CFP4 single row
NUMBER OF PORT IN ROW
1
- Nx1
ports
2
- Nx2
ports
3-
Nx3
ports (To be Tooled)
4
- Nx4
ports (To be Tooled)
6
- Nx6
ports (To be Tooled)
U98
-
X X X 01
-
0 0 X X
PACKAGING
1
- Tray Packaging
A
- Tray Packaging;
Heat
Sink and Clip
or
Light Pipe Shipped
Assembled
CONNECTOR COVER
0
-
With Connector Cover and Kickout Springs
C
- With Connector Cover, no Kickout Springs
OPTIONAL DUST COVER
0
- Without Dust Cover
D
- With Dust Cover (Ship
Loose)
PLATING
1
- Nickel
2
- Matte
Tin
APPLICATION
1
- Press Fit Pins - 2.5
mm Long
X
X
X
X
X
HEAT SINK OPTION
1 - No
Heat
Sink and No Clip Shipped
2 - Fin Style (Black Oxide)
Heat
Sink and Clip (H=10.75mm)
*Other custom heat sink options are available.
X
1
Telephone: (416)-291-4401
All specifications are subject to change without notice.
Website: www.amphenol-highspeed.com
25
Email: cages@amphenol-highspeed.com
