614-93-175-16-005012 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 614-93-175-16-005012

Preview

614-93-175-16-005012: DescriptionSKT CARRIER PGA; CategoryThe connector socket; File Size595KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

614-93-175-16-005012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	614-93-175-16-005012	-	-	View	Buy Now

614-93-175-16-005012 Overview

SKT CARRIER PGA

614-93-175-16-005012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	1.6 inch
subject depth	0.016 inch
body length	1.6 inch
Contact structure	16X16
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA175
Dielectric withstand voltage	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	175
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

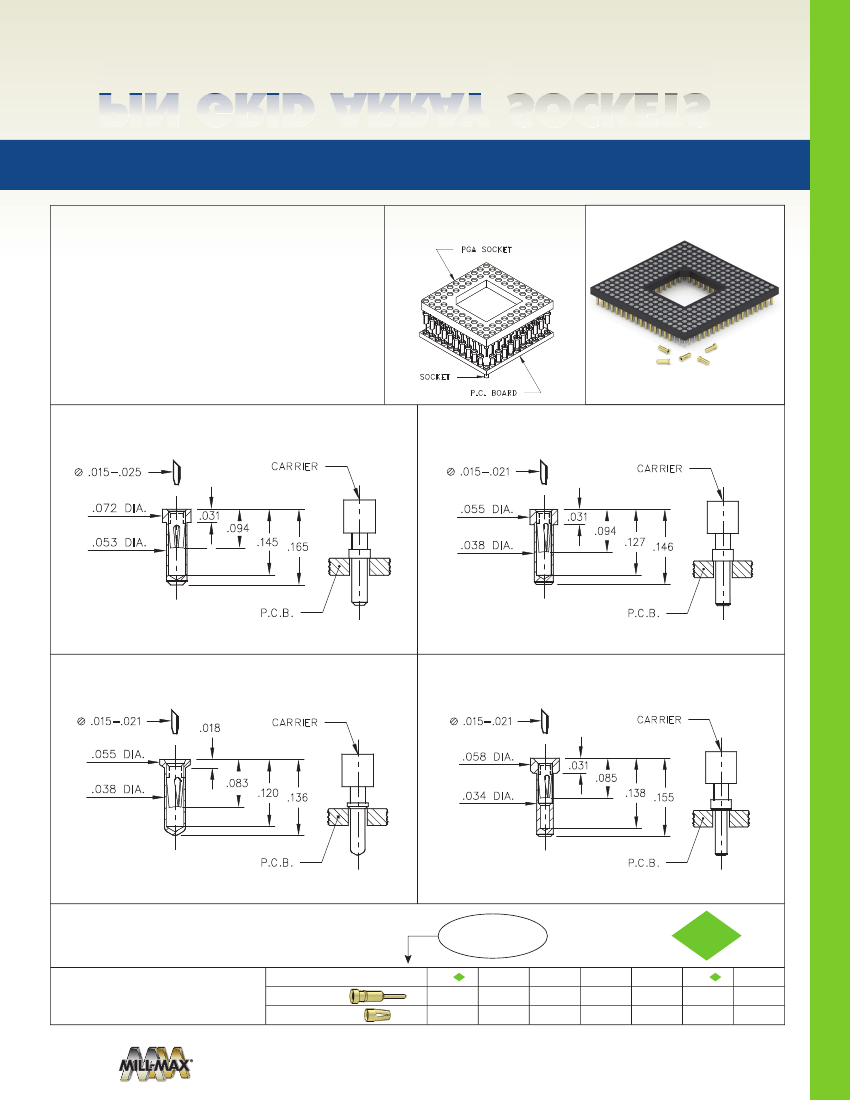

PIN GRID ARRAY

SOCKETS

SERIES 605, 614 • .100” AND INTERSTITIAL GRID •

CARRIER TYPE

•

Series 614 & 605 PGA carrier sockets o er 4 receptacle styles

•

Many combinations of receptacles and clips to cover all

•

applications

Carrier sockets provide a convenient way of loading groups

of receptacles onto a PC board

Removeable insulator makes carriers ideal for low pro le

applications

High temperature PCT polyester insulator material suitable

for all forms of soldering including lead-free

For Electrical, Mechanical and Environmental Data, see

page 137 for details

APPLICATION OF

PGA SOCKET CARRIERS

SERIES 614...001, 002, 003

LOW PROFILE SOCKET

.015-.025

.072 DIA.

.053 DIA.

.015-.021

.055 DIA.

SERIES 614...007

MINIATURE SOCKET

.031

.094

.145 .165

.038 DIA.

.031

.094

.127 .146

P.C.B.

For .100” Grid Only

SERIES 614...012

LOWEST PROFILE SOCKET

.015-.021

.055 DIA.

.038 DIA.

.083

.120 .136

.018

.015-.021

.058 DIA.

SERIES 605...048

REDUCED BARREL SOCKET

.031

.085

P.C.B.

XX=Plating Code

See Below

2011/65/EU

RoHS - 2

Visit www.mill-max.com/pga

to con gure a formal part number

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

13

10

µ”

Au

30

µ”

Au

93

200

µ”

Sn/Pb

30

µ”

Au

43

200

µ”

Sn

30

µ”

Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 139 | IC SOCKETS / TO SOCKETS

.034 DIA.

.138 .155
