8768680000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8768680000

8768680000: DescriptionRELAY GEN PURPOSE DPDT 6A 24V; CategoryMechanical and electronic products relay; File Size81KB，4 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8768680000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8768680000	-	-	View	Buy Now

8768680000 Overview

RELAY GEN PURPOSE DPDT 6A 24V

8768680000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.029 A
Coil operating voltage (DC)	18 V
Coil power	700 mW
Coil release voltage (DC)	2.4 V
Coil resistance	821.92 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
physical size	29mm x 12.6mm x 25.5mm
Guideline	TUV; UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	4 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

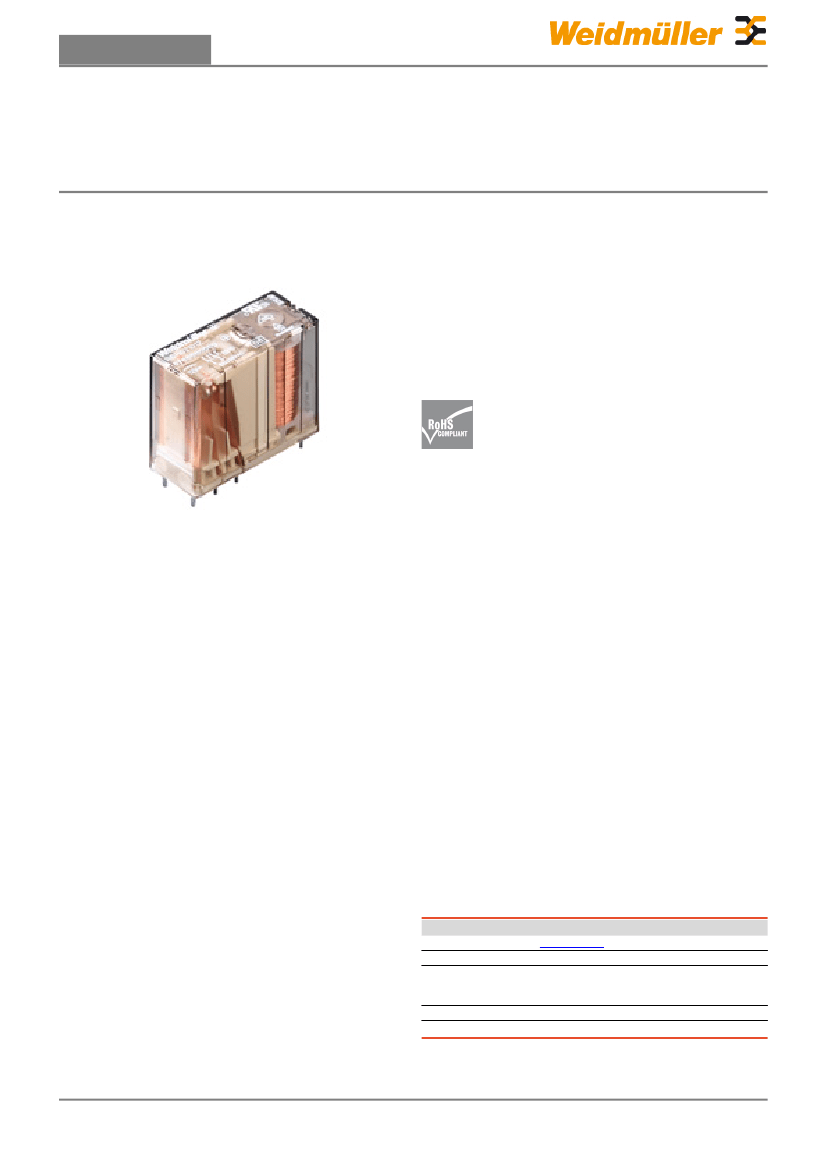

Data sheet...

RIDERSERIES

RCH S21024

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-292083

www.weidmueller.com

• Relay with positively driven contacts acc. to EN 50205

• 2 CO contacts or 1 NOC + 1 NCC

• 1500 VA switching capacity

• 6 kV impulse withstand voltage

General ordering data

Order No.

Type

Version

GTIN (EAN)

Qty.

8768680000

RCH S21024

RIDERSERIES, No. of contacts: 2, CO contact,

AgNi, Rated control voltage: 24 V DC, Continuous

current: 6 A, Screw connection

4032248437474

20 pc(s).

Creation date April 2, 2013 4:49:06 PM CEST

Catalogue status 20.12.2012 / We reserve the right to make technical changes.
