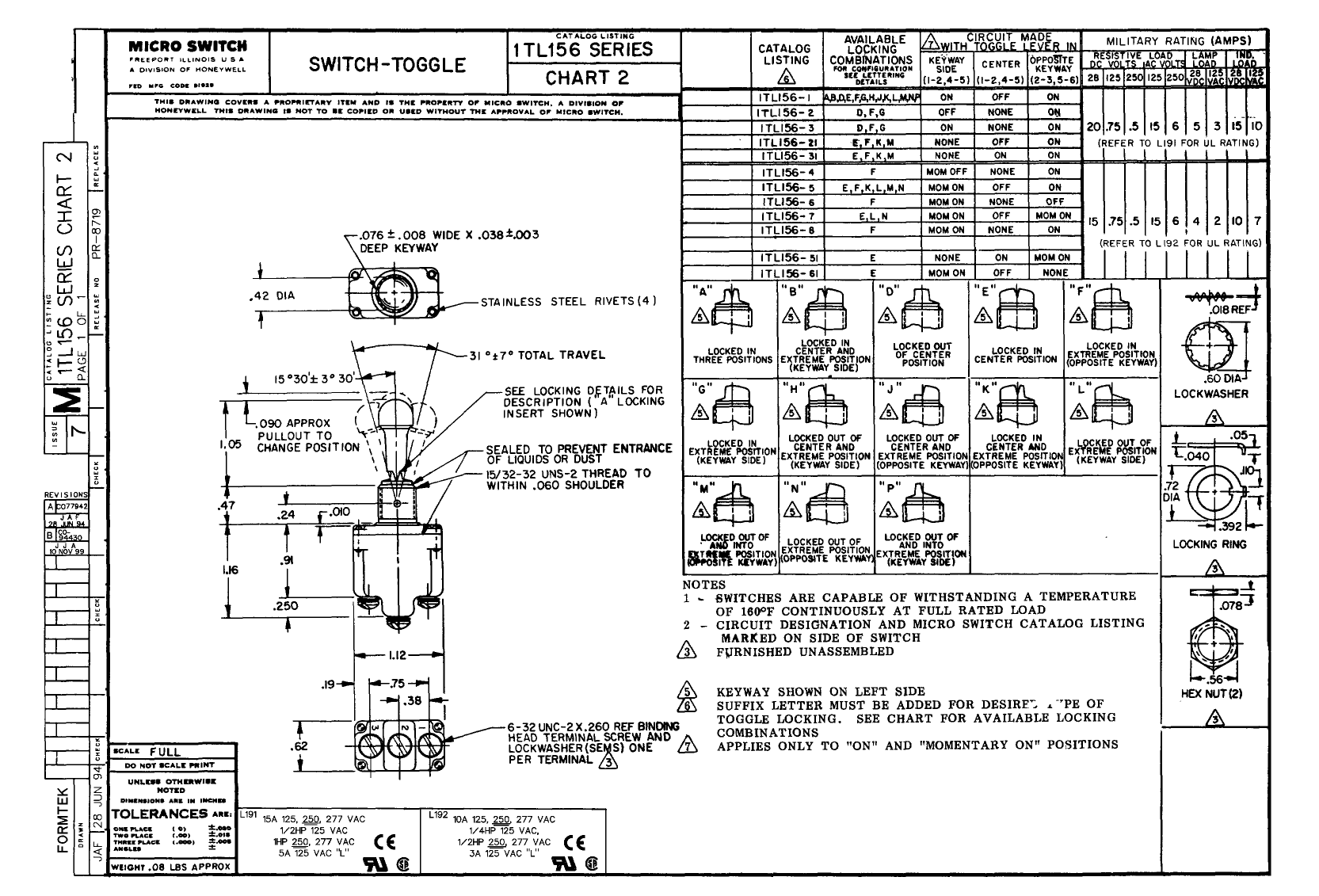

1TL156-1L datasheet, PDF - EEWORLD Datasheet

1TL156-1L: DescriptionToggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size71KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

1TL156-1L Overview

Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	15.75 mm
body height	29.46 mm
Body length or diameter	28.45 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	1TL156
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1
