566 Overview

Audio/RCA Connector

566 Parametric

Parameter NameAttribute value
Objectid1496450083
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys ManufacturerKeystone Electronics
Samacsys Modified On2022-07-13 20:43:11
audio typePHONO
subject depth0.875 inch
Body diameter0.175 inch
Body/casing typePLUG
Configuration1X1 VERTICAL
Connector typeGENERAL PURPOSE AUDIO
Contact point genderMALE
Contact styleRND PIN-SKT
Installation methodSTRAIGHT
Installation typeCABLE
Number of connectorsONE
Number of poles1
Number of ports1
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
R
TI
F
I
ED
ISO
Q
900
T
Y
CE
2
UALI

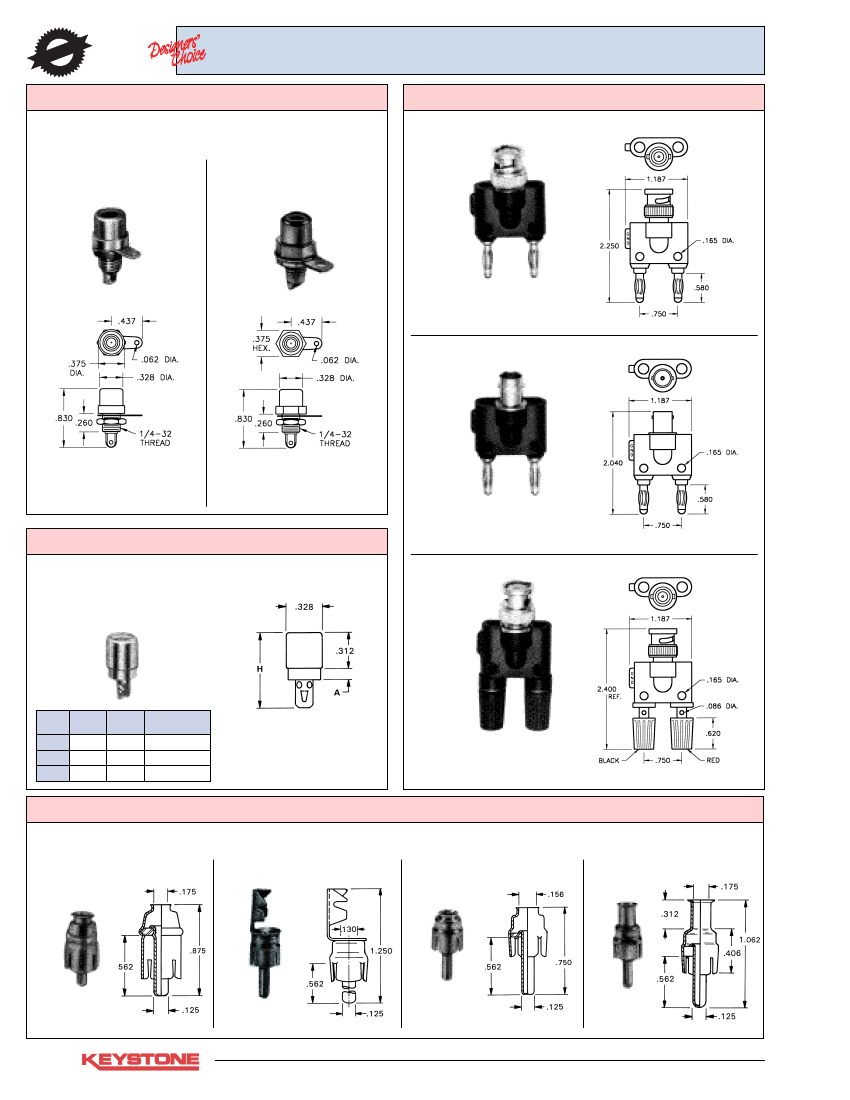

PLUGS & JACKS
BNC TO DUAL BANANA PLUGS
BNC MALE TO DUAL BANANA PLUGS
Color coded for ease of identification
Complete with nut and soldering lug
MATERIAL:
Brass, Nickel Plate
PANEL MOUNT PHONO JACKS
Mats with 1/8" diameter pin
Mounts to panel in .296 Dia. Hole
ROUND BASE
HEX BASE
MATERIAL
Body:
Molded Plastic
Connector:
Brass, Nickel Plate
Center Contract:
Brass, Gold Plate
Banana Plug:
Beryllium Copper, Nickel Plate
CAT. NO. 7020
BNC FEMALE TO DUAL BANANA PLUGS
CAT. NO. 580 (RED INSULATOR)
CAT. NO. 574
(BLACK INSULATOR)
CAT. NO. 576
(BLACK INSULATOR)
RIVET TYPE PHOTO JACKS
Mates with 1/8" diameter pin
Rivet type-mounts in .296 Dia. Hole
Available for 1/16" 3/32" 1/8" thick
MATERIAL
Body:
Molded Plastic
Connector:
Brass, Nickel Plate
Center Contract:
Brass, Gold Plate
Banana Plug:
Beryllium Copper, Nickel Plate
CAT. NO. 7021
BNC MALE TO DUAL BINDING POSTS (BLACK & RED)
CAT.
NO.
568
569
570
A
.078
.109
.140
H
.656
.812
.812
INSULATOR
THICKNESS
1/16”
3/32”
1/8”
MATERIAL
Shell:
Steel
Contract:
Brass
Plating:
Tin
MATERIAL
Body:
Molded Plastic
Connector:
Brass, Nickel Plate
Center Contract:
Brass, Gold Plate
Banana Plug:
Brass, Nickel Plate
CAT. NO. 7022
PHONO PLUGS
Mates with 1/8" diameter jacks
MATERIAL:
Shell:
Steel, Tin Plate
Pins:
Brass, Nickel Plate
Longer Skirt for Better Grip
Strain Relief Lug Crimps to Wire Insulation
Conventional Type
Crimp or Solder Type Extra Long Handle
CAT. NO. 566
CAT. NO. 565
CAT. NO. 561
CAT. NO. 567
70
31-07 20th Road
Astoria, New York 11105-2017
(718) 956-8900
FAX (718) 956-9040
e-mail: kec@keyelco.com
WebSite: keyelco.com
