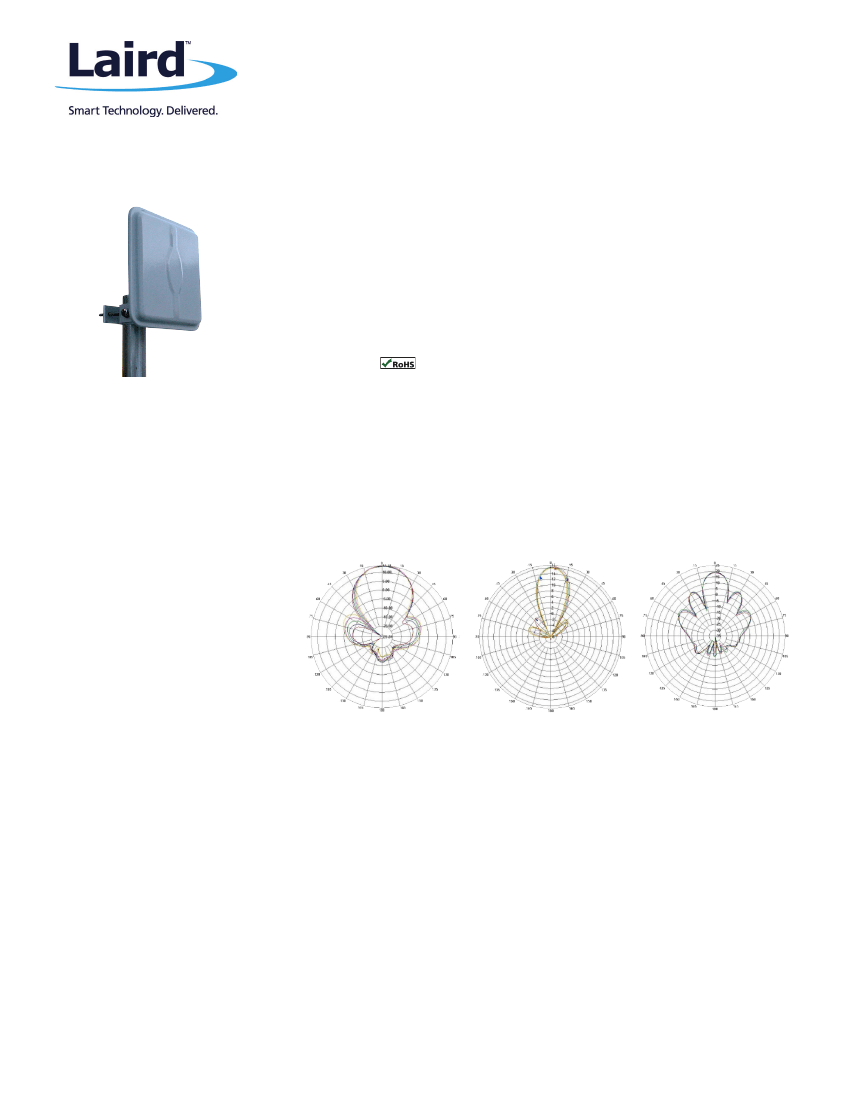

Flat Panel Directional Antenna
PA24
2400-2483 MHz OPERATION FLAT PANEL DIRECTIONAL ANTENNA
The 2.4 GHz flat panel directional antennas by Laird offer high gain in a thin low profile
package. The antennas are constructed of a gray color UV resistant ABS plastic radome with
an aluminum backplate. The antenna can be used in horizontal or vertical polarization. The die
cast aluminum or galvanized steel bracket affords +/- 45 deg up or down tilt adjustment and
the stainless steel hardware assures a long service life. The PA24-13 and PA24-19 antenna can
be surface mounted or pole mounted. The PA24-16 is pole mounted only. All antennas comes
with an integral N female connector standard.
FEATURES
•
•
•
•
•
High gain / low profile
Pole mount or surface mount
Rugged and weatherproof
Vertical or horizontal polarization
Type N female connector
MARKETS
•
•
•
•
•
Wireless LAN applications
Client antennas
802.11b/g applications
OEM wireless data
WiMAX
ANTENNA PATTERNS
PA24-13
PA24-16
PA24-19
Americas: +1.847 839.6925
IAS‐AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS‐EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS‐AsiaSales@lairdtech.com
www.lairdtech.com
Flat Panel Directional Antenna
PA24
SPECIFICATIONS
PARAMETER
Frequency range
Gain
3dB beamwidth (H & V)
Front to back
Cross polarization
VSWR
Impedance
Input power
Operating temperature
Pole size
Weight
Dimension (dia x depth)
Bracket tilt
PA24-13
2400 - 2483 MHz
13 dBi
35°
20 dB
-20 dB
1.5:1
50 ohm
100 watts
-40° to +70°C
1 to 2 in (25 to 50 mm)
17.6 oz (0.5 kg)
7.5 x 7.5 x 0.8 in
(190 x 190 x 20 mm)
45°
PA24-16
2400 - 2483 MHz
16 dBi
26°
27 dB
-20 dB
1.5:1
PA24-19
2400 - 2483 MHz
19 dBi
17.5°
30 dB
-20 dB
1.5:1
50 ohm
100 watts
-40° to +70°C
1 to 2 in (25 to 50 mm)
31.5 oz (0.9 kg)
11 x 11 x 0.8 in
(279 x 279 x 20 mm)
45°
-40° to +70°C
1 to 2 in (25 to 50 mm)
60 oz (1.7 kg)
15.3 x 14.6 x 0.8 in
(389 x 368 x 20 mm)
45°
WIND LOADING (LBS.)
MODEL
PA24-13
PA24-16
PA24-19
SQ. IN
56
121
163
100 MPH
14 lbs
30 lbs
41 lbs
125 MPH
22 lbs
47 lbs
64 lbs
100 MPH WITH ½ IN RADIAL ICE
14 lbs
32 lbs
41 lbs
SYSTEM ORDERING
PA24-13
2.4 GHz 13 dBi flat panel directional
antenna PA24-16
2.4 GHz 16 dBi flat panel
directional antenna PA24-19
2.4 GHz 19 dBi flat
panel directional antenna
NOTES
• All shipments F.O.B. Schaumburg, IL 60173
ANT-DS-PA24 1115
