High Temperature “DCPM” Dura-Con Micro-D Plug Connectors
Technology
Cinch has teamed our proven twist pin technology with these custom designed
insulators capable of meeting the extreme mechanical and electrical needs in
the harshest environments of military/aerospace and industrial applications
such as Down Hole Directional Drilling.
Custom
Insulator

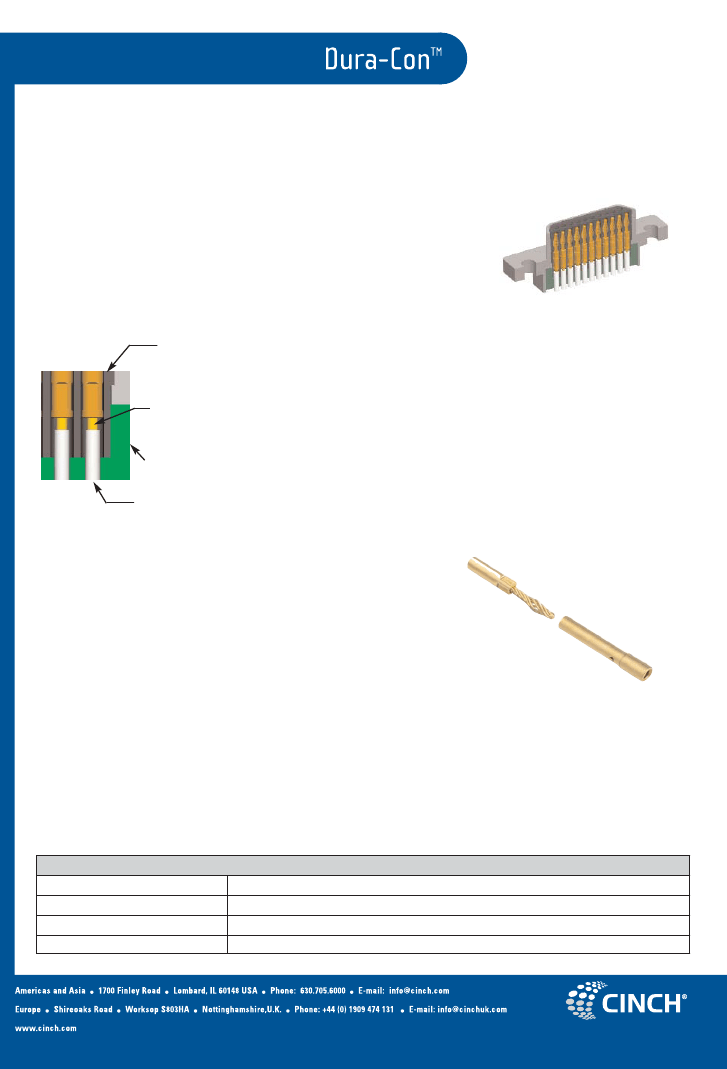

Cinch's unique plug insulators are designed to provide increased
electrical protection between contact cavities preventing any
potential shorts due to exposed wire or epoxy voids. Comprised of
PEEK material these connectors offer superior performance and long
Exposed Conductor
Recessed Into Insulator
2-Part Epoxy
life in severe environments.
Wire Insulation
Cinch’s Twist Pin Advantages
Combine the twist pin performance with increased temperature range
BeCu wire strands provide seven points of electrical contact
Achieve high mating cycles and better resistance to shock and vibration
Contact plating per MIL-DTL-83513
Approved system applications (Aerospace, Defense and Geo-thermal)
Qualified and approved to Mil-DTL-83513
Product Offerings
Full harnessing capabilities ranging from simple point-point to complex with many branches
Custom configurations and modifications available to fit unique packaging and design requirements
Performance Characteristics
Operating Temperature
Shock
Vibration

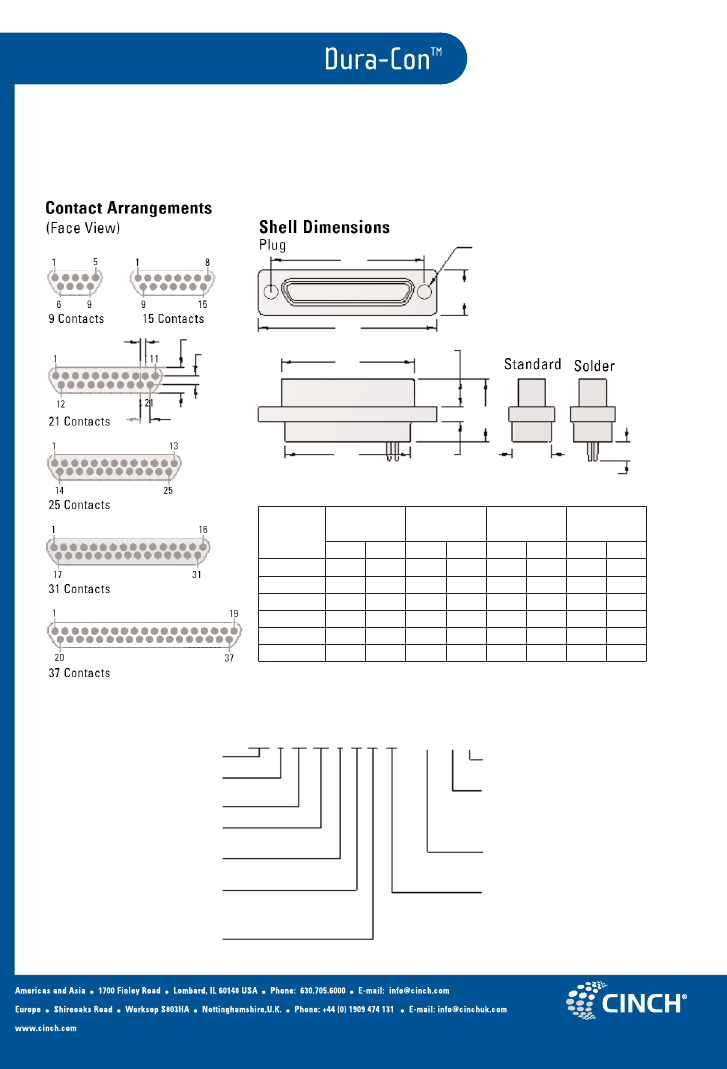

Sizes
-40°C to 175°C (-40°F to 347°F)
50 G’s per MIL-STD-1344, Method 2004, Condition E (EIA-364-27, Condition E)
20 G’s per MIL-STD-1344, Method 2005, Condition IV (EIA-364-28, Condition IV)
9, 15, 21, 25, available; 31 and 37 sizes to be tooled
