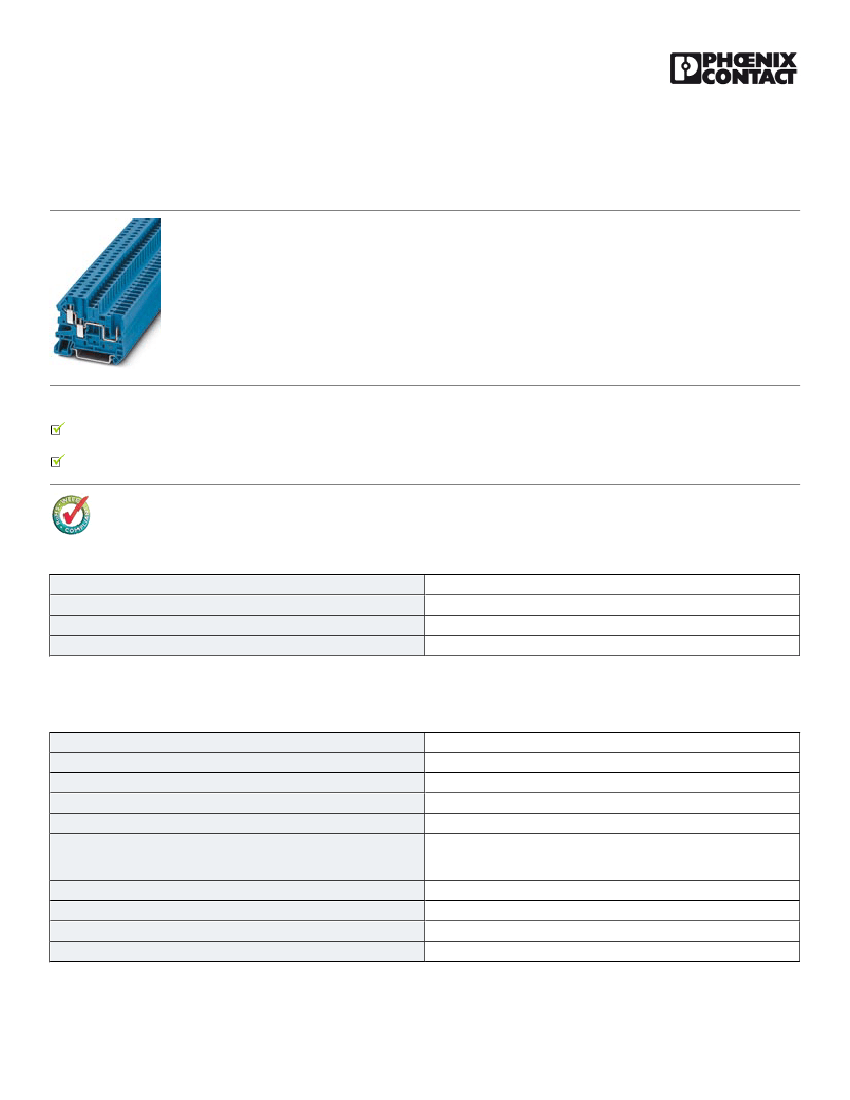

Feed-through terminal block - UT 4-TWIN/ 1P BU - 3060270
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Screw/plug-in connection, Cross section: 0.14 mm² - 6 mm²,
AWG: 26 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Product Features
Plugs with different conductor exit directions (lateral or upwards) enable practical, efficient wiring. This results in a high degree of flexibility, which is
required in various areas of application.
Screw flanges for securely latching plugs
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
13.15 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
1
3
blue
PA
V0
32 A (In the case of a 6 mm² conductor cross section, the maximum
load current must not be exceeded by the total current of all connected
conductors)
6 kV
3
III
I
31.10.2013 Page 1 / 27
https://www.phoenixcontact.com/us/products/3060270
Feed-through terminal block - UT 4-TWIN/ 1P BU - 3060270
Technical data
General
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
IEC 61984
32 A
500 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
55.7 mm
47.5 mm
55 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
0.14 mm²
1.5 mm²
Screw/plug-in connection
9 mm
A4
M3
31.10.2013 Page 2 / 27
https://www.phoenixcontact.com/us/products/3060270
Feed-through terminal block - UT 4-TWIN/ 1P BU - 3060270
Technical data
Connection data
Tightening torque, min
Tightening torque max
0.6 Nm
0.8 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141117
27141117
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
31.10.2013 Page 3 / 27
https://www.phoenixcontact.com/us/products/3060270
Feed-through terminal block - UT 4-TWIN/ 1P BU - 3060270
Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
600 V
C
26-10
30 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
600 V
C
26-10
30 A
600 V
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-10
30 A
300 V
C
26-10
30 A
150 V
D
26-10
10 A
300 V
cULus Recognized
Accessories
Accessories
Bridge
31.10.2013 Page 4 / 27
https://www.phoenixcontact.com/us/products/3060270
Feed-through terminal block - UT 4-TWIN/ 1P BU - 3060270
Accessories
Plug-in bridge - FBS 2-6 - 3030336
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-6 - 3030242
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-6 - 3030255
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-6 - 3030349
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-6 - 3030271
Plug-in bridge, Number of positions: 10, Color: red
31.10.2013 Page 5 / 27
