High-Speed, Isolated,
RS-422/485 Repeater
485OPDR-HS
PRODUCT FEATURES
•
•
•
•
•
2 kV Isolation
IEC Level 2, ± 4 kV Contact ESD Protection,
IEC Level 3, ± 8 kV air ESD Protection
1.5 Mbps Data Rate
-40 to 80°C Operating Temperature
NEMA TS2
485OPDR-HS

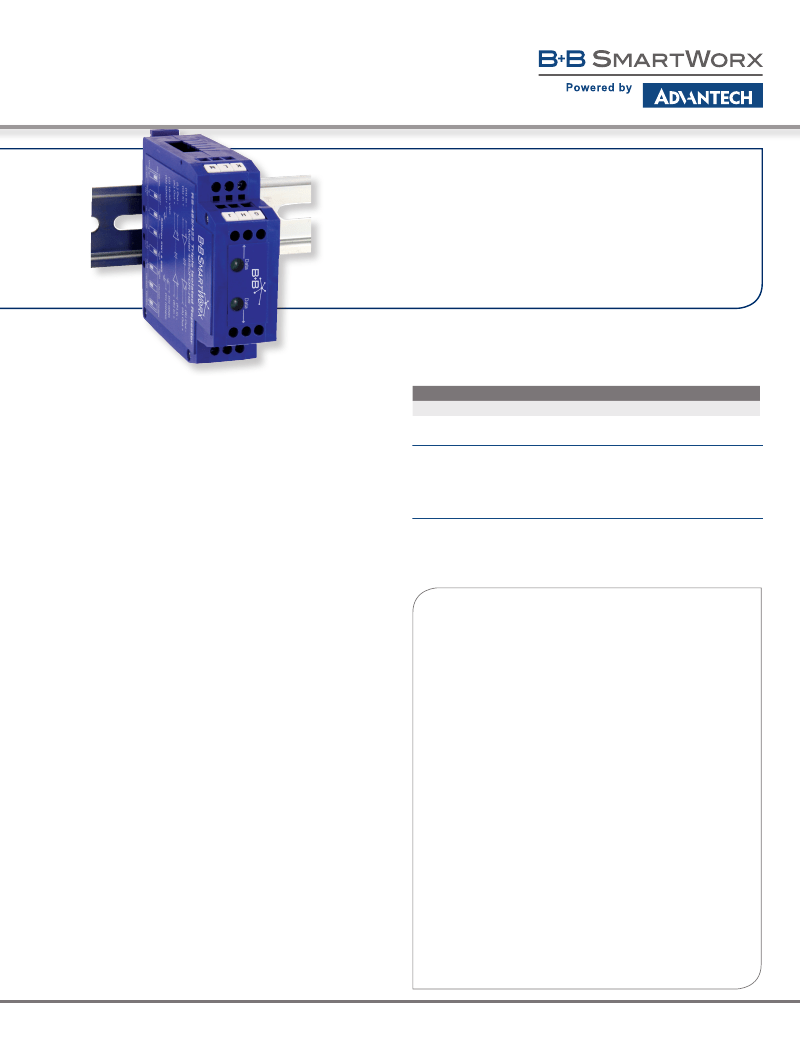

The 485OPDR-HS is a high speed, optically isolated RS-422/485 repeater
that supports data rates up to 1.5 Mbps, making it suitable for use in
fieldbus systems such as Profibus.
Isolation
The 485OPDR-HS provides 2 kV digital Isolation with 8 kV air ESD
protection and 600 W transient voltage suppression on the data lines.
Range Extension
The 485OPDR-HS can be used to extend the range of a network up to
4000 ft. (1.2 km), depending on data rates, and to add additional nodes.
2-Wire RS-485, 4-Wire RS-485 and RS-422 are supported. Data signals
and the power inputs connect to built-in terminal blocks.
Enclosure
The repeater operates on externally sourced 10 to 30 VDC power. The
enclosure has a DIN rail mount that is designed to fit easily on a standard
35mm rail.
ORDERING INFORMATION
MODEL NUMBER
485OPDR-HS
High Speed Isolated RS-422/485 Repeater
ACCESSORIES
MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24 - DIN rail mount power supply 24VDC, 1.7 A output power
Profibus Overview
PROFIBUS
“Process Field Bus” is communication standard for
automation technologies and applications.
PROFIBUS DP
(“Decentralized Peripherals”) is the most common
version of Profibus. It is used for deterministic communication
between Profibus masters and their remote I/O slaves and supports
numerous standard diagnostic options. Applications include production
automation processes and operating sensors/actuators via
centralized controllers.
PROFIBUS PA (“Process Automation”) is less prevalent and tends
to be application specific. It is often used to monitor measurement
equipment via process control systems. PA and DP can be used
together to help bridge application networks. PA uses the same
protocol as DP so it can be linked to a faster DP backbone network to
better transmit process signals from equipment to controllers. PA can
also be used in hazardous areas. The IEC 61158-2 rated physical layer
can bus-power instruments and limit current flow to prevent
explosive conditions.
PROFIBUS FMS
(“Field Bus Message Specification”) is a complex
communication protocol for more sophisticated communication needs.
It supports non-deterministic data communication between
Profibus masters.
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
485OPDR-HS_0316ds
High-Speed, Isolated,
RS-422/485 Repeater
485OPDR-HS
SPECIFICATIONS
RS-422/485
Connector
Terminal Block
SIGNALS
TDA(-), TDB(+), RDA(-), RDB(+), GND
RS-422
RS-485 2-Wire and 4-Wire
Protected GND on Isolated Side
DATA RATE
Bit-Wise Enabled
Up to 1.5 Mbps
ISOLATION
Method
Optical
Rating
2000 V
SURGE SUPRESSION
Method
TVS
Rating
12 V bi-directional avalanche breakdown device
600 W peak power dissipation
Response Time
< 1 pico-second
POWER
Connector
Terminal Block
Voltage
10 to 30 VDC
700 mW steady state, inrush current at 24 VDC
Power Consumption
= 750 mA for 500 μS
Source
External
TERMINAL BLOCKS
Wire Size
24 to 14 AWG
Torque
4 kgf-cm
LED INDICATORS
2 DATA LEDs (Green)
Data LED for each side of isolator
Flashes when data transmitted
ENCLOSURE
Material
Plastic
IP Rating
20
Dimensions
1.0 x 3.1 x 3.7 in (2.5 x 7.9 x 9.5 cm)
Mounting
35 mm DIN (Panel Mount Adapter is available)
ENVIRONMENTAL
Operating Temperature
-40 to 80 C (-40 to 176 F)
Storage Temperature
-40 to 85 C (-40 to 185 F)
Operating Humidity
0 to 95% Non-condensing
MTBF
117316
MTBF Calculation Method MIL217F Parts Count Reliability
APPROVALS AND CERTIFICATIONS
Agency Approvals
CE, FCC, NEMA TS2
EN61000-6-2 (Heavy Industrial)
EN61000-4-2 (ESD) ± 4 kV contact, ± 8 kV air
EN61000-4-3 (RI) 10 V/m, 80-1000 MHz; 3 V/m 1.3 to 2.7 GHz
EN61000-4-4 (EFT Burst) ± 2 kV DC ports; ± 1 kV signal ports
EN61000-4-5 (Surge) ± 2 kV common; ± 1 kV differential
EN61000-4-6 (CI) 10 Vrms, 0.15 to 80 MHz
Other
IEC60068-2-27 (Shock) 50 G Peak, 11 ms, 3 axes
IEC60068-2-6 (Vibration) 140-500 Hz, 4G, 3 axes
IEC60068-2-32 (Drop) 10 total drops from sides, corner, edges
Emissions FCC Class B, CISPR Class B (EN55022)

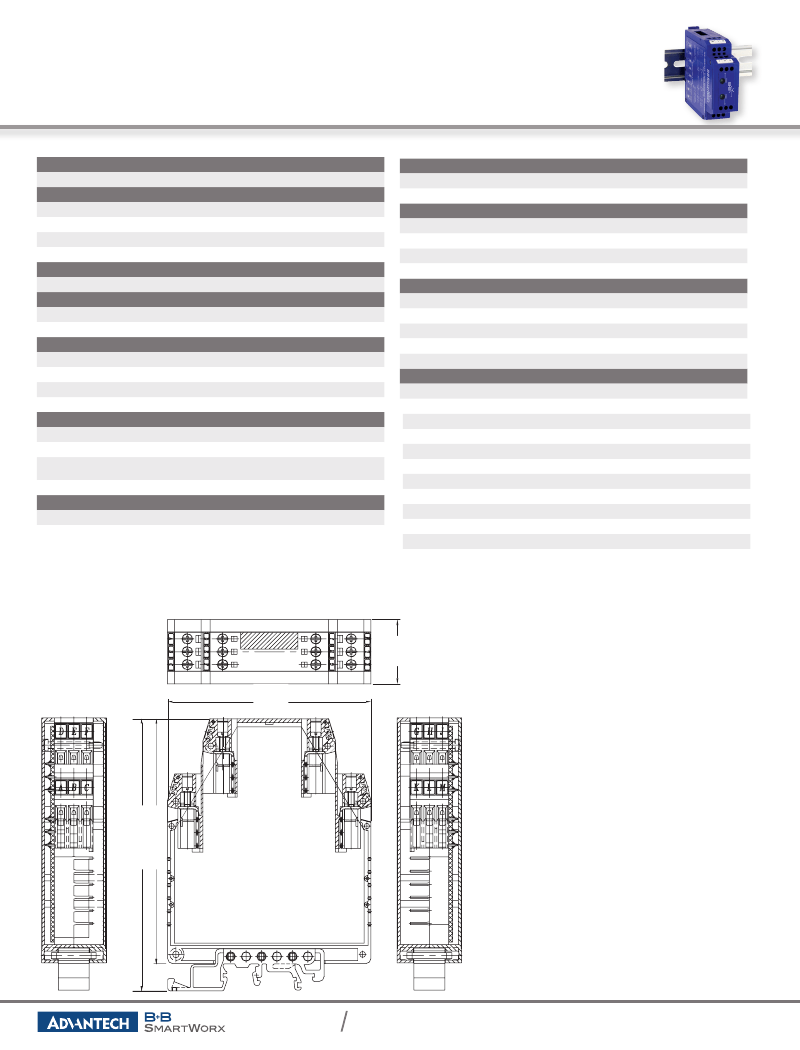

MECHANICAL DIAGRAM
7.9 cm
3.1 in
10.6 cm (4.2 in)
9.5 cm (3.7 in)
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
2.5 cm
1.0 in
