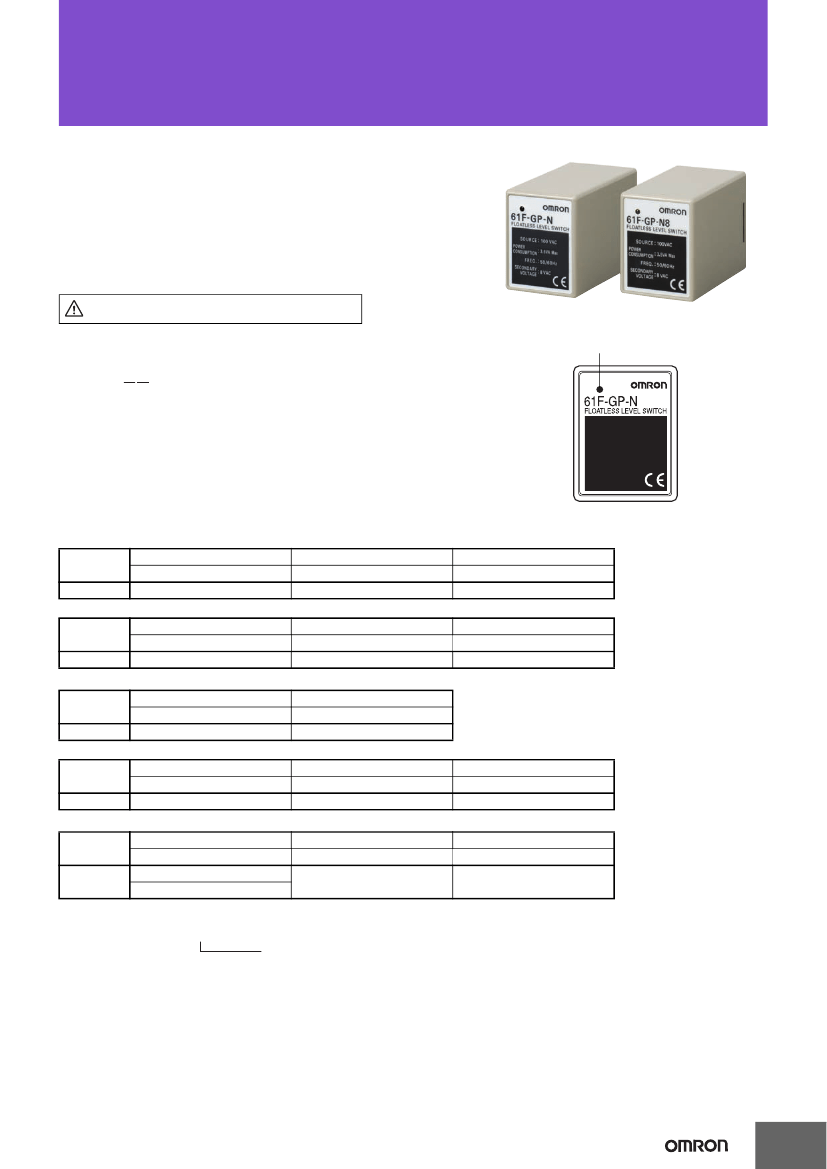

Floatless Level Switch (Compact, Plug-in Type)
61F-GP-N@
CSM_61F-GP-N@_DS_E_7_2
Space-saving Design Ideal for Control Panel
Downsizing. Easy Maintenance.
• Compact: 49.4
×
38
×
84 mm (H×W×D).
• Easy identification of operating status with LED operation indicator.
• Independent DPDT contacts on 11-Pin Models.
• CE marking and UL/CSA compliance.
Refer to
Safety Precautions for Floatless Level
Controllers.
■
Model Number Legend
61F-GP-@@
1 2
1. No. of Pins
N: 11 pins
N8: 8 pins
2. Type
Blank:
L 2KM:
L 4KM:
H:
D:
R:
T:
General-purpose
Long-distance (for 2 km)
Long-distance (for 4 km)
High-sensitivity
Low-sensitivity
Two-wire
High-temperature
Position of LED indicator
■
Ordering Information
Type
11-pin
Type
11-pin
Type
8-pin
Type
8-pin
Type
8-pin
General-purpose
Model
61F-GP-N
High-sensitivity
Model
61F-GP-NH
Tropical environments
Model
61F-GP-N-TDL
General-purpose
Model
61F-GP-N8
High-sensitivity
Model
61F-GP-N8H
61F-GP-N8HY
Note:
When ordering, specify the desired operating voltage at the end of the model number.
Example: 61F-GP-N [220 VAC]
Desired supply voltage
61F-GP-NT
Long-distance (for 2 km)
Model
61F-GP-N8L 2KM
Low-sensitivity
Model
61F-GP-N8D
Long-distance (for 4 km)
Model
61F-GP-N8L 4KM
Two-wire
Model
61F-GP-N8R
61F-GP-ND
High-temperature
Model
Long-distance (for 2 km)
Model
61F-GP-NL 2KM
Low-sensitivity
Model
61F-GP-NR
Long-distance (for 4 km)
Model
61F-GP-NL 4KM
Two-wire
Model
1
61F-GP-N@
■
Compact Plug-in Models (11-pin Type)
Specifications
Item
General-purpose
Controller
61F-GP-N
High-
temperature
Controller
61F-GP-NT
Long-distance
Controllers
61F-GP-NL 2KM
(for 2 km)
61F-GP-NL 4KM
(for 4 km)
For control of ordi-
nary purified water
in cases where the
distance between
sewage pumps
and water tanks or
between receiver
tanks and supply
tanks is long or
where remote con-
trol is required.
High-sensitivity
Controller
61F-GP-NH
(see note 4)
For control of liq-
uids with high spe-
cific resistance
such as distilled
water
Low-sensitivity
Controller
61F-GP-ND
Two-wire
Controller
61F-GP-NR
Controlling materials
and operating condi-
tions
For control of ordi- For control of ordi-
nary purified water nary purified water
or sewage water or sewage where
operating ambient
temperature is
high.
For control of liq-
uids with low spe-
cific resistance
such as salt water,
sewage water,
acid chemicals, al-
kali chemicals
For control of ordi-
nary purified water
or sewage water
used in combina-
tion with Two-wire
Electrode Holder
(incorporating a
resistor of 6.8 kΩ)
Supply voltage
Operating voltage
range
24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
85% to 110% of rated voltage
Interelectrode voltage
8 VAC
Interelectrode current
Approx. 1 mA AC max.
Power consumption
Approx. 3.5 VA max.
0 to approx. 4 kΩ
0 to approx. 1.3 kΩ
(for 2 km)
0 to approx. 0.5 kΩ
(for 4 km)
4 k to
∞ Ω
(for 2
km)
2.5 k to
∞ Ω
(for 4
km)
Approx. 10 kΩ to
approx. 40 kΩ
(see note 3)
Approx. 100 k to
∞Ω
0 to approx.
1.3 kΩ
0 to
approx. 2 kΩ
Approx. 0.12 mA
AC max.
Approx. 1 mA AC max.
Interelectrode operate
0 to approx. 4 kΩ
resistance
Interelectrode release
Approx. 15 k to
resistance
∞Ω
Response time
Cable length
(see note 1)
Control output
Ambient temperature
Ambient humidity
Insulation resistance
(see note 2)
Dielectric strength
(see note 2)
Life expectancy
Weight
Accessories
Approved standards
Approx. 15 k to
∞Ω
Approx. 4 k to
∞ Ω
Approx. 15 k to
∞Ω
Operate:80 ms max.
Release:160 ms max.
1 km max.
600 m max.
2 km max.
4 km max.
50 m max.
1 km max.
800 m max.
1 A, 250 VAC (Inductive load: cosφ = 0.4)
3 A, 250 VAC (Resistive load)
Operating:–10 to 55°C (–10 to 70°C for high-temperature controller)
Operating:45% to 85% RH
100 MΩ min. (at 500 VDC)
2000 VAC, 50/60 Hz for 1 min.
Electrical: 100,000 operations min.
Mechanical: 5,000,000 operations min.
Approx. 155 g
Hold-down clip PFC-N8
UL508, CSA C22.2 No.14, EN61010-1, EN61326-1 Industrial electromagnetic environment
Note: 1.
The length when using completely insulated, 600-V, 3-conductor (0.75 mm
2
) cabtire cables. Usable cable lengths will become shorter as
the cable diameter or number of conductors becomes larger. For details, refer to
Safety Precautions for Floatless Level Controllers.
2.
The insulation resistance and dielectric strength indicate values between power terminals and Electrode terminals, between power
terminals and contact terminals, and between Electrode terminals and contact terminals. For details, refer to
Safety Precautions for
Floatless Level Controllers.
3.
Possible to use with 15 kΩ or less, however, this may cause reset failure.
4.
61F-GP-NH High-sensitivity Controller uses advanced operation.
When the power supply voltage is applied, if there are some liquids between the electrodes (ground and operation electrodes), the inter-
nal relay will not operate.
When the power supply voltage is applied, if there are no liquids between the electrodes (ground and operation electrodes), the internal
relay will operate.
If the advanced operation does not satisfy applications, consider using 61F-N8HY controller which uses sequential operation.
2
61F-GP-N@
■

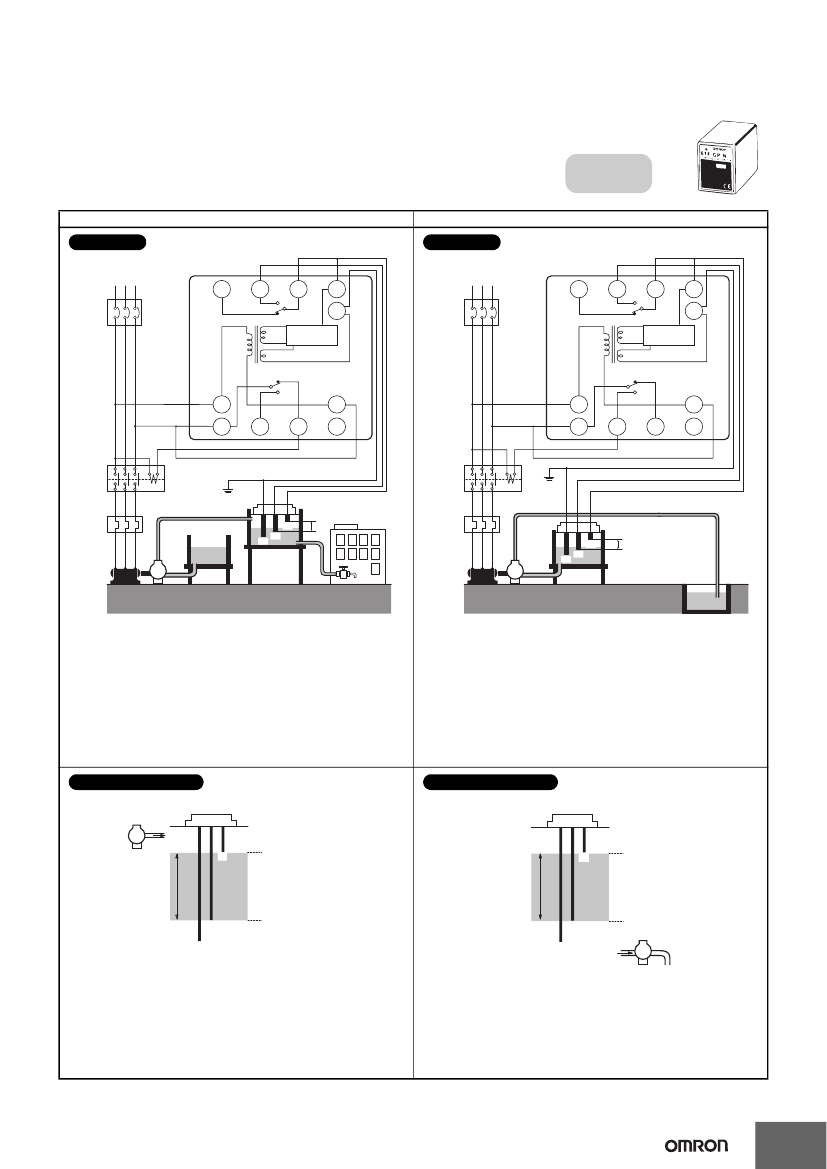

Connections
Automatic Water Supply and
Drainage Control
Compact, Plug-in Type
61F-GP-N
Dimensions:
page 14
Automatic Water Supply Control
Connections
Commercial Voltage
R S T
61F-GP-N
Automatic Drainage Control
Connections
Commercial Voltage
R S T
61F-GP-N
8
MCCB
0V
7
U
24 V
8
V
6
5
4
MCCB
8
7
U
0V
24 V
8
V
6
5
4
Control
circuit
U
Control
circuit
U
Power
supply
Power
supply
U
U
3
10
11
1
9
2
3
10
11
1
9
2
Contac-
tor
(See note.)
PS-3S
Contac-
tor
(See note.)
Motor
protection
relay
Stop
Water
supply
source
Water
tank
E
1
E
3
E
2
Start
Motor
protection
relay
M
P
M
PS-3S
Waste-
water
tank
P
Start
E
1
E
3
E
2
Stop
Reservoir
Note: Be sure to ground the common Electrode E
3
(the
longest Electrode).
Connection Sockets
PF113A (Front-connecting)
PL11 (Rear-connecting)
Connect terminal 1 to the contactor’s coil terminal.
Note:
The power supply depends on the specifications of the
model.
Note: Be sure to ground the common Electrode E
3
(the
longest Electrode).
Connection Sockets
PF113A (Front-connecting)
PL11 (Rear-connecting)
Connect terminal 1 to the contactor’s coil terminal.
Note:
The power supply depends on the specifications of the
model.
Principles of Operation
Principles of Operation
Water
supply
P
Pump OFF
E
1
(Indicator ON)
Pump ON
E
1
(Indicator ON)
Pump ON
E
2
E
3
(Indicator OFF)
Pump OFF
E
2
E
3
(Indicator OFF)
P
Water
drainage
The pump stops when the water level reaches E
1
(indicator ON)
and starts when the water level drops below E
2
(indicator OFF).
The pump starts when the water level reaches E
1
(indicator ON)
and stops when the water level drops below E
2
(indicator OFF).
4
61F-GP-N@
Liquid Level Indication
(Connection Example)
Compact, Plug-in Type
61F-GP-N
Dimensions:
page 14

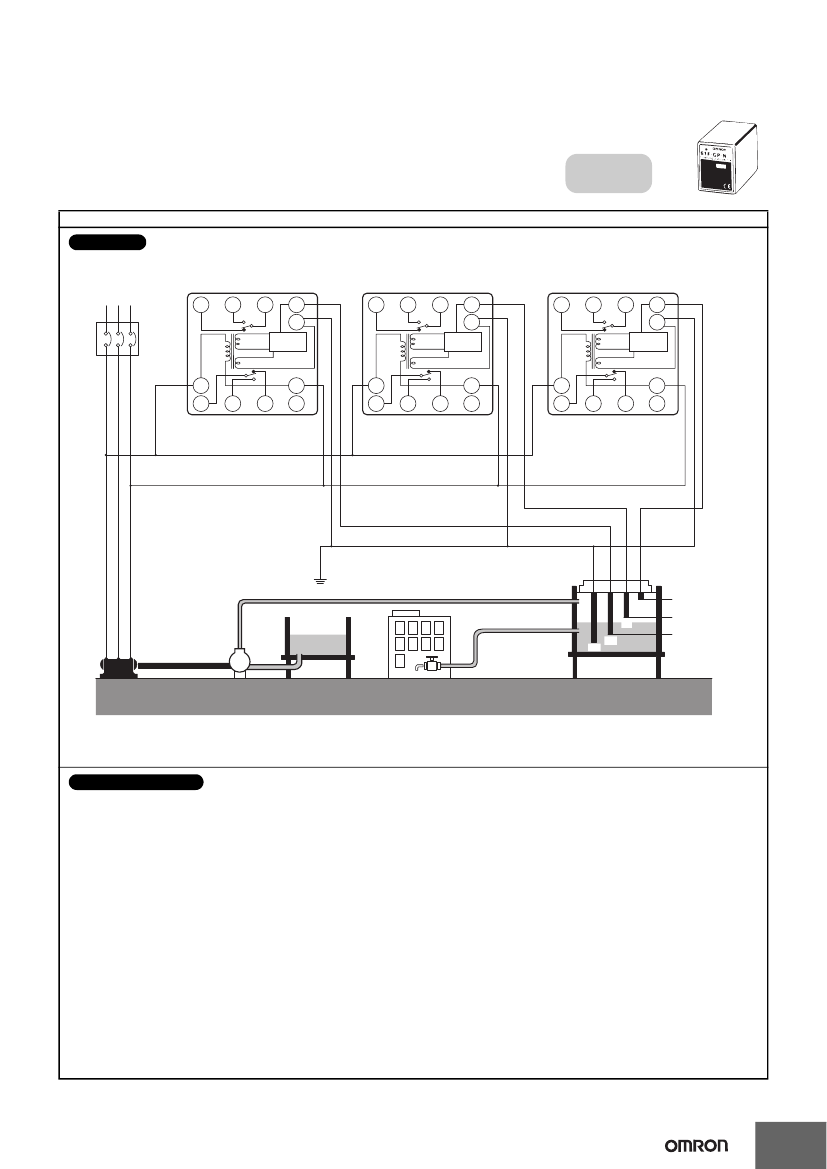

Liquid Level Indication
Connections
Lower limit
Commercial Voltage
R S T
61F-GP-N
Intermediate
61F-GP-N
Upper limit
61F-GP-N
8
0V
Power
supply
7
U
24 V
8
V
6
5
4
Control U
circuit
8
0V
Power
supply
7
U
24 V
8
V
6
5
4
Control U
circuit
8
0V
Power
supply
7
U
24 V
8
V
6
5
4
Control
circuit U
MCCB
U
3
10
11
1
9
2
U
3
10
11
1
9
2
U
3
10
11
1
9
2
(See note.)
PS-4S
E
1
Upper limit
Intermediate
Lower limit
Water
supply
source
M
P
Water
tank
E
4
E
3
E
2
Note:
The power supply phases (terminals 3 to 9) can be matched to use the same ground for the
common Electrode (the longest Electrode, terminal 4).
Principles of Operation
•
Terminals 6 and 7, and terminals 10 and 11 on the lower -limit 61F-GP-N are shorted when the water level reaches E
3
(indicator ON).
•
Terminals 6 and 7, and terminals 10 and 11 on the intermediate 61F-GP-N are shorted when the water level reaches E
2
(indicator ON).
•
Terminals 6 and 7, and terminals 10 and 11 on the upper-limit 61F-GP-N are shorted when the water level reaches E
1
(indicator ON).
5
