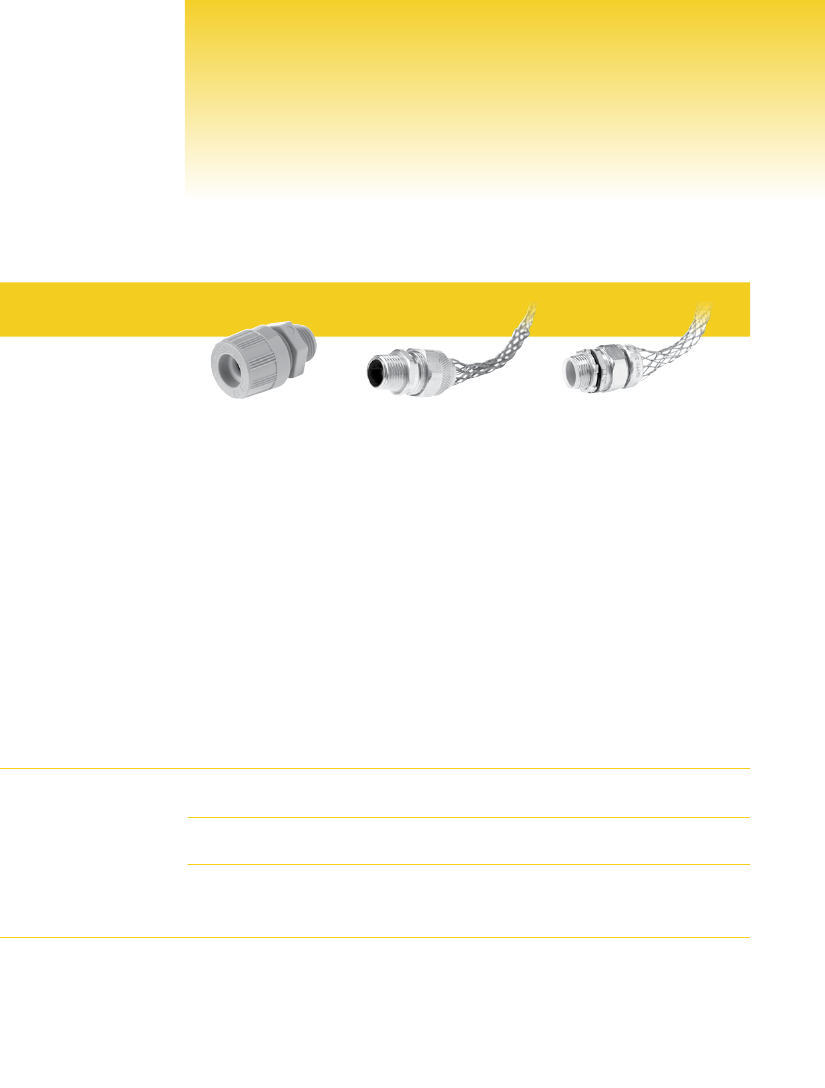

STRAIN-RELIEF GRIPS
WOODHEAD
®
HEAVY-DUTY GRIPS PROVIDE STRAIN RELIEF FOR CORDS
AND
STATIONS, ENCLOSURES, AND PENDANT OR HANGING BOXES USED ON
TRIAL APPLICATIONS
FLEXIBLE
CONDUIT
ON
PLUGS,
CONNECTORS,
PUSH-BUTTON
PORTABLE EQUIPMENT FOR COMMERCIAL, INSTITUTIONAL AND INDUS-
Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal perfor-
mance . Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help
to prevent pullout . Woodhead offers a solution for both standard and wet-location environments
to ensure maximum life . Deluxe cord grips feature an aluminum body integrated with a stain-
less steel mesh . Non-metallic Max-Loc
®
grips are available with an O-ring and stainless steel or
non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire
mesh assemblies offer the greatest impact and chemical resistance to be applied in food
processing, dairy, aerospace and clean room environments .
FEATURES AND
BENEFITS
Full-diameter cord range
Threaded-style bodies available in
stainless steel and non-metallic
Threaded-style bodies available
in a full range of sizes
Allows grips for any cord size for
customer convenience
Ensures environmental compatibility
Provides customer product flexibility
APPLICATIONS
• Electricians
• HVAC contractors
• Irrigation equipment
• Panel builders
Strain Relief
Dust-Tight, Wide Range
Aluminum Body
Galvanized Steel Mesh
Straight Male
Insulated Bushing
Features and Benefits
•
Wide diameter range and general purpose character
accommodate many applications including electrical
boxes and enclosures, machine tools and bus drops
•
Galvanized Steel mesh construction provides great
strength
•
Insulated throat provides conductor protection upon
flexing and wire entry/exit
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body: Aluminum
Nut: Zinc-plated Steel
Mesh Collar: Zinc-plated Steel and Aluminum
Dust Seal Gasket: Neoprene
Mesh Material: Galvanized Steel
Insulating bushing: Thermoplastic
Weave Type: Single weave mesh
Environmental
Rating: Dust-tight, general purpose
C
Grips
Thread Size
½" NPT
½" NPT
½" NPT
¾" NPT
1" NPT
1¼" NPT
1½" NPT
2" NPT
2½" NPT
2½" NPT
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–13.72mm (.40–.54")
13.21–18.54mm (.52–.73")
17.78–24.64mm (.70–.97")
23.88–31.75mm (.94–1.25")
30.48–38.10mm (1.20–1.50")
35.56–44.45mm (1.40–1.75")
41.15–50.80mm (1.62–2.00")
50.80–62.23mm (2.00–2.45")
Mesh Length
0.083m 3.250"
0.095m 3.750"
0.121m 4.750"
0.146m 5.750"
0.178m 7.000"
0.229m 9.000"
0.298m 11.750"
0.337m 13.250"
0.343m 13.500"
0.349m 13.750"
Woodhead No.
36501
36503
36505
36508
36512
36515
36516
36517
36518
36519
Order No.
130097-0256
130097-0258
130097-0260
130097-0262
130097-0265
130097-0269
130097-0271
130097-0272
130097-0273
130097-0274
www.molex.com/woodhead
C-5

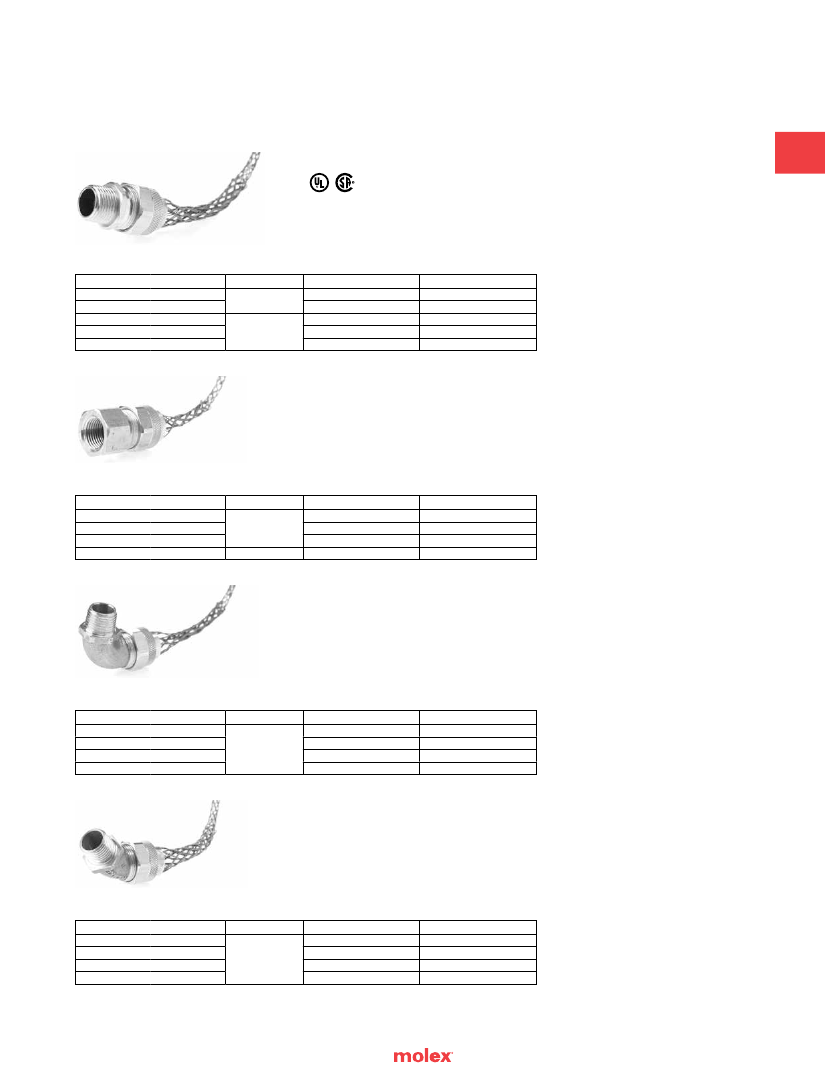

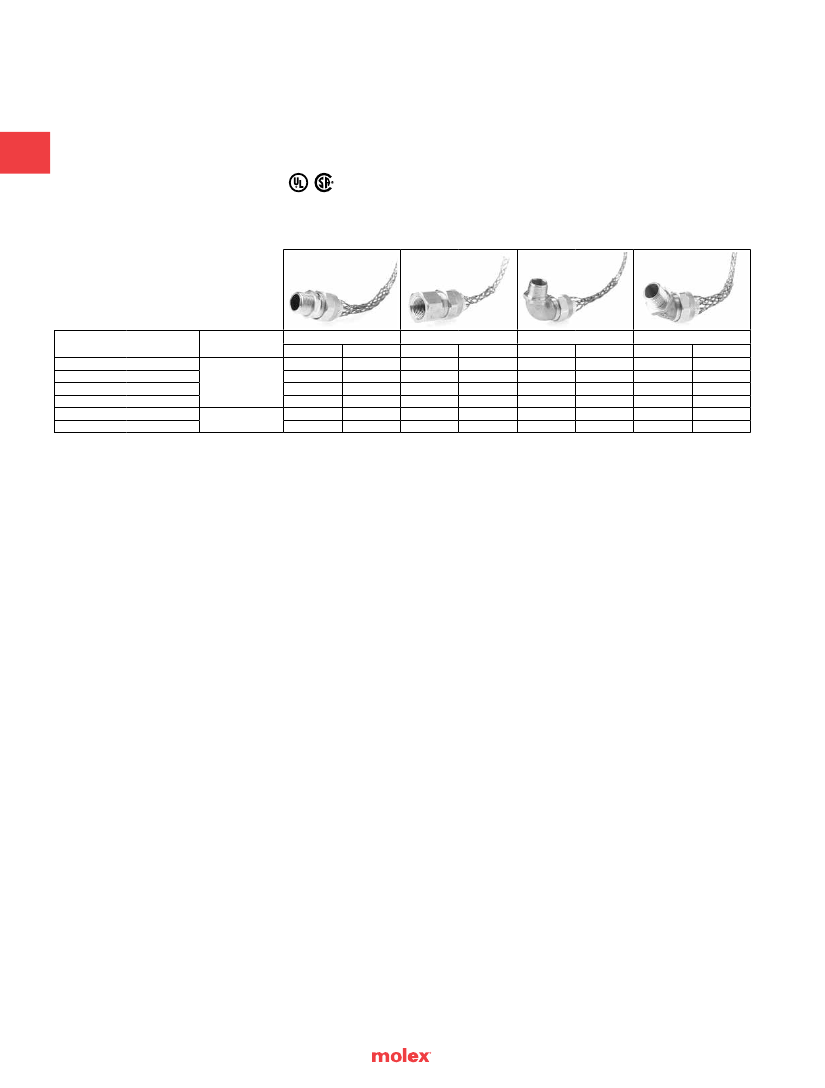

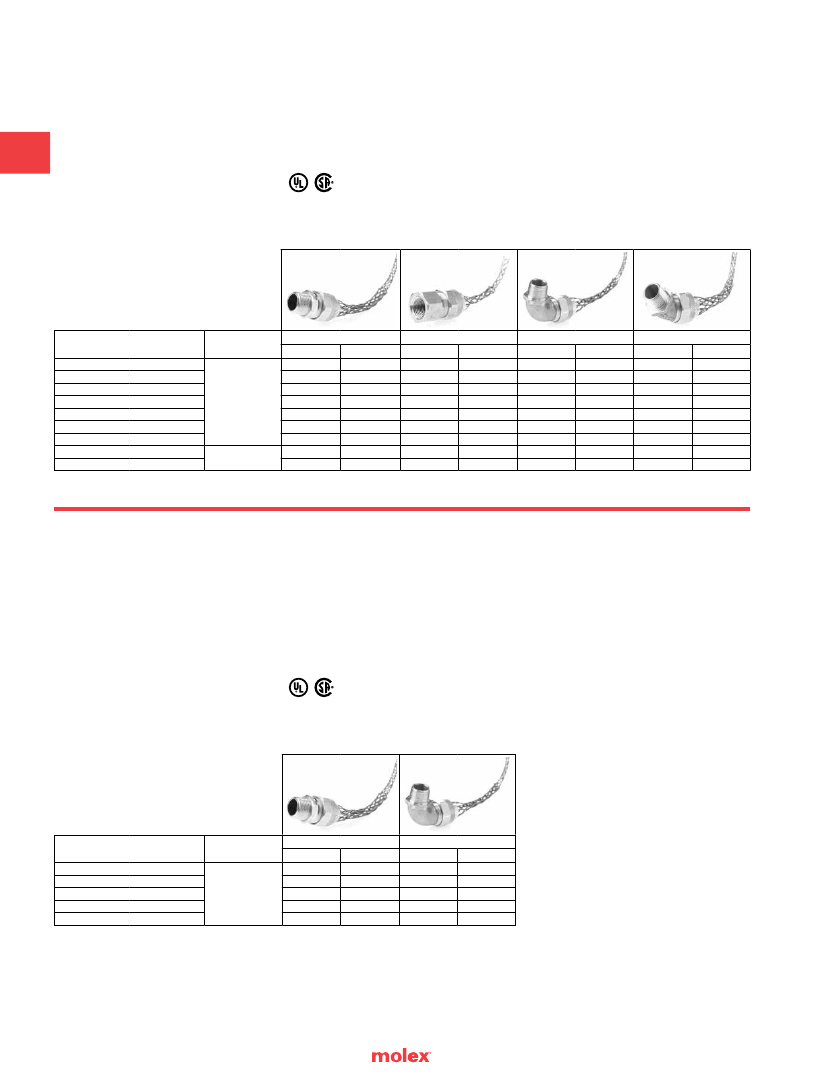

Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
½" NPT
Features and Benefits
•
Aluminum/Stainless Steel material construction
performs well to resist corrosion
•
50% double weave construction improves cable
protection and pull-out resistance
•
Robust design good for indoor and outdoor use
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
C
Grips
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–12.70mm
12.70–15.88mm
15.88–19.05mm
19.05–22.23mm
(.187–.250")
(.250–.375")
(.375–.500")
(.500–.625")
(.625–.750")
(.750–.875")
Form Size
Straight Male
Woodhead No.
36250
36251
36254
36256
36245
36246
Order No.
130097-0160
130097-0161
130097-0163
130097-0165
130097-0156
130097-0157
Straight Female
Woodhead No.
36280
36282
36284
36286
Order No.
130097-0184
130097-0185
130097-0186
130097-0187
Right Angle Male
Woodhead No.
36340
36342
36344
36346
Order No.
130097-0210
130097-0211
130097-0212
130097-0213
45° Angle Male
Woodhead No.
36310
36312
36314
36316
Order No.
130097-0197
130097-0198
130097-0199
130097-0200
F2
F3
Note: See Technical Section for compnent details
C-6
www.molex.com/woodhead
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
¾" NPT
Features and Benefits
•
Aluminum/Stainless Steel material construction
performs well to resist corrosion
•
50% double weave construction improves cable
protection and pull-out resistance
•
Robust design good for indoor and outdoor use
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
C
Grips
Straight Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
19.05–22.23mm (.750–.875")
Form Size
F2
F3
Woodhead No.
36257
36259
36261
36263
36248
Order No.
130097-0166
130097-0167
130097-0168
130097-0170
130097-0158
Straight Female
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.93–19.05mm (.627–.750")
Form Size
F2
F3
Woodhead No.
36290
36292
36294
36296
Order No.
130097-0191
130097-0627
130097-0192
130097-0496
Right Angle Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
Form Size
F3
Woodhead No.
36347
36349
36351
36353
Order No.
130097-0214
130097-0215
130097-0216
130097-0217
45° Angle Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
Form Size
F3
Woodhead No.
36317
36319
36321
36323
Order No.
130097-0201
130097-0202
130097-0203
130097-0204
Note: See Technical Section for compnent details
www.molex.com/woodhead
C-7
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
1" NPT
Features and Benefits
•
Aluminum/Stainless Steel material construction
performs well to resist corrosion
•
50% double weave construction improves cable
protection and pull-out resistance
•
Robust design good for indoor and outdoor use
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
C
Grips
Cable Diameter
11.10–14.27mm
11.10–14.40mm
14.27–17.45mm
14.40–17.45mm
15.88–19.05mm
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
(.437–.562")
(.437–.567")
(.562–.687")
(.567–.687")
(.625–.750")
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
Form Size
Straight Male
Woodhead No.
36249
Order No.
130097-0159
130097-0179
130097-0171
130097-0172
130097-0173
130097-0174
130097-0180
Straight Female
Woodhead No.
36818
36819
36298
36300
36302
Order No.
130097-0293
Right Angle Male
Woodhead No.
36829
36830
Order No.
130097-0295
130097-0296
130097-0218
130097-0219
130097-0220
45° Angle Male
Woodhead No.
36826
36827
36326
36328
36330
Order No.
130097-0629
130097-0294
130097-0205
130097-0206
130097-0207
F4
F5
36275
36265
36267
36269
36270
36276
130097-0628
130097-0193
130097-0194
130097-0195
36355
36357
36359
Note: See Technical Section for compnent details
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
1¼" NPT
Features and Benefits
•
Aluminum/Stainless Steel material construction
performs well to resist corrosion
•
50% double weave construction improves cable
protection and pull-out resistance
•
Robust design good for indoor and outdoor use
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Cable Diameter
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
31.75–34.93mm
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
(1.250–1.375")
Form Size
Straight Male
Woodhead No.
36277
36271
36272
36273
36274
Order No.
130097-0181
130097-0175
130097-0176
130097-0177
130097-0178
Right Angle Male
Woodhead No.
36831
36361
36362
36363
36364
Order No.
130097-0297
130097-0221
130097-0222
130097-0223
130097-0224
F5
Note: See Technical Section for compnent details
C-8
www.molex.com/woodhead
