3M
Pak 100 PCB
.100″
×
.100″ Two Row
994 Series
S
Fits standard .100″
×
.100″ header layout
S
Uses less board area then 4-
-row design
S
Preassembled cover for fast termination
Date Modified: April 29, 2004
TS-2100-01
Sheet 1 of 3
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
U-
-Slot and Solder Tails:
Wire Accommodation:
Marking:
Glass Filled Thermoplastic
UL 94V-0
Black
Copper Alloy
50-90
µ″
[1.25-2.25
µm]
Nickel
100-200
µ″
[2.5-5.0
µm]
[90/10] Tin-Lead
28 AWG Stranded, PVC insulation, Gray or color-coded construction
3M logo
Electrical
Current Rating:
1.0 A
Insulation Resistance:
>1,000
ΜΩ
min. at 500 VDC
Withstanding Voltage
650 VAC for 1 minute
Environmental
Temperature Rating:
-
-55°C to +105°C
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Pak 100 PCB
.100″
×
.100″ Two Row
994 Series

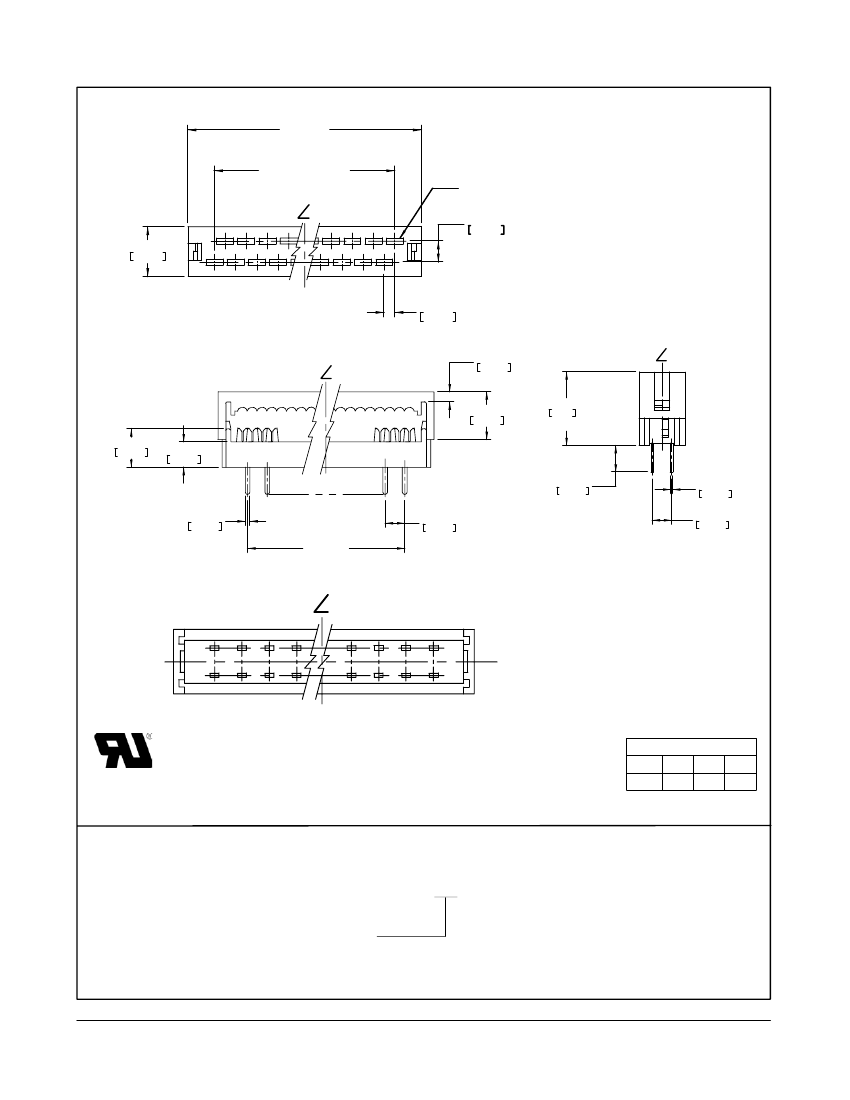

DIM. "A"
DIM. "C" (BSC.)
POS. #1
C
.236
6.00
.100
2.54
.050
1.27
.051
1.30
.382 *
9.7
BEFORE ASS'Y
C
C
.244
6.20
.197
5.00
.130
3.30
.138
3.50
.012
0.30
.100
2.54
.024
0.60
DIM. "B"
.100
2.54
* AFTER ASS'Y .244 [6.20]
C
Inch
[mm]
Tolerance Unless Noted
.0
Notes:
1. Use locator plate 3443-101R
2. Locator plate 3443-101M requires installation of modification kit to assemble product
.00
.000
Inch
[
±
.1
±
.01
±
.005
] Dimensions for
Reference Only
Ordering Information
994XX-0016T
Pin Quantity
See table
TS--2100--01
Sheet 2 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
