CPA-4-2002

Amplifier

2 GHz - 4 GHz

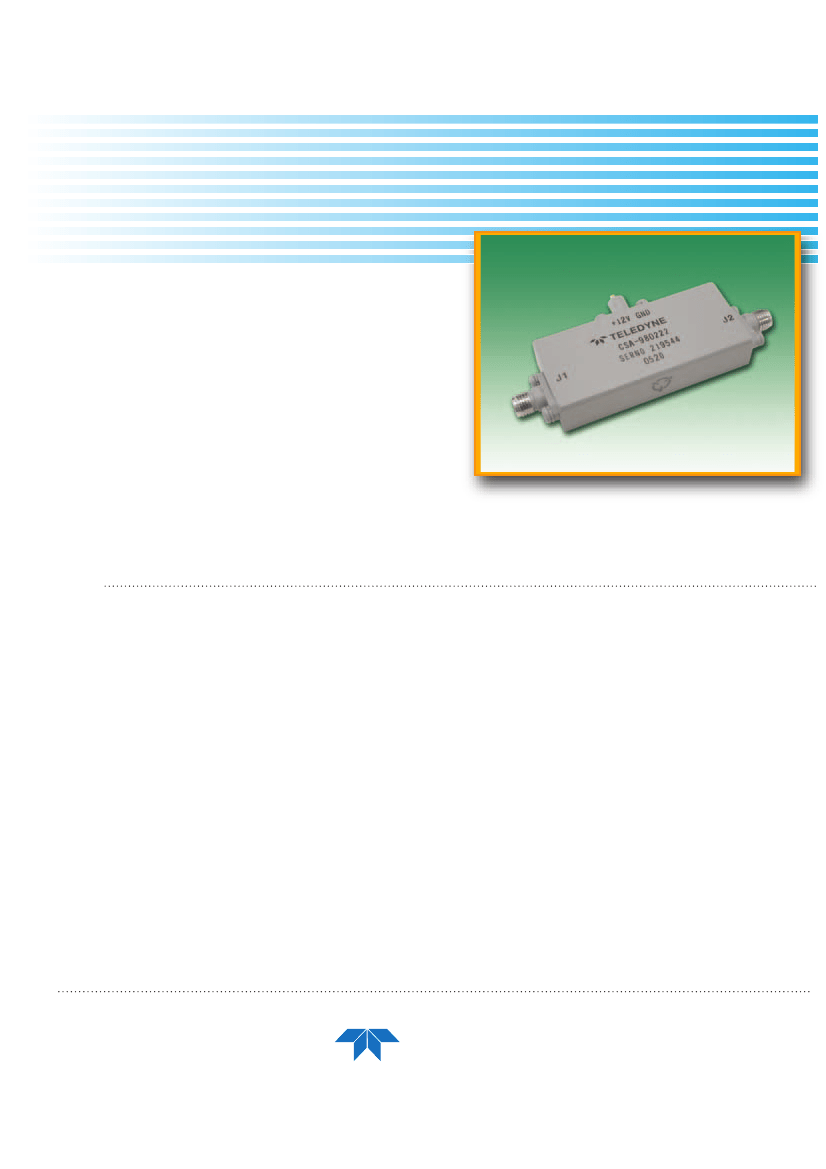

This Amplifier offers exceptional performance over the band 2

GHz to 4 GHz with 23 dBm P1dB output power and 19 dB

Gain.

Teledyne Microwave amplifiers are balanced or feedback

designs and manufactured with the latest MIC & MMIC

technology. The GaAs FET’s used in these amplifiers are well

established proven devices from multiple sources.

Teledyne Microwave offers a complete line of Narrow and

broadband Amplifiers covering the frequency range 500 MHz

to 40 GHz. These products are available in either

connectorized packages or as modules. For a complete list of

these products and more, please visit our website.

Other products from Teledyne Microwave

Transceivers, Synthesizers, and YIG Products

include:

Specifications:

Model Number:

CPA-4-2002

Frequency Range:

2 GHz - 4 GHz

19 dB

Gain (min):

Gain Vs Temp at any Frequency: This Amplifier is not Temperature Compensated

Noise Figure (max):

5.5 dB

23 dBm

Output Power @ 1dB Compression:

Gain Flatness Vs Frequency:

+/-1.5 dB

Order Intercept (Typ):

32 dBm

Power Supply:

Input Voltage: 11.5 to 15 VDC

260 mA

Current @ 12 VDC (typ):

Current @ 12 VDC (max):

280 mA

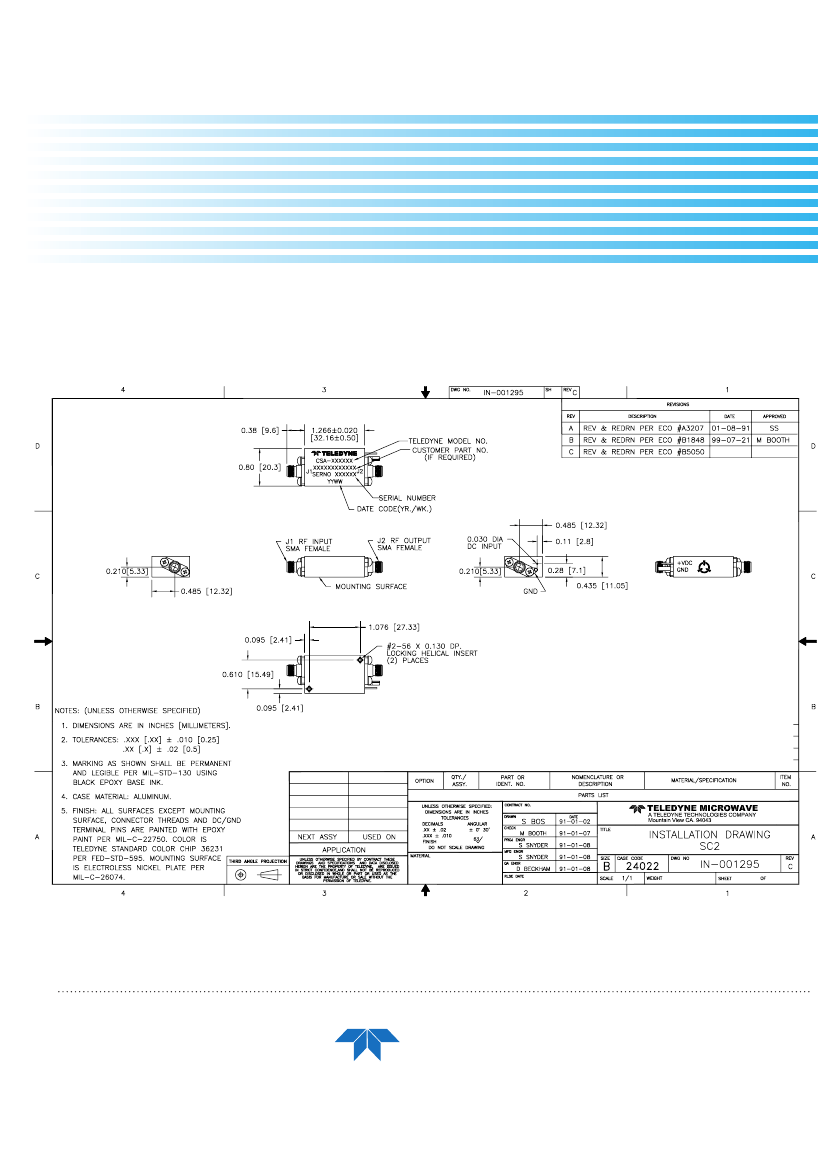

Case Type (See attached Outline):

SC2

Temperature Range:

+25C

TELEDYNE

MICROWAVE

ISO 9001:2000

1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845

www.teledynemicrowave.com • microwave@teledyne.com

All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product

08/05
