8627-18B Overview

CHOKE Power Chokes

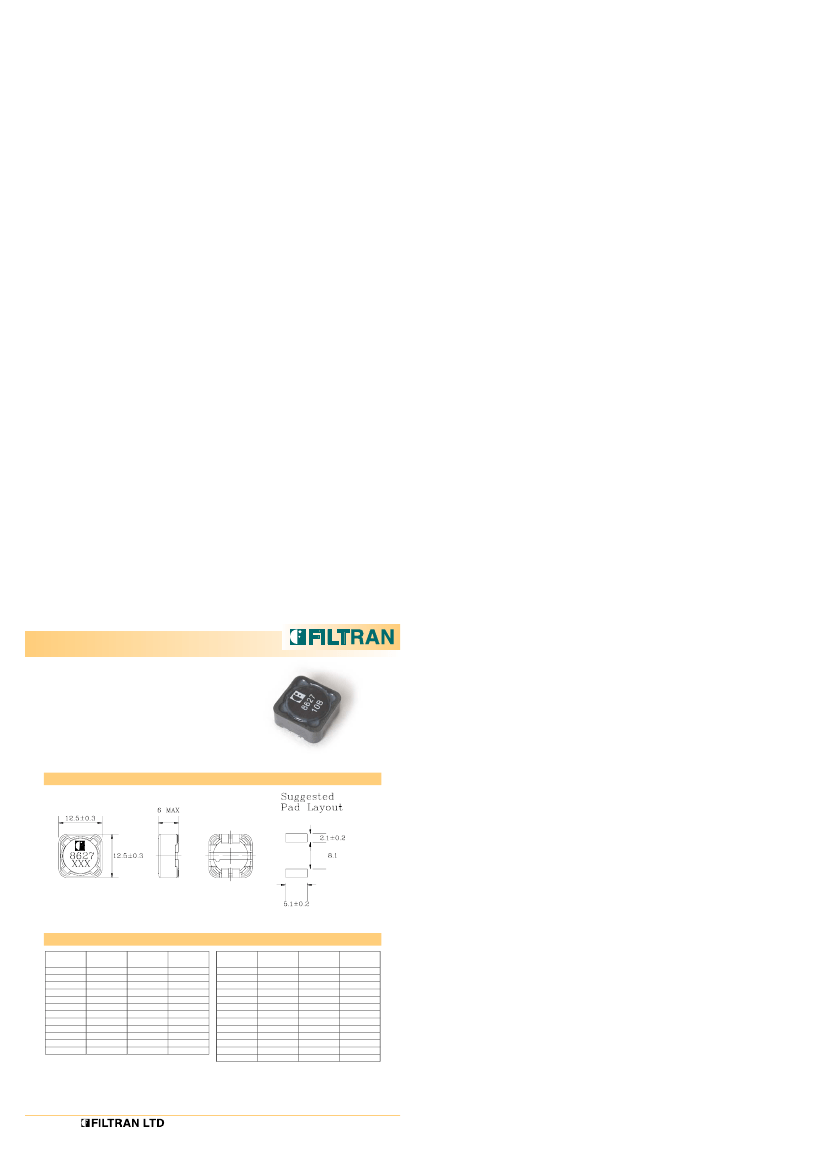

CHOKE
Power Chokes
8627-XXX
The 8627 series of SMD chokes is designed to cover an inductance range from
10µH to 1000µH with rated saturation currents from 0.40A to 4.00A. These are
ideally suited for applications where shielding is required.
• DC/DC converters
• LCD displays
• PDA Palm Tops
• Telecommunication equipment etc.
Mechanical
(All dimensions in millimeters)
ELECTRICAL SPECIFICATION @ 25˚C
Part
Number
8627-10B
8627-12B
8627-15B
8627-18B
8627-22B
8627-27B
8627-33B
8627-39B
8627-47B
8627-56B
8627-68B
8627-82B
Inductance
(µ H)
10
12
15
18
22
27
33
39
47
56
68
82
DCR
(Ω MAX)
25m
27m
30m
34m
36m
51m
57m
68m
75m
0.11
0.12
0.14
Rated DC
Current (A)
4.00
3.50
3.30
3.00
2.80
2.30
2.10
2.00
1.80
1.70
1.50
1.40
Part
Number
8627-10C
8627-12C
8627-15C
8627-18C
8627-22C
8627-27C
8627-33C
8627-39C
8627-47C
8627-56C
8627-68C
8627-82C
8627-10D
Inductance
(µH)
100
120
150
180
220
270
330
390
470
560
680
820
1000
DCR
(Ω MAX)
0.16
0.17
0.23
0.29
0.40
0.46
0.51
0.69
0.77
0.86
1.20
1.34
1.53
Rated DC
Current (A)
1.30
1.10
1.00
0.90
0.80
0.75
0.68
0.65
0.58
0.54
0.48
0.43
0.40
ISSUE: D
20/08/01
8627
An ISO 9001 Registered Company
229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3
Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com
